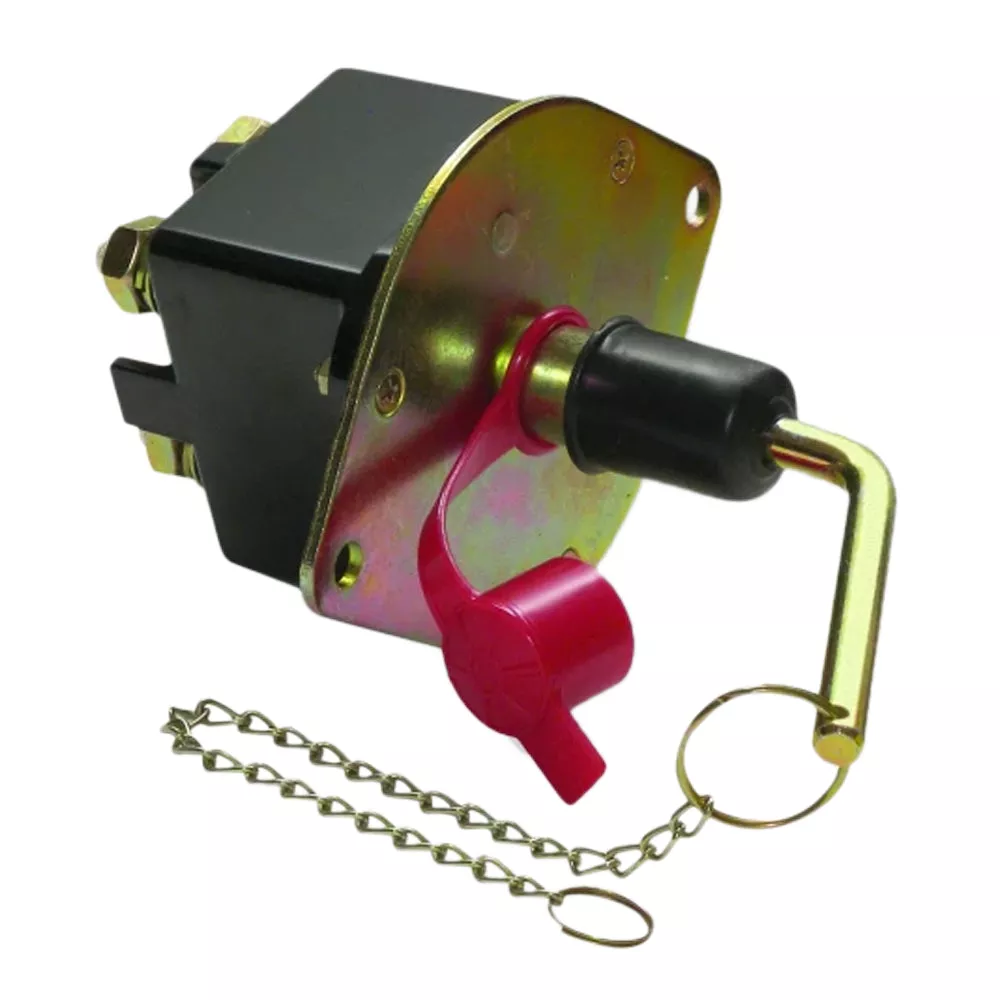

Battery Doctor Heavy Duty Disconnect Switch
Heavy-Duty Dual Battery Disconnect Switch Key turns 90 degrees to instantly connect or disconnect dual batteries.
– Engages or Disconnects Two Batteries Simultaneously
– Rated 250 Amps Continuous, 2500 Amps Surge, at 12 Volts for 5 Seconds
– Two 1/2″ Diameter Mounting Holes on 4″ Centers
– Key is Captive in “On” Position and Removable in “Off” Position
– Weather-Resistant Cover and 1 Key Included
– 5-1/2″ L x 4-1/8″ W x 5″ D (3″ Deep Behind Panel)
– Four 10mm Threaded Studs with Nuts
– For use on Negative Battery Cables
