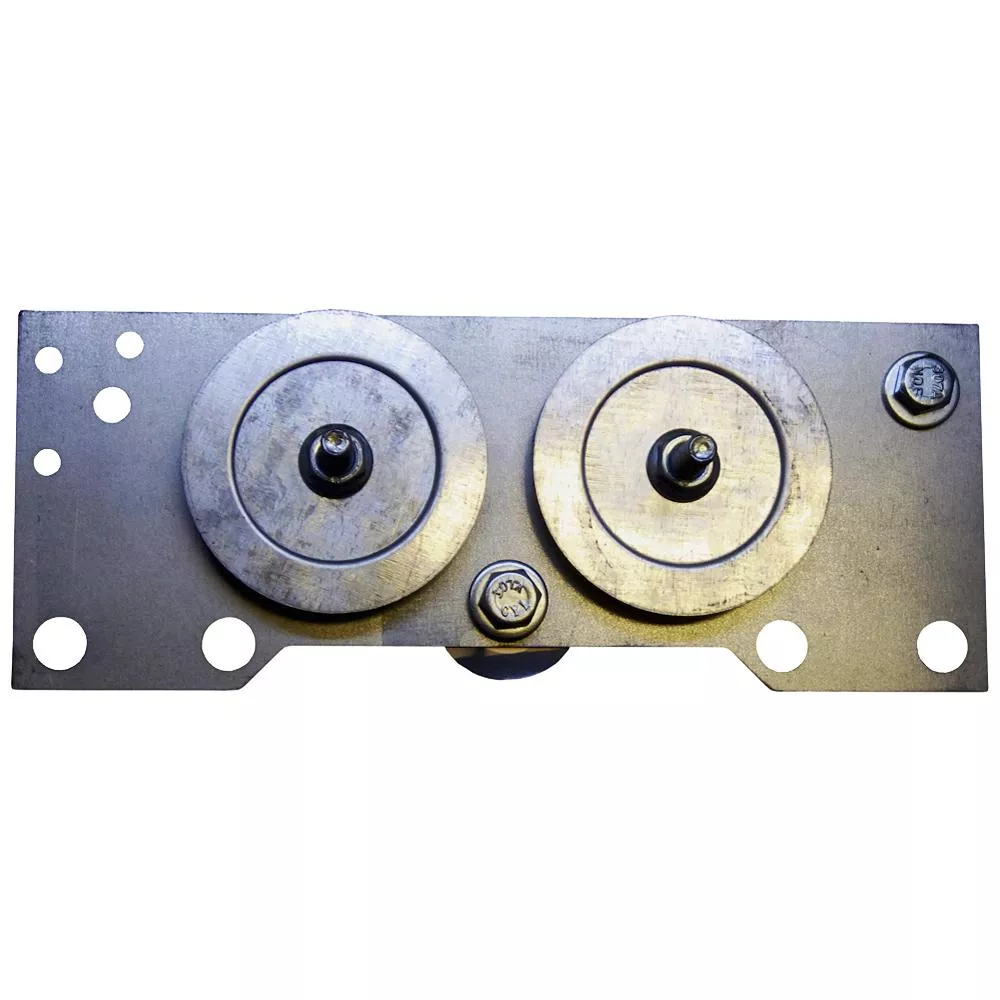

Our Heaviest-Duty Compact Rectifier. Designed for use in chargers with continuous-duty output ratings up to 100 Amps,and “Boost” ratings up to 600 Amps!
This rectifier is a high capacity, 20-diode replacement for Associated P/N 610364, used in Associated Eqpt charger models 6008, 6009B, 6010A, 6010B, 6012, 6014, 6021, 6006, 6065, Cornwell ADS240FC, Cornwell ADS6012CW, Mac BCH7109, Mac BCH7115, MATCO MC500, Snap-On YA165A, Snap-On YA167A, Snap-On YA167B, and others.
Excellent replacement for selenium rectifiers found in older or vintage battery chargers.
Features
Fully assembled and tested.
Dual diode assemblies, each with an array of 10 diodes, for a total of 20 diodes. Redundant capacity is designed in – if individual diodes fail, load is shifted to remaining functional diodes.
Robust capacity makes this the perfect replacement rectifier for a wide variety of high-output battery chargers, especially those with high “boost” ratings.
Straightforward, compact design makes it an easy retro-fit in almost any charger with a “positive base” rectifier – those chargers with the positive DC lead/clamp assembly connected to the rectifier heat sink plate.
Note – For chargers with the negative lead/clamp assembly connected to the rectifier heat sink plate, use rectifier number 696605(i.e. – Solar & Century brand chargers).
Full-wave rectification.
Includes Resistor Kit – for Associated chargers equipped with “Stop/Go Lite” polarity protection technology. If your charger does not have this feature, do not install the resistor.
Equipped with center-mounted, insulated mounting bolt – for direct mount in retro-fit applications with Rectifier Mounting Bracket Kit 696627.
Specifications
Dual 10 x 50A/400PRV 10MM button diode arrays (20 diodes total)
Each diode connects to the array via an independent, fusible link.
Depth: 1.65″ (Including central mounting bolt: 2.65″)
Height: 3.00″
Width: 7.75″
Weight (lbs): 1.00
