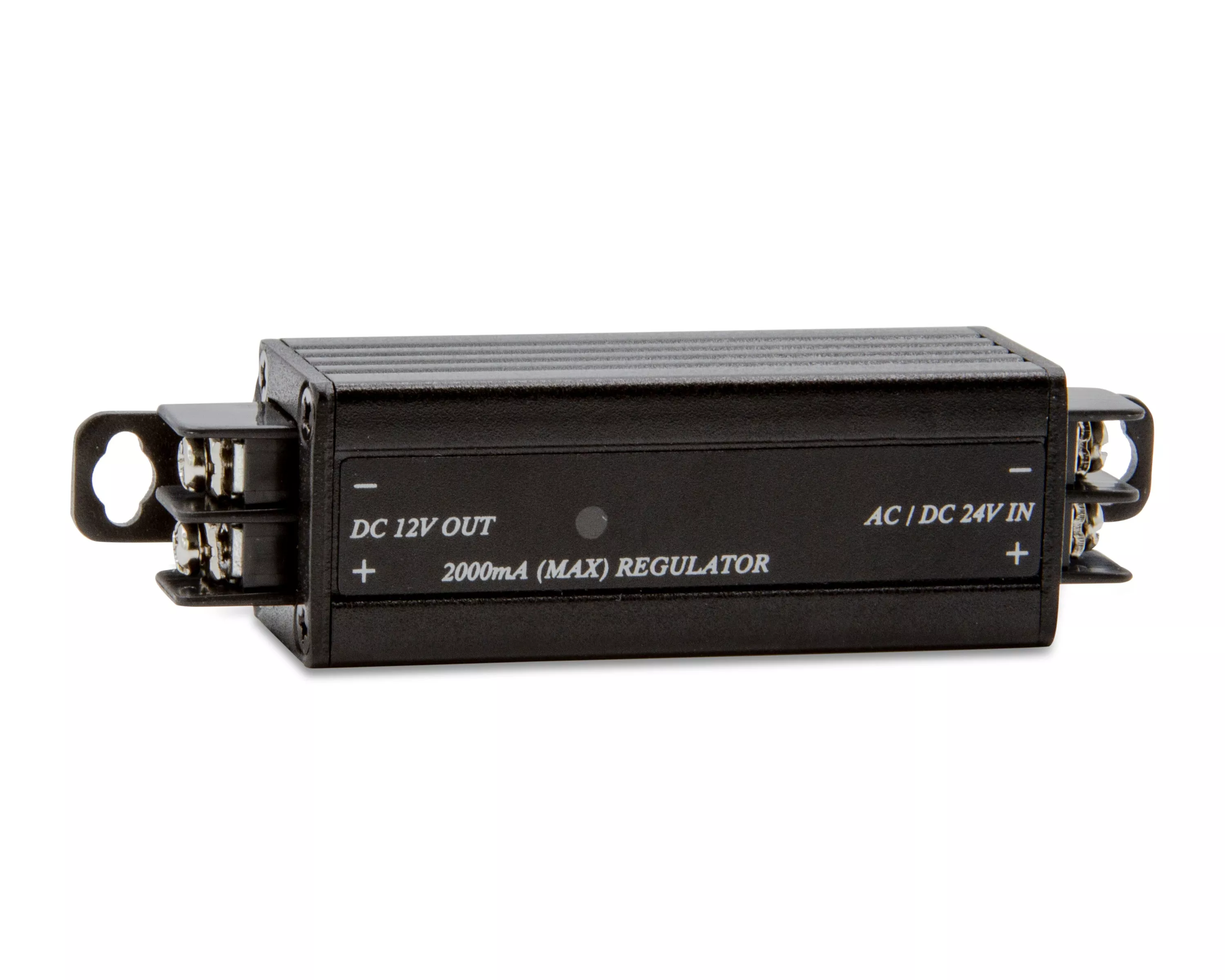

The Triplett Model CON-24V-12V converts an AC or DC source to a regulated DC 12V 2A output to provide power to security cameras. It supports AC 18V to 26V or DC 18V to 36V power input and features 2-pin terminal blocks at both ends for input and output connections. A green LED indicates power is on
DESCRIPTION
The Triplett Model CON-24V-12V converts an AC or DC source to a regulated DC 12V 2A output to provide power to security cameras. It supports AC 18V to 26V or DC 18V to 36V power input and features 2-pin terminal blocks at both ends for input and output connections. A green LED indicates power is on
CATEGORY: POWER SUPPLIES
Features
- Allows DC powered cameras to be powered by AC or DC source
- Converts AC/DC to DC 12V 2A
- Supports AC 18V to 26V or DC 18V to 36V power input
- Built-in 2-pin terminal block at both ends
Features
| CON-24V-12V | |
| Input Voltage | AC 18V to 26V or DC 18V to 36V |
| Output Voltage | 12VDC Regulated |
| Output Current | 2A (2000mA max) |
| Input Port | 2-pin Terminal Block |
| Output Port | ‘2-pin Terminal Block |
| Power On Indicator | Green LED |
| Dimensions | 4 x 1 x 1″ (102.8 x 25.4 x 25.4mm) |
| Weight | 3oz (75g) |
