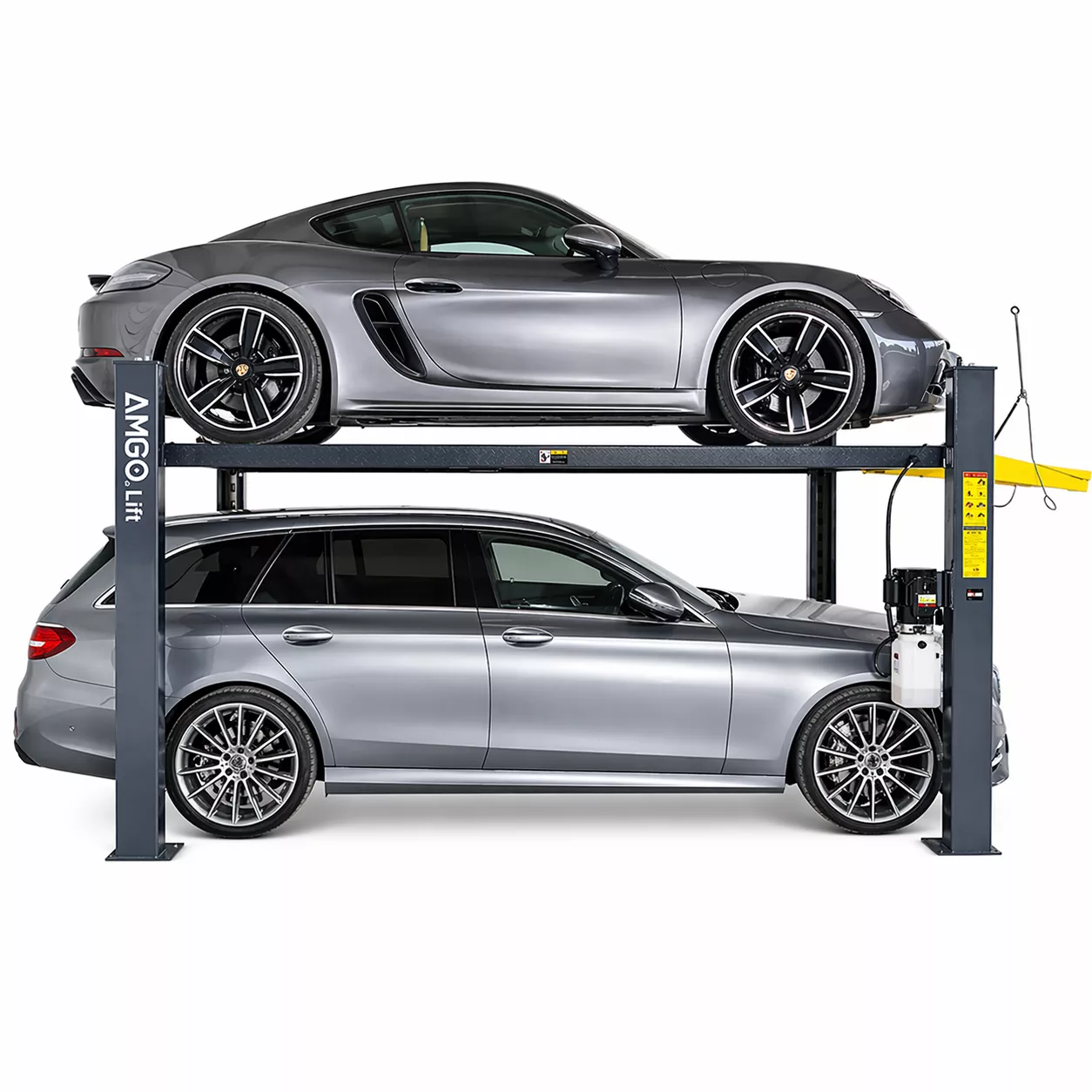

The AMGO 408-HP is a high-profile four-post parking lift designed for increased vertical clearance, making it ideal for stacking SUVs, trucks, and larger vehicles without tight spacing. With an 8,000 lb lifting capacity and extended height over the standard model, it delivers a reliable and space-efficient solution for both residential and commercial garages.
Key Features & Benefits
- 8,000 lb lifting capacity
- High-profile design with additional lifting height for taller vehicles
- AMGO ETL-certified power unit included
- Single-cylinder hydraulic system with cable synchronization
- Patented concealed safety lock system with single-point manual release
- Dual safety system: mechanical locks and cable slack protection
- Heavy-duty double-shaped columns for added structural strength
- Non-slip diamond plate runways for secure traction
- Foldable drive-on ramps included
- Supports back-to-back installation to maximize space
- Power column can be installed at multiple positions
- Wider drive-through area and longer runways for larger vehicles
Safety & Performance
The 408-HP is equipped with both primary mechanical safety locks and a secondary cable protection system, ensuring vehicles remain secure at all lift positions. The single-point release system allows controlled lowering, improving both safety and ease of operation. The hydraulic system is engineered for consistent lifting performance while minimizing maintenance requirements.
Ideal Applications
- Residential garage vehicle stacking
- Commercial parking and storage
- Auto shops and detailing bays
- Dealership overflow storage
Installation Requirements
- Indoor installation recommended
- Minimum concrete: 4″ thickness, 3,000 PSI
- Level surface required (no slope)
- Professional installation strongly recommended
Why Choose the 408-HP
The 408-HP stands out with its increased lifting height, durable construction, and flexible installation options, making it a strong choice for users who need more clearance without stepping up to a larger commercial lift.
| Specifications | Details |
|---|---|
| Model | 408-HP |
| Lift Type | Four-Post Parking Lift (High Profile) |
| Lifting Capacity | 8,000 lbs |
| Lifting Time | 98s (110V) / 46s (220V) |
| Overall Length (With Ramps) | 208 1/16″ |
| Overall Length (Without Ramps) | 174 5/8″ |
| Overall Width | 102 1/2″ |
| Width Between Posts | 92 7/8″ |
| Max Lifting Height | 87 1/2″ |
| Max Locking Height | 84 15/16″ |
| Overall Height | 96 5/8″ |
| Minimum Height | 5 11/16″ |
| Max Height Under Runway | 82 15/16″ |
| Max Lock Height Under Runway | 80 3/16″ |
| Drive-Thru Width | 81 5/8″ |
| Width Between Runways | 37″ |
| Outside Edge of Runways | 74 3/8″ |
| Motor | 1.0 HP (110V) / 2.0 HP (220V) |
