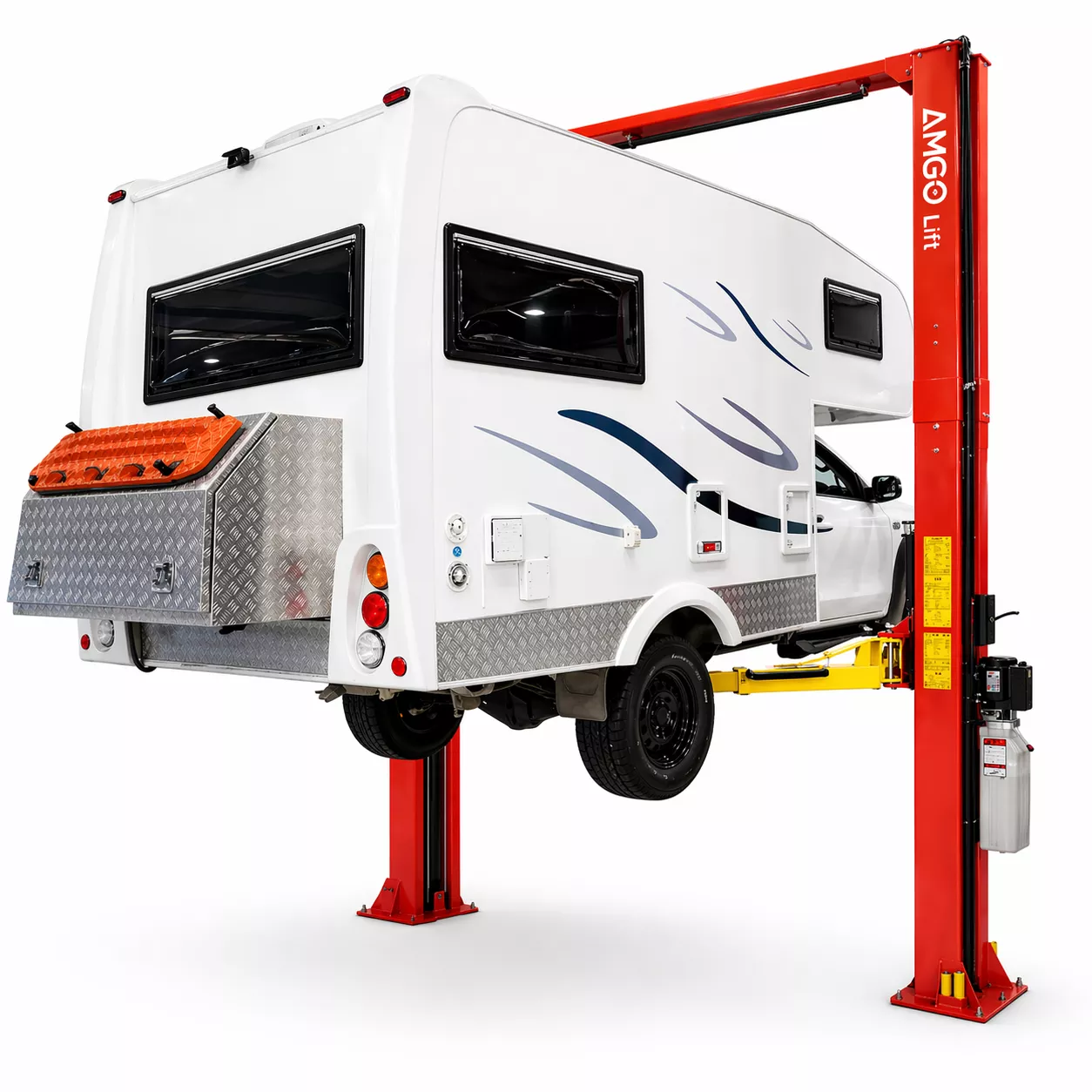

The AMGO OH-12S is a heavy-duty two-post lift engineered for shops with lower ceiling heights without sacrificing lifting performance. Designed with a clear-floor layout and AMGO’s adjustable height system, it maximizes usable space while maintaining the strength needed for daily service work. Built with direct-drive hydraulic cylinders and three-stage arms, the OH-12S delivers reliable lifting across a wide range of vehicles from compact cars to long-wheelbase trucks.
Key Features & Benefits
- 12,000 lb lifting capacity for light-duty to heavy-duty vehicles
- Direct-drive hydraulic system reduces wear and improves longevity
- Four 3-stage arms support short and long wheelbases
- Single-point safety lock release unlocks both columns from one side
- Clear-floor design provides full workspace access underneath
- Overhead shut-off bar prevents vehicle contact damage
- 3 adjustable height settings for low, medium, and taller ceilings
- Self-lubricating UHMW polyethylene sliders for smooth operation
- Automatic arm restraints for added lifting stability
- Aero sync cables included for balanced lifting
- Includes tool tray and toe guard
- Comes standard with rubber pads and 3″ & 6″ extension adapters
Built for Low Ceiling Shops
The OH-12S is specifically designed for garages with restricted ceiling heights (as low as ~12 ft), while still offering multiple configuration options to match your workspace.
- Low setting: fits tighter environments
- Medium setting: balanced setup
- High setting: for taller workspaces
Installation Requirements
- Minimum ceiling height: ~12 ft required
- Concrete thickness: Minimum 5 inches
- Concrete strength: 3,500 PSI
- Indoor installation only
What’s Included
- Dual hydraulic cylinder system
- Four 3-stage lifting arms
- Rubber lifting pads and saddle adapters
- 3″ and 6″ extension adapters
- Power unit
- Sync cables and safety lock system
- Tool tray and toe guards
Why This Lift Stands Out
Compared to standard 12K lifts, the OH-12S is built specifically for space efficiency and versatility. You’re not just getting lifting power you’re getting a system that adapts to your shop layout without compromising safety or performance.
| Specifications | Details |
|---|---|
| Model | OH-12S |
| Lift Type | Clear-Floor Two-Post Lift (Low Ceiling) |
| Lifting Capacity | 12,000 lbs |
| Lifting Time | 69 seconds |
| Max Lifting Height (Without Adapters) | 72 1/2″ 73 7/8″ |
| Max Lifting Height (With Adapters) | 81 9/16″ 82 7/8″ |
| Max Lock Height | Up to 80 15/16″ |
| Overall Height (Low) | 143 1/8″ |
| Overall Height (Medium) | 155 1/8″ |
| Overall Height (High) | 167 1/8″ |
| Overall Width | 150 3/4″ |
| Drive-Thru Clearance | 109 3/4″ |
| Width Between Columns | 123 1/2″ |
| Minimum Pad Height | 4 1/2″ |
| Motor | 2.0 HP, Single Phase |
Documents
- Manual
- Brochure
