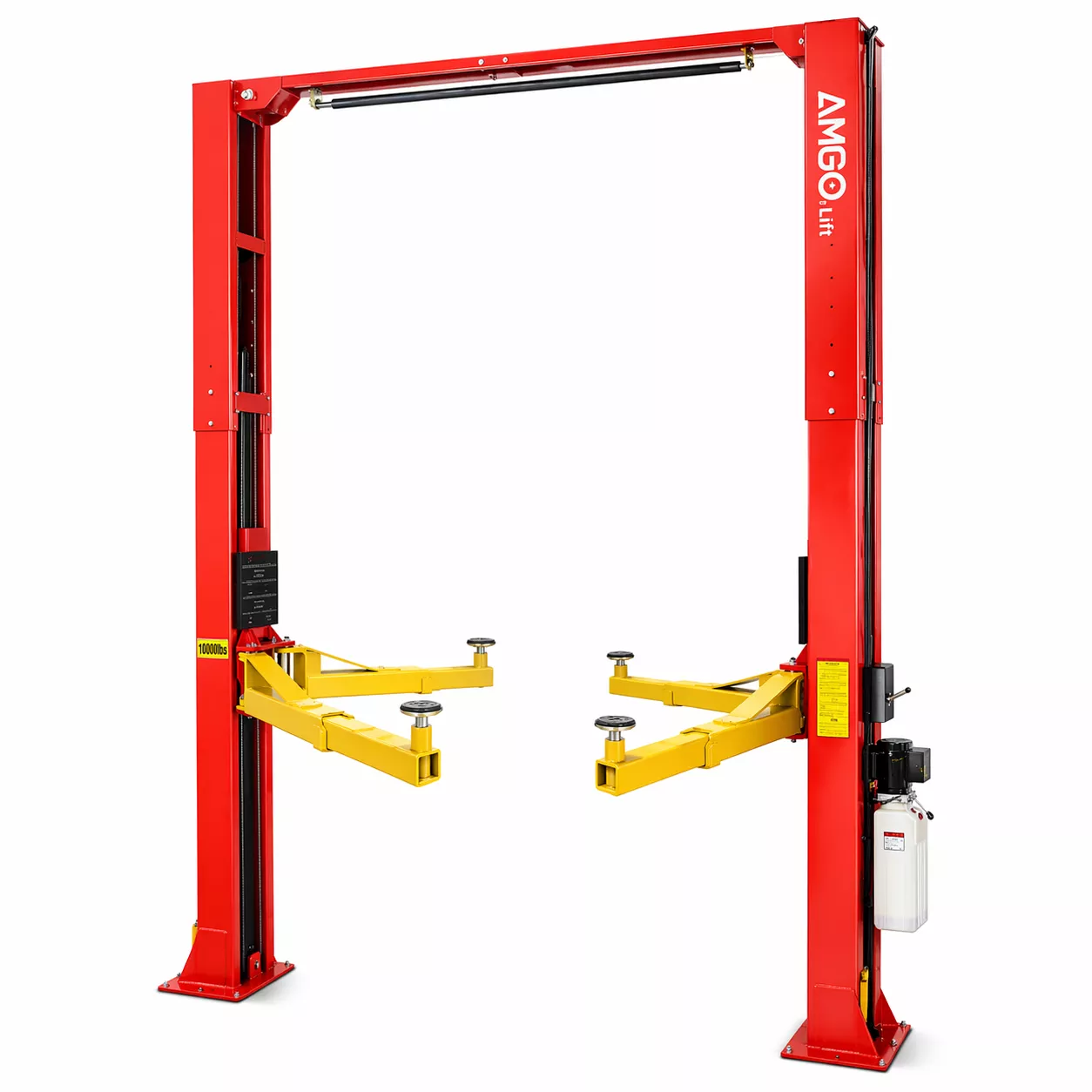

The AMGO OH-15 is a heavy-duty clear-floor two-post lift designed for shops handling larger vehicles, including vans, trucks, and commercial applications. Built with a reinforced structure and dual direct-drive hydraulic cylinders, it delivers consistent lifting power while maintaining stability under load. With AMGO’s 3-in-1 adjustable height system, this lift adapts to different ceiling heights, making it a flexible solution for a wide range of shop environments.
Key Features & Benefits
- 15,000 lb lifting capacity for heavy-duty service work
- Direct-drive hydraulic system reduces wear and maintenance points
- Dual hydraulic cylinders built to high manufacturing standards
- Clear-floor design allows unobstructed workspace underneath vehicles
- Single-point safety lock release unlocks both columns from one side
- Dual safety system with mechanical locks and sync cables
- Four heavy-duty two-stage arms for various wheelbases
- Automatic arm restraints improve lifting stability
- Overhead shut-off bar prevents vehicle over-travel
- 3-position adjustable height system for different ceiling setups
- Self-lubricating UHMW polyethylene sliders and bronze bushings
- Includes rubber pads and saddle adapters for multiple frame types
- Includes 3″ and 6″ extension adapters for added lifting range
Performance & Engineering
The OH-15 uses a direct-drive hydraulic design, meaning fewer moving parts compared to chain-driven systems resulting in smoother operation and lower long-term maintenance. Its synchronization cable system ensures both carriages rise evenly, while the extended column and carriage design improve durability during heavy lifting cycles.
Installation Requirements
- Minimum ceiling height: 14.5 ft
- Concrete thickness: Minimum 5 inches
- Concrete strength: 3,500 PSI required
- Indoor use only
What’s Included
- Dual hydraulic cylinder system
- Heavy-duty two-stage lifting arms
- Single-screw rubber pads and saddle adapters
- 3″ and 6″ extension adapters
- Power unit
- Sync cables and safety lock system
- Tool trays and toe guards
| Specifications | Details |
|---|---|
| Model | OH-15 |
| Lift Type | Clear-Floor Two-Post Lift |
| Lifting Capacity | 15,000 lbs |
| Lifting Time | 84 seconds |
| Max Lifting Height (Without Adapters) | ~74 7/8″ 76 1/4″ |
| Max Lifting Height (With Adapters) | ~83 7/8″ 85 1/4″ |
| Max Lock Height | Up to ~83 1/4″ (depending on configuration) |
| Overall Height Options | 174″ / 186″ / 198″ (adjustable) |
| Overall Width | 150 3/4″ |
| Width Between Columns | 123 1/2″ |
| Minimum Pad Height | ~6 7/8″ |
| Motor | 2.0 HP, Single Phase |
Documents
- Manual
- Brochure
