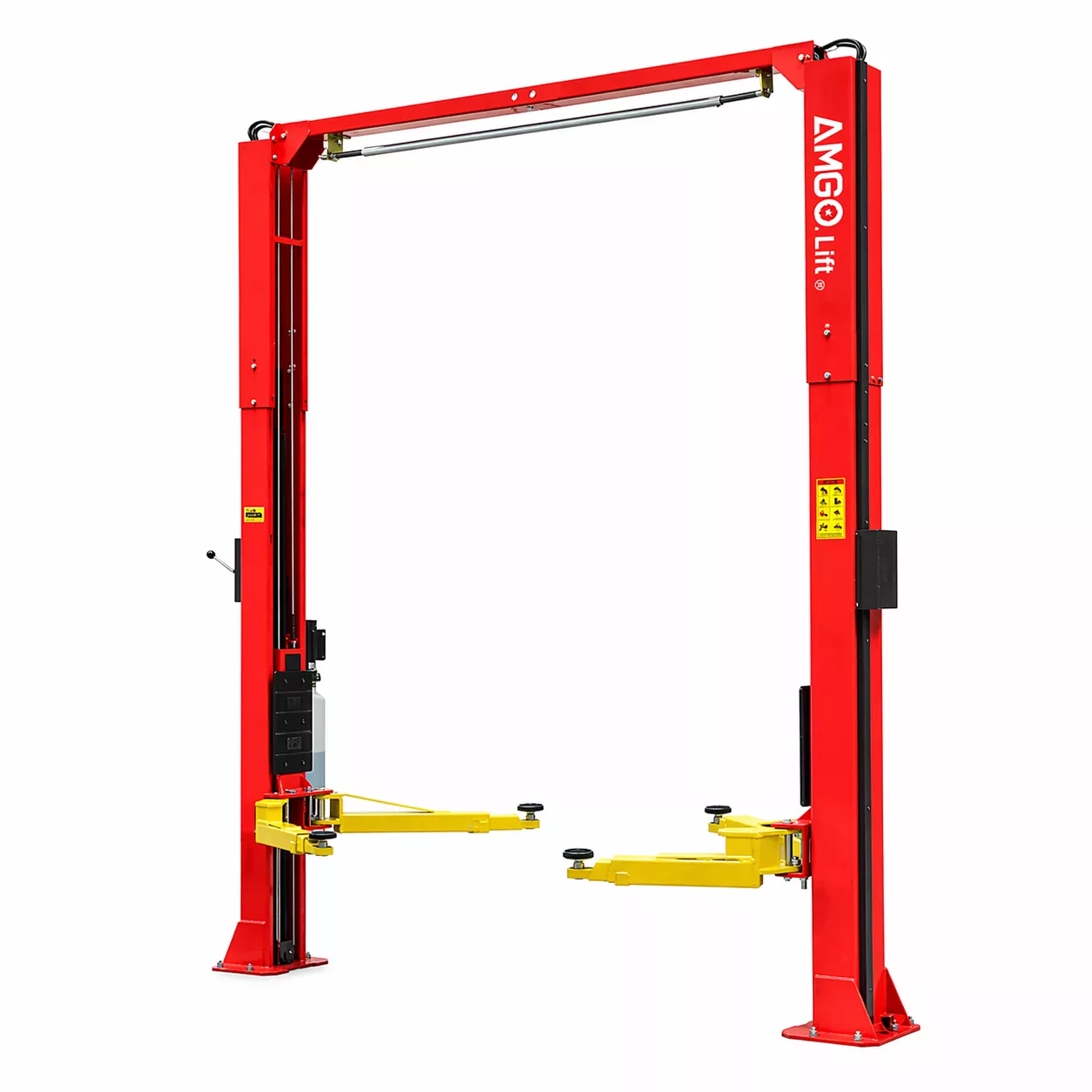

The AMGO OH-9 is a space-efficient clear-floor two-post lift designed for versatility in both professional shops and home garages. With a 9,000 lb lifting capacity and Super Asymmetric arm design, it allows flexible vehicle positioning while maintaining excellent door clearance and operator access.
Key Features & Benefits
- 9,000 lb lifting capacity for cars, light trucks, and SUVs
- Dual hydraulic direct-drive cylinders for smooth, reliable lifting
- Super Asymmetric arms support both symmetric and asymmetric configurations
- Single-point safety lock release system unlocks both columns from one side
- Clear-floor design provides an open, unobstructed workspace
- Overhead safety shut-off bar helps prevent vehicle damage
- Self-lubricating UHMW polyethylene sliders reduce wear and maintenance
- Automatic arm restraints for secure positioning
- Aero synchronization cables come standard for balanced lifting
- Detachable toe guards and tool trays included
- Double-screw rubber pads with 3″ extension adapters
Why This Lift Stands Out
The OH-9 delivers a strong balance between performance and flexibility. Its Super Asymmetric arm configuration improves vehicle access while maintaining stability, making it ideal for shops handling a mix of vehicles. The clear-floor layout keeps your workspace clean and efficient, while built-in safety systems ensure dependable daily operation.
Installation & Usage Notes
- Requires minimum 4″ thick, 3,000 PSI concrete for safe installation
- Indoor use only not designed for outdoor installation
- Ceiling height requirements: 151″+ for full height settings; 143″151″ for low setting only; below 143″ not compatible
- Professional installation recommended (electrical + anchoring)
What’s Included
- AMGO OH-9 Two Post Lift
- Dual hydraulic cylinder system
- Power unit
- Super Asymmetric lifting arms
- Rubber pads with extension adapters
- Synchronization cables
- Lock release system
- Toe guards and tool trays
- Installation hardware and manual
| Specifications | Details |
|---|---|
| Model | OH-9 |
| Lift Type | Clear Floor Two-Post Lift |
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 57 seconds |
| Max Lifting Height (No Adapter) | 71 7/16″ 73 3/8″ |
| Max Lifting Height (With Adapter) | 74 7/16″ 76 5/16″ |
| Max Lock Height (No Adapter) | 69 5/8″ 71 1/2″ |
| Max Lock Height (With Adapter) | 72 5/8″ 74 1/2″ |
| Overall Height | 143 1/8″ or 151″ |
| Overall Width | 135″ |
| Drive-Thru Clearance | 99 1/2″ |
| Width Between Columns | 112 3/16″ |
| Minimum Pad Height | 3 9/16″ |
| Motor | 2.0 HP |
| Structural Warranty | 5 Years |
| Hydraulic Components Warranty | 3 Years |
| Electrical Components Warranty | 2 Years |
| Shipping | Free freight shipping continental U.S. |
| Processing Time | 12 business days (in-stock items) |
| Estimated Delivery | 510 business days |
Documents
- Manual
- Brochure
