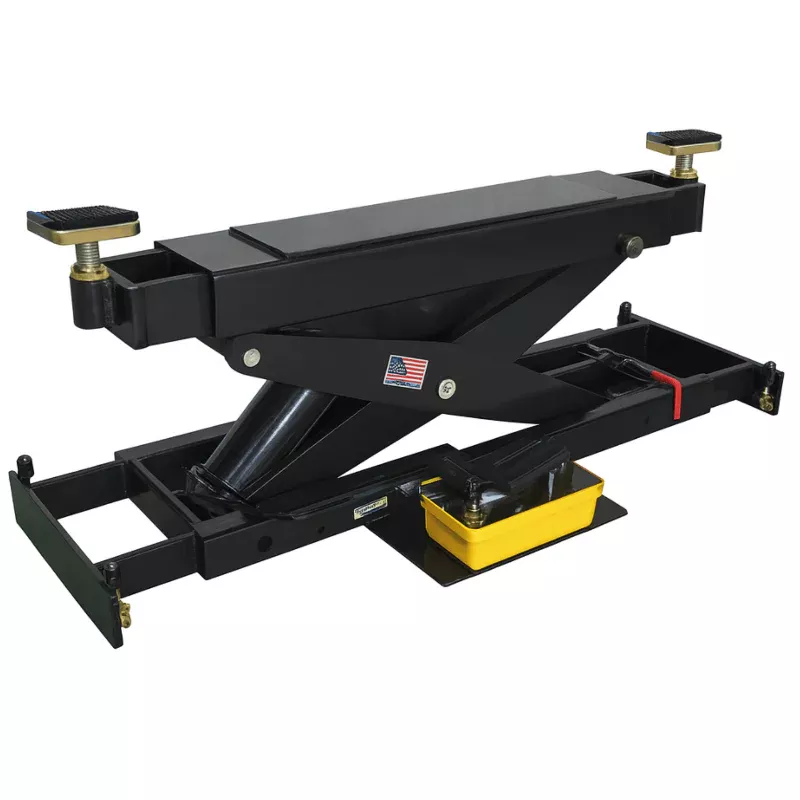

The AMGO RJ-20A is a heavy-duty rolling jack built for extreme lifting applications, delivering up to 20,000 lbs of lifting capacity. Designed for use with four-post lifts and large scissor lifts, it provides powerful, stable support for servicing full-size trucks and heavy-duty vehicles.
Key Features & Benefits
- 20,000 lb lifting capacity for heavy-duty vehicles and trucks
- Pneumatic hydraulic pump for powerful and efficient operation
- Heavy-duty saddle adapter assembly for secure chassis engagement
- Includes 3″ and 6″ extension adapters for increased lifting range
- AMGO patented floating rolling technology for smooth positioning
- Reinforced extendable lower sliding assembly for added stability
- Adjustable arms for precise lifting point positioning
- Large hydraulic cylinder for consistent lifting performance
- Ergonomic guardrail doubles as a handle for easy movement and hose protection
Why This Rolling Jack Stands Out
The RJ-20A is built for serious lifting demands, making it ideal for shops working on heavy-duty trucks and commercial vehicles. Its reinforced structure, high-capacity hydraulic system, and floating rolling design allow for smooth operation while maintaining stability under extreme loads.
Installation & Air Requirements
- Designed for use with four-post lifts or large scissor lifts
- Minimum air pressure required: 0.8 MPa
- Indoor use only
- Professional setup recommended
What’s Included
- AMGO RJ-20A Rolling Jack
- Pneumatic hydraulic pump
- Saddle adapters
- 3″ and 6″ extension adapters
- Air input fittings and hoses
- User manual
| Specifications | Details |
|---|---|
| Model | RJ-20A |
| Type | Rolling Jack |
| Lifting Capacity | 20,000 lbs |
| Pump Type | Pneumatic Hydraulic |
| Air Pressure Requirement | 0.8 MPa |
| Arm Pads Reach (A) | 45 1/4″ 66 1/8″ |
| Support Base Width (C) | 45 3/16″ 58 1/4″ |
| Min Height | 14 3/16″ |
| Min Rubber Pad Height | 16 9/16″ 17 15/16″ |
| Max Lifting Height (No Adapters) | 31″ 32 5/16″ |
| Max Lifting Height (With Adapters) | 40″ 41 5/16″ |
| Overall Width | 25 1/2″ |
| Structural Warranty | 5 Years |
| Hydraulic Components Warranty | 3 Years |
| Electrical Components Warranty | 2 Years |
| Shipping | Free freight shipping continental U.S. |
| Processing Time | 12 business days (in-stock items) |
| Estimated Delivery | 510 business days |
Documents
- Manual
