SKU: AMS.47.08.0003-1 / UPC: 010339180540071

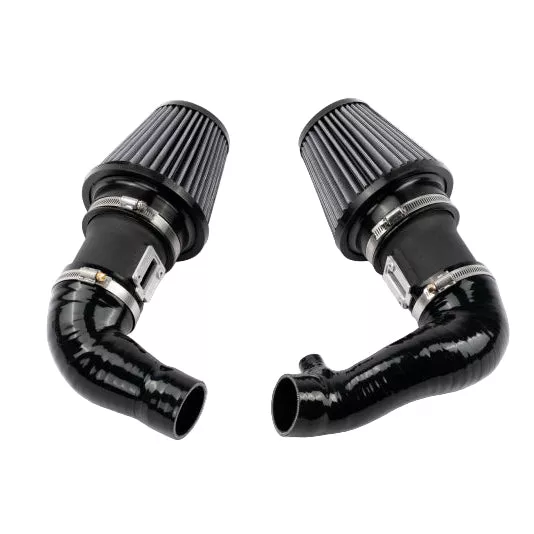

AMS Performance 2023+ Nissan Z 80mm Air Intakes
Discover the AMS Performance 2023+ Nissan Z 80mm Air Intakes, designed specifically for the twin-turbocharged 3.0L VR30DDTT engine in the 2023 and newer Nissan Z models (RZ34 chassis, including all sub-models like Sport, Performance, and Proto-Spec). This intake system stands out with its massive 80mm MAF housings and larger piping, delivering the highest airflow capacity available for the VR30 platform. Dyno testing shows a peak gain of +30 wheel horsepower over stock, with an average +24 wheel horsepower above 5000 RPM, plus torque improvements across the full rev range. Flowbench results confirm it supports up to 560 wheel horsepower at just 1 psi of depression nearly half the restriction of the OEM setup at 1.9 psi and outperforms leading competitor designs at equivalent pressure drops.
These gains translate to cooler compressor outlet temperatures, quicker turbo spool, sharper throttle response, and a broader powerband that enhances every drive.
What sets this intake apart from factory and aftermarket options is its engineering focus on unrestricted, laminar airflow. The organically shaped inlet tubes feature gradual bend radii for smooth transitions, while radiused filter edges minimize entry losses. This reduces turbulence and pressure drop, allowing the Garrett turbos to operate more efficiently for sustained power and better low-end drivability. The open dry filter design amplifies the turbo’s aggressive induction sound, drawing in more air than restrictive stock components without compromising reliability. Clean the filters easily with compressed air or mild degreasers for long-term performance in any condition.
Key Specifications
- Diameter: 80mm MAF housings and intake piping (largest on the market for VR30)
- Materials: 4-ply reinforced silicone couplers and inlet tubes durable dry filter media precision aluminum support brackets
- Flow Capacity: Up to 560 WHP at 1 psi depression
- Sound: Intense turbo spool and whoosh for an engaging driving experience
- Part Number: AMS.47.08.0003-1
- UPC: 010339180540071
- Weight: 9 lbs
- Shipping Dimensions: 14 x 12 x 12 inches
Vehicle Fitment
- Year: 2023 and newer
- Make: Nissan
- Model: Z (RZ34 chassis)
- Engine: 3.0L VR30DDTT twin-turbocharged inline-6
- Sub-models: All variants, including base Sport, mid-level Performance, and track-focused Proto-Spec
No modifications required for installation on compatible vehicles.
What’s Included in Your Purchase
Every kit comes complete with everything needed for a straightforward upgrade:
- (2) 80mm open dry filter elements
- (2) 80mm MAF sensor housings with keyed flanges for precise alignment
- (2) OEM-sized MAF insert sleeves (allows no-tune installation while maintaining stock-like metering)
- (2) Organically shaped silicone inlet tubes with smooth bends
- (2) Silicone turbo inlet couplers (4-ply reinforced)
- (2) Precision-fit intake support brackets to secure components in the engine bay
- Detailed physical installation instructions (step-by-step guide with photos)
- ECU calibration guide, including MAF scaling data, Throttle Airflow (TAF) relearn procedure, radiator fan speed adjustments, and an Excel file for easy integration into tuning software
Installation Overview
Bolt-on design ensures a simple install in under an hour with basic tools. Use the included support brackets and keyed components for consistent MAF readings and secure fitment. For stock-like operation without tuning, insert the provided sleeves. For full performance, remove sleeves and apply the calibration data our guide simplifies the process for professional tuners, ensuring stable idle and smooth operation.
This intake system delivers measurable results backed by extensive dyno and flowbench validation, making it the clear pick for Nissan Z owners seeking reliable power gains and enhanced turbo response. Upgrade today and feel the difference in every acceleration.
