MaxiDAS DS900 User ManualProduct Introduction:The MaxiDAS DS900 is an all-system diagnostics tablet, compatible with U.S., Asian, and European vehicles, 1996 and newer. The eight-inch touchscreen Android-based tablet features a quad-core processor for maximum speed and efficiency.
Note:This product is for use in the United States only.Product Features:1.Extensive vehicle coverage for U.S., Asian, and European vehicle, 1996 and newer2.Exceptional OE-Level system coverage for all electronic systems3.Complete code, live data, ECU information, active test, and special function capabilities4.Generates Pre & Post Scan Reports5.Supports the latest communication protocols, including DoIP and CAN FD6.Smart AutoVIN technology for identifying vehicles easily7.Automatic system and software updates with real-time push message notifications via Wi-Fi8.Remote Access Technical Support Troubleshooting.9.Shop management application to maintain data files,customer info, and vehicle records10.Convenient data management system for managing internal applications and reviewing data
Product Comparison:
| Model | MaxiDAS DS900 | MaxiCheck MX900 |
| Read Codes | ||
| Erase Codes | ||
| Live Data | ||
| ECU Information | ||
| Active Test | ||
| Service Functions | ||
| Complete OBD Diagnostics | ||
| Pre & Post Scan | ||
| Scan VIN | ||
| ECU Coding | — | |
| Guided Function | — | |
| Tire Pressure Monitoring System | Basic | Basic |
| Immobilizer Function | Basic | Basic |
| Advanced TPMS Diagnostics for Complete TPMS Health Check | — | — |
| Activate All Known TPMS Sensors | — | — |
| Program AUTEL MX-Sensors | — | — |
| Comprehensive OBD relearn coverage | — | — |
| On-screen Relearn Procedure | — | — |
| DoIP | ||
| CANFD | ||
| Battery Analysis | — | — |
| Videoscope | ||
| Processor | Quad-core 1.8GHz | Quad-core 1.8GHz |
| Operating System | Android 11 | Android 11 |
| Memory | 4G + 64G | 4G + 64G |
| Display | 8″ LCD | 8″ LCD |
| Battery | 7700mAh | 7700mAh |
| Internet Updatable | Wi-Fi | Wi-Fi |
| Multilingual Support | ||
| Historical Test Records | ||
| Save and Playback Data | ||
| Wi-Fi Print | ||
| Vehicle communication method | Wired | Wired |
Product Specifications:
Operating System: Android 11Processor: Quad core Processor(1.8GHz)Memory: 4GB RAM & 64GB ROMDisplay: 8-inch LCD capacitive touchscreen with 1280×800 resolutionRear Camera: 8 MPConnectivity: USB Type-C/USB 2.0/Wi-Fi/Mini SD card (supports up to 64GB)Audio Input/Output: Input: N/A Output: buzzerPower and Battery: 3.7 V/7700mAh lithium-polymer battery/Charges via 5 VDC power supplyBattery Charging Input: 5V/3 AOperating Temp: 0 to 50C (32 to 122F)Storage Temp: -10 to 60C (14 to 140F)Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD

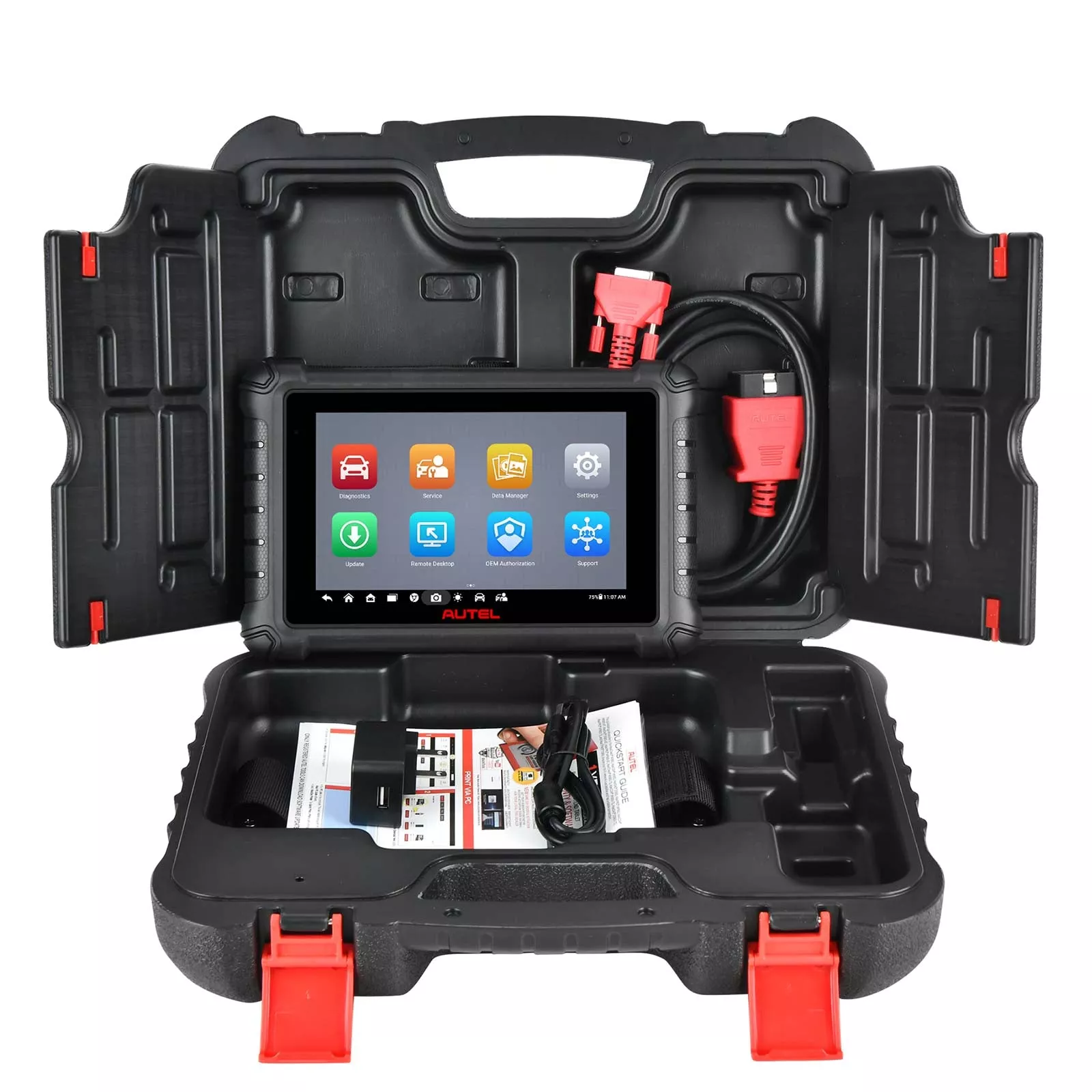

Package includes:
1pc x main unit1pc x main cable1pc x power adapter1pc x USB Type-C cable1pc x soft cloth1pc x quick reference guide1pc x packing list1pc x carrying case
