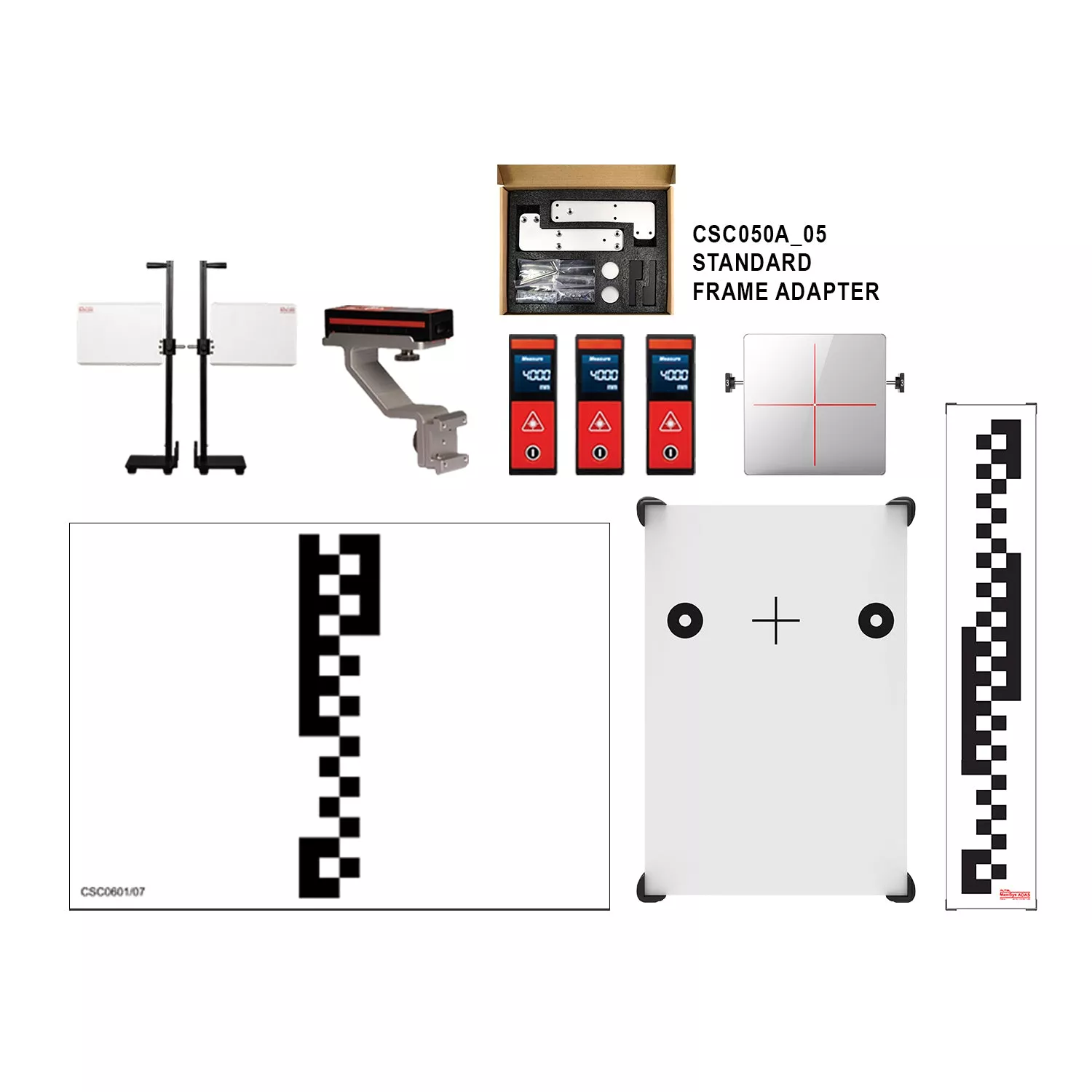

The CVADD1 Standard Frame CV ADAS Add-On extends Autel’s MaxiSYS ADAS Standard frame into commercial vehicle calibration. It requires the MS909CV tablet and Standard frame (both sold separately). The package covers static LDW camera calibration on light, medium, and heavy-duty vehicles and includes LDW targets for Mercedes-Benz Sprinter and RAM ProMaster vans, the CV Pattern CSC0611-06 for Bendix Wingman LDW and front collision warning calibration on HD vehicles, an ACC reflector and bracket for Bendix Wingman radar work, a Standard Frame adapter for pattern attachment, and a Digital ADAS kit for faster vehicle setup.
Shops already running the Autel ADAS Standard frame for passenger vehicle calibration can extend into commercial vehicle work with this package without investing in a separate frame system. Coverage spans Sprinter/ProMaster LDW, Bendix Wingman camera and radar the two most common CV ADAS calibration requests in mixed-fleet shops. One-year limited warranty.
