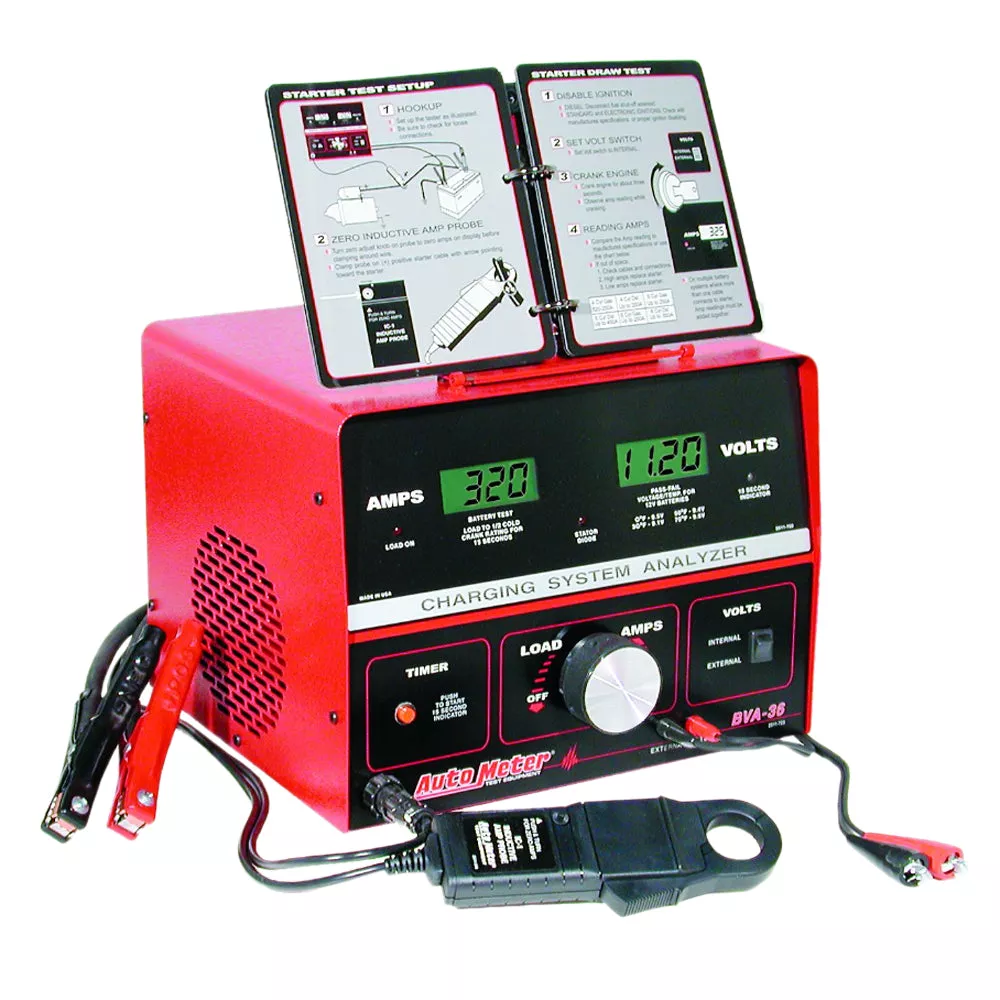

AutoMeter BVA-36/2 Heavy-Duty 800 Amp Variable Load Battery/Electrical System Tester
A heavy-duty battery and charging system analyzer that works well in either an automotive or heavy-duty environment. Equipment stand is optional but recommended. Incorporates an 800 Amp variable load carbon pile and comes with easy-to-read flip chart instructions that are mounted on top of the unit.
Features
– Digital auto-ranging voltmeter
– Field detachable external volt leads and inductive amp clamp
– Compatible with 6V & 12V batteries
– Battery CCA Range – 0-1600
– 15 Second timer
– Fan cooling offers built-in protection against overheating
Specifications
Battery Voltage: 6V & 12V
Carbon Pile Load 12 Volt: 800 Amp
Carbon Pile Load 6 Volt: 800 Amp
Lead Size: 10 – 2 Gauge
Battery CCA Range: 0-1600
Alternator Test: Yes – 12V & 24V
Stator Diode Test: Yes
Starter Draw Test: Yes
External Volt Leads: Yes
Amp Probe: Yes
15 Second Timer: Yes
Voltage Drop Test: Manual
Cooling: 5 Fan
Display: LCD Digital
Volt Scale: 0-19.99/20-199.9
Dimensions: 10 x 13 x 11
Weight: 31 lbs
California Residents: Prop 65 WARNING
Warranty: 3 Months
Optional Accessories
ES-5 Equipment Stand for use with BVA 36/2
ES-8 Deluxe Equipment Stand for use with BVA 36/2
ES-11 Deluxe Equipment Stand for use with BVA 36/2
Information Downloads
BVA-36/2 Operator Manual
BVA-36/2 Operator Manual- Spanish
