Product Description

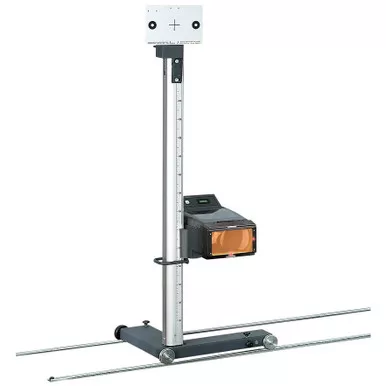

Rail set for precise headlight adjustment for Daimler workshops (3.3 m)
- Levelable track system for above and below floor installation
- Length 3.3 m: rail 2.5 m / extension 0.8 m
- Corresponds to the latest measuring station requirements: meets the requirements of Daimler as well as the requirements of the HU headlight directive
- Together with the SEG trolley, height differences of up to 30 mm can be compensated
- Long lifetime
- High-quality, robust processing
- Precisely guided steel rollers: a one-time alignment to the vehicle is sufficient for exact measurements and adjustments (time saving!)
- Steel wheels are included
- Optionally expandable (see expanded accessories)
Scope of delivery:
- 1 x guide rail (L profile): 2.5 m
- 1 x guide rail (L profile): 0.8 m
- 1 x running rail (flat profile): 2.5 m
- 1 x running track (flat profile): 0.8 m
- 1 x guide wheel (swingarm – steel)
- 1 x guide wheel (fix – steel)
- 1 x impeller (swingarm – POM)
- 2 rubber buffers as stops
- Installation material: drill bush, cheese head screw, pan head screw with flange, grub screw, washer
