Product Description

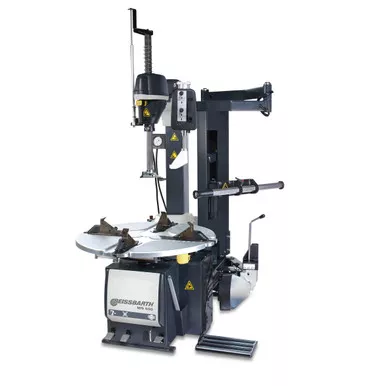

Beissbarth MS 650S tilt-back tire changer is a powerful solution for all types of rims and tires. The G-Frame Design is more durable and provides minimal flex at the demount head… important for stiff sidewall tires (without touching the wheel).Key Features:
- Tilt back G-frame design
- Single button locking for automatic positioning of mount / demount head
- Clamping range 12″ to 28″
- Foot operated bead-breaker
- 2 Speed rotation gives control over the mounting process
- NG330: Tecnoroller Bead Press System
- 2-Year Parts / 1-Year Labor Warranty
Standard Accessories:
- 1 Bead lever
- 1 Lubricant brush
- 1 Bead pressing device
- 1 Bead breaker plastic protection
- 5 Mount / demount head protectors
- 1 Wing side protection for demount head
- 1 70mm Cone
- 2 Cone protector tool locking system
- 2 Center locking protection
- 2 pin protection locking system
Technical Specifications
- Power Supply: 110V, 1 Ph, 50/60Htz, 20 AMP
- Air Supply Pressure: 116-145 PSI
- Rim Diameter: 12-28″
- Max Wheel Diameter: 47″
- Max Rim Width: 15″
- Turntable Speed: 2 Speed Motor
- Rotation Speed: 7 and 15 RPM”
- Bead Breaker Range: Up To 16″ – Ergo Control
- Breaking force: 11,500 N
