SKU: BXPT-00500-DP

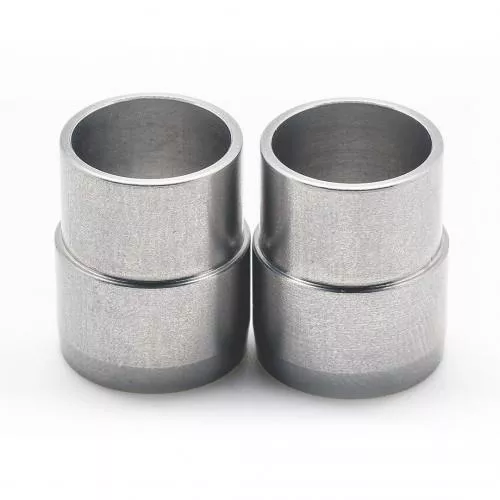

BLOX Racing Honda B20 Dowel Pins for 1990-2001 Acura Integra, Civic, CR-V
BLOX Racing Honda B20 dowel pins serve as direct replacements for stock dowel pins in B-series engines including B16 B17 B18 B20. These pins fit 1990-2001 Acura Integra GS GS-R LS RS Type R 1999-2000 Honda Civic Si 1994-1997 Civic del Sol VTEC and 1997-2001 Honda CR-V. Precision design ensures accurate cylinder head to block alignment to support stock rebuilds or high-performance builds with reduced risk of gasket leaks.
Key Features
- 4140 Chromoly Steel Construction: Delivers high tensile strength and wear resistance for demanding engine conditions in street or track applications.
- 11mm Outer Diameter: Direct OEM match allows drop-in installation without machining or adjustments.
- 70mm Length: Longer profile provides deeper block seating for enhanced stability and alignment during head installation.
- Set of 4 Pins: Full kit equips both sides of B-series engine block for complete head alignment coverage.
- CNC Machined Precision: Tight tolerances prevent misalignment warping or leaks that lead to engine failure.
Product Notes
- Confirm B-series engine code B16 B17 B18 B20 prior to purchase for compatibility.
- Clean mating surfaces thoroughly to achieve optimal pin seating.
- Packaged in protective sleeve to prevent damage during transit.
Installation Notes
- Professional installation recommended.
- Press out factory pins using a bench vise or pin removal tool.
- Compatible with stock hardware. No additional components needed.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1990-1993 | Acura | Integra | GS |
| 1997-2001 | Acura | Integra | GS |
| 1994-2001 | Acura | Integra | GS-R |
| 1990-2001 | Acura | Integra | LS |
| 1990-1998 | Acura | Integra | RS |
| 1995-1996 | Acura | Integra | Special Edition |
| 1997-1998 | Acura | Integra | Type R |
| 2000-2001 | Acura | Integra | Type R |
| 1999-2000 | Honda | Civic | Si |
| 1994-1997 | Honda | Civic del Sol | VTEC |
| 1998-2001 | Honda | CR-V | EX |
| 1997-2001 | Honda | CR-V | LX |
| 2000-2001 | Honda | CR-V | SE |
Why Choose BLOX Racing?
- Established leader in Honda performance parts since 1996.
- Uses premium materials for long-lasting engine reliability.
- Engineered with tight tolerances for race-proven results.
Frequently Asked Questions
- Q: Will these dowel pins fit B18C Type R engines in 1996-2001 Integra?
A: Yes they are compatible with all B-series engines including B18C in Integra GS-R and Type R models from 1994-2001. - Q: What material are the BLOX Racing B20 dowel pins made from?
A: Forged from 4140 chromoly steel for maximum strength and precise dimensions of 11mm OD x 70mm long. - Q: Is there a warranty on these dowel pins?
A: BLOX Racing offers a limited lifetime warranty against manufacturing defects when installed correctly.
Shipping & Handling
- Method: USPS First Class or UPS Ground
- Availability: In stock – ships same or next business day
- Packaging: Compact protective sleeve 4in x 3in x 1in box
- Weight: 0.05 lbs
