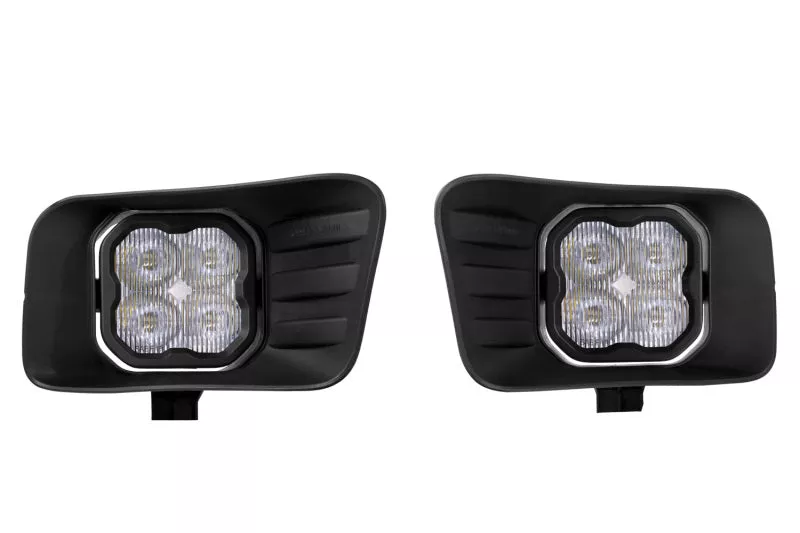

SS3 3-inch LED fog light pod upgrade kit for the Dodge Ram 1500, 2500, and 3500, Diode Dynamics DD8954.
The Diode Dynamics DD8954 SS3 LED Fog Light Kit replaces the factory fog lamp on the Dodge Ram 1500, 2500, and 3500 with a pair of SS3 3-inch LED pods mounted in CAD-designed, vehicle-specific brackets that use the existing factory mounting points. The SS3 pod delivers significantly more usable light output than the factory halogen fog lamp it replaces. The kit is available in SAE-compliant Fog and Driving optics so the beam pattern stays street-legal while delivering significantly more usable light than the factory halogen fog lamp.
Key Features
- The DD8954 kit uses CAD-designed brackets that bolt directly to the factory Ram Horizontal fog light mounting points
- SS3 3-inch LED pods available in SAE Fog and SAE Driving optics for street-legal beam patterns
- No cutting or drilling required for installation
- Aircraft-grade aluminum pod housing with a fully potted, waterproof design
- Available in 6000K cool white or 3000K selective yellow color temperature
- Simple plug-and-play harness connects to the factory fog light wiring
- 3-year limited warranty backed by Diode Dynamics
Fitment
| Year | Make | Model | Trim/Submodel |
|---|---|---|---|
| 2009-2012 | Dodge | Ram 1500 | All |
| 2010-2018 | Dodge | Ram 2500 | All |
| 2010-2018 | Dodge | Ram 3500 | All |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | DD8954 |
| Series | SS3 LED Pod |
| Bracket kit type | Ram Horizontal |
| Pod diameter | 3 inches |
| Optic options | SAE Fog, SAE Driving |
| Housing material | Aircraft-grade aluminum, fully potted waterproof design |
| Warranty | 3-year limited |
What’s Included
- Two (2) Diode Dynamics SS3 LED pods (one pair), kit DD8954
- Two (2) vehicle-specific mounting brackets
- Plug-and-play wiring harness and connectors
- Two (2) horizontal-mount bezels sized for the factory Ram fog light opening
- Mounting hardware and installation guide
About Diode Dynamics
Diode Dynamics engineers the SS3 LED pod line to replace factory fog lamps with a modern, off-road-style look while keeping installation plug-and-play, and the DD8954 bracket kit extends that fitment engineering to this specific vehicle’s factory fog light opening with no cutting or splicing required.
FAQ
Is this a direct plug-and-play replacement for my factory fog lights?
Yes. The included vehicle-specific brackets bolt to the factory fog light mounting points, and the harness plugs into the factory connector.
Is this kit legal for on-road use?
Yes, when the SAE Fog or SAE Driving optic is selected, the beam pattern meets SAE compliance standards for street-legal use.
What is the difference between the Fog and Driving optics?
The Fog optic produces a wide, low-mounted beam suited to foul weather, while the Driving optic produces a longer-throw beam pattern for added forward visibility; both ship in SAE-compliant patterns.
Do I need to modify my bumper to install this kit?
No cutting or drilling is required. The included brackets are designed to use the existing factory fog light opening and mounting points.
What color temperature options are available?
This kit is available in 6000K cool white or 3000K selective yellow, depending on the color option selected at purchase.
Can I aim the pods after installation?
Yes. The mounting bracket allows the pod angle to be adjusted so the beam cutoff can be set correctly after the kit is installed.
How long is the warranty on this kit?
Diode Dynamics backs the SS3 LED pods in this kit with a 3-year limited warranty.
Will I need to splice any wires to install this kit?
No. The included harness is designed to plug directly into the factory fog light connector without splicing.
Installation Instructions
- Access the factory fog light, typically by removing fender liner fasteners or reaching behind the bumper, depending on the vehicle.
- Disconnect the factory fog light harness and remove the factory fog lamp assembly from its mounting location.
- Install the SS3 pod into the provided vehicle-specific bracket, then mount the bracket assembly in the factory fog light opening using the retained hardware.
- Connect the included wiring harness between the SS3 pod and the factory fog light connector, then route and secure any backlight tap wiring if applicable.
- Repeat for the opposite side, then aim both pods by parking 25 feet from a wall and adjusting each pod so the beam cutoff sits four inches below the measured mounting height.
