DETAILS
Dobinsons Basic Gas Lift Kit to suit Ford Ranger PX1/2 2011-2018
We strongly recommend you run an adjustable coil over when opting for a75mm front lift. This allows you to dial in the ride height while also accommodating varying loads (future proofs your lift if you want to add a bullbar and/or winch in future), and gives you the ability to make any adjustments as necessary come certification time.
– Not Suitable for PX3 Models
Please use the drop down menu to select your model type, lift amount and the correct spring rates depending on your vehicles accessories.
Type:RangerModel: PX1/2Year: 08/2011 – Mid 06/2018Suspension Type: Coil Spring Front / Leaf Spring RearFront Lift: 35mm – 75mm LiftDetail:– 4×4 Chassis Mounted Front Bump Stop Models Only– Turn-Key Start Models Only– Also Suits 4×2 High-Rider– Twin Tube Nitrogen Gas Charged Shock Absorbers– These front struts are pre-assembled in our workshop and ready to go.
COMPONENTS

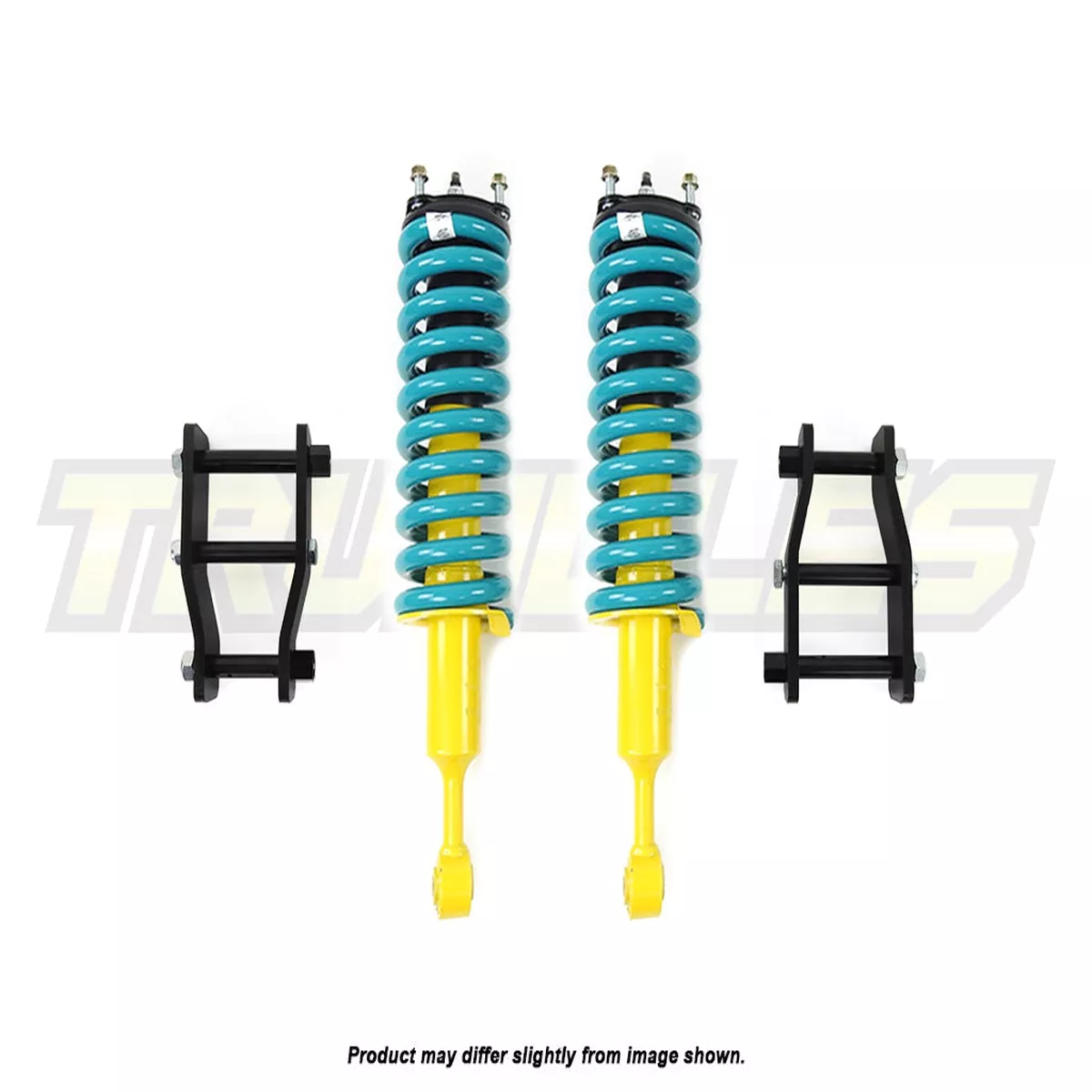

Front:2x Dobinsons Heavy Duty Shocks – GS19-0921x Pair Dobinsons Springs2x Trundles Strut Top Mounts – TOP3
Rear:1x Trundles Extended Shackles
EXTRAS
Dobinsons Rear Greasable Pins –SP59-060Trundles Bolt InDiff Drop –MAZ-007Tail Shaft Spacer Kit – TSS001Upper Control Arms –UCA3957R
For a lower replacement bush to fit GS19-092, please clickhere
IMPORTANT!
The stock Upper Control Arms can hit the chassis seam on droop in some models.With the vehicle on the ground, you can remove the top hat crush tube and shorten it around 10mm then refit. This in turn can shorten the shock extended length to give clearance – Some top hats have a longer crush tube which seems to be the cause of this.
