DETAILS
Dobinsons Basic IMS Height Adjustable Lift Kit to suit Mazda BT-50 Series II 2011-2020
– A 100mm Lift is achievable with extra components. A 100mm Lift will most likely NOT pass a NZ certification as this will decrease the suspension droop travel, it is up to the customer to set these any higher than a 75mm Lift.
Looking for a quick and easy lift for your BT-50? We have the answer!
Simply unbolt your factory struts and replace with these direct bolt-in front pre-assembled shocks.
Please use the drop down menu to select your model type, lift amount and the correct spring rates depending on your vehicles accessories.
Type: BT-50Model:UP/URYear:10/2011 – Mid 2020Suspension Type: Coil Spring Front / Leaf Spring RearFront Lift: 35mm – 75mm LiftRear Lift: 25mm – 50mm LiftDetail:– Monotube Internal Reservoir Shock Absorbers– These front struts are pre-assembled in our workshop and ready to go.
COMPONENTS

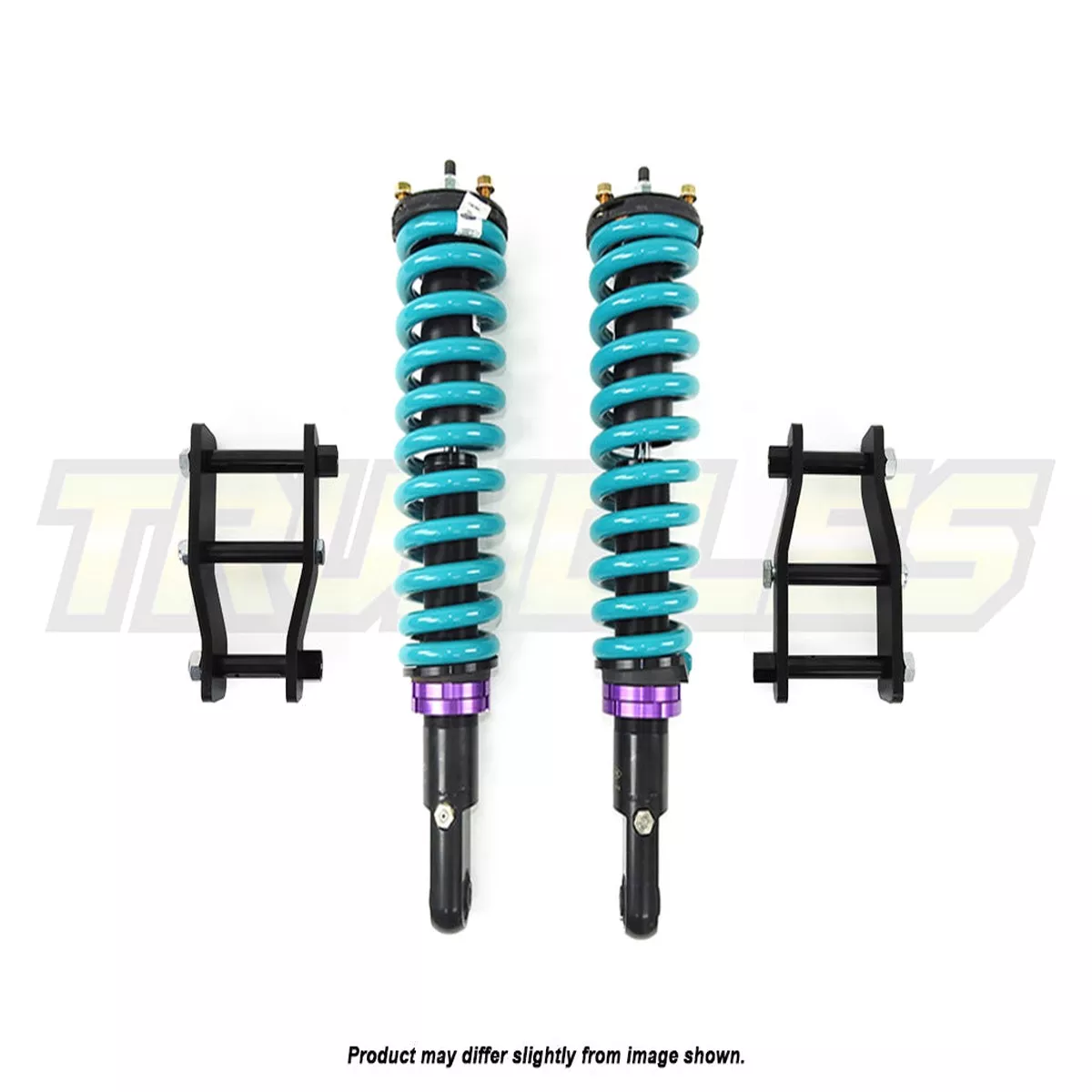

Front:2x Dobinsons IMS Shocks – IMS19-500921x Pair Dobinsons Springs2x Trundles Strut Top Mounts – TOP3
Rear:1x Trundles Extended Shackles
EXTRAS
Dobinsons Rear Greasable Pins –SP59-060Trundles Bolt InDiff Drop –MAZ-007Tail Shaft Spacer Kit – TSS001Upper Control Arms –UCA3957R
For a lower replacement bush to fit IMS19-50092, please click here
IMPORTANT!
The stock Upper Control Arms can hit the chassis seam on droop in some models.With the vehicle on the ground, you can remove the top hat crush tube and shorten it around 10mm then refit. This in turn can shorten the shock extended length to give clearance – Some top hats have a longer crush tube which seems to be the cause of this.
