Dobinsons Basic IMS Height Adjustable Lift Kit to suit Toyota Hilux N70 2005-2015
Important notes regarding lift kits can be found in the IMPORTANT tab! Please read thoroughly before making your order.
Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.
Type: HiluxModel: N70Year:2005 – 2015Suspension Type: Coil Spring Front / Leaf Spring RearFront Lift:50mm – 75mm LiftRear Lift:25mm – 50mm LiftDetail: – Monotube Internal Reservoir Shock Absorbers– Adjustable Spring Seat– Front shocks come pre-assembled for ease of installation.
IMPORTANT!
The N70 Hilux sits nose down from factory, if you are chasing an even ride height you will need to either liftonly the front of vehicle 50mm (2″), or lift the front 25mm (1″) higher than the rear. If you want full 50mm lift in rear, you will have to run 75mm (3″) in front, please see below for more info.
If you have a Single Cab or Petrol N70, we recommend that you lower the specifications of the coil spring by one part number for best result. If you are unsure on which options to select, please feel free to contact us here before purchasing.
You will also require Upper Control Arms and a Diff Drop at 75mm. We recommendUCA59-203KUpper ControlArms iffitting larger tyres.A 100mm Lift is achievable with extra components. This will most likely NOT pass a NZ certification as this will decrease the suspension droop travel, and is up to the customer to set these any higher than a 75mm Lift.
COMPONENTS

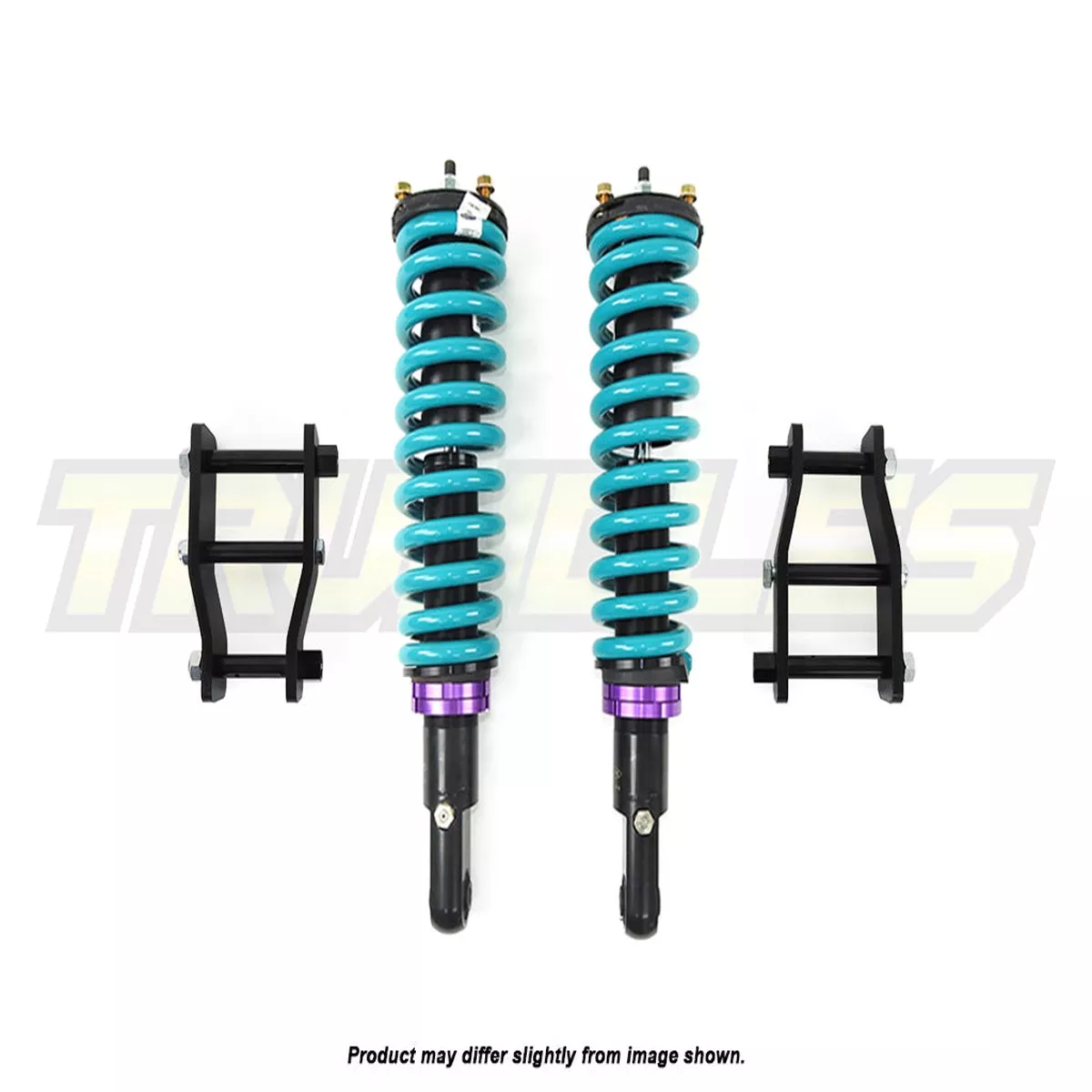

Front:2x Dobinsons IMS Shocks – IMS59-502201x Pair Dobinsons Springs2x Trundles Strut Mounts – TOP2
Rear:1x Pair Trundles Extended Shackles
EXTRAS
Extended Ball Joints – HIL-001Dobinsons Rear Greasable Pins –SP59-060Trundles Spacer Diff Drop –HIL-005orTrundles Arm Style Diff Drop –DDHIL-ARM
For a lower replacement bush to fit IMS59-50220, please click here
