The EasyConnect by Redline Detection provides a fast and easy way to hook up any smoke machine to late model vehicles that no longer have an EVAP test port.
It includes 4 different sized adapters plus 4 add-on components for quick connection to most late model automobiles and light-duty trucks.
With EasyConnect, technicians can snap the T-shaped adapters into an easily accessible line, then connect any smoke machine to the EVAP system for fast and accurate diagnostics.
EasyConnect forms a complete seal for reliable testing in seconds. The EasyConnect test kit includes 4 different sized adapters with 4 add-on components to allow technicians to connect their smoke machine to most late model automobiles and light-duty trucks. EasyConnect is compatible with any smoke machine.
– 4 male adapter sizes: 12.6mm, 9.89mm, 9.49mm, 7.89mm
– 4 Tee Assembly sizes: 12.6mm, 9.89mm, 9.49mm, 7.89mm
– Compatible with any smoke machine
– Forms a complete seal for effective leak testing without disturbing other components
– Comes in a compact and durable storage case

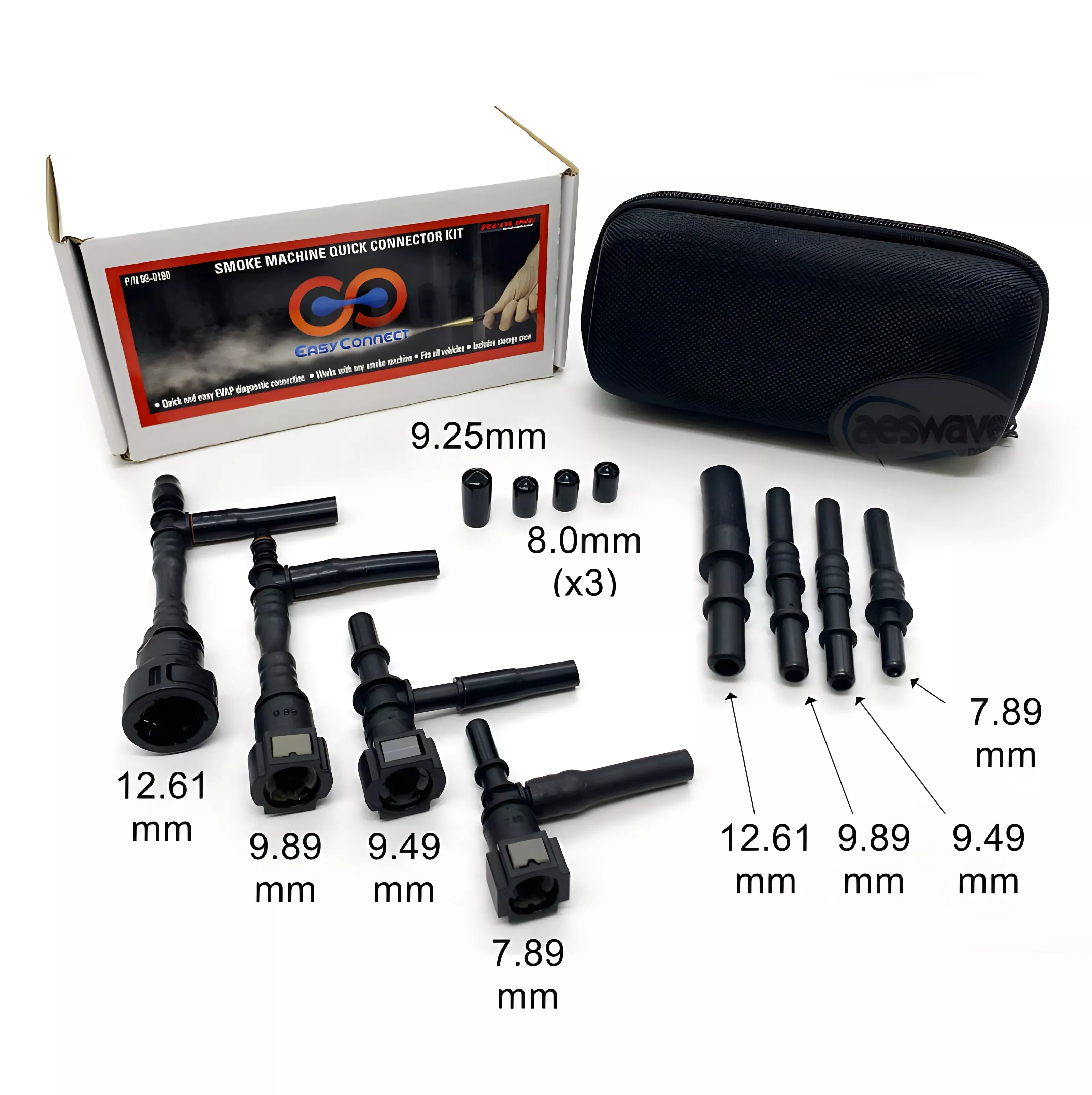

Contents
– Male adapters: 12.6mm, 9.89mm, 9.49mm, 7.89mm
– Tee adapters: 12.6mm, 9.89mm, 9.49mm, 7.89mm
– Rubber Vacuum Caps: one 9.25mm and three 8.0mm
– Rigid case (3″ x 3″ x 8″)
– 1-year Warranty
