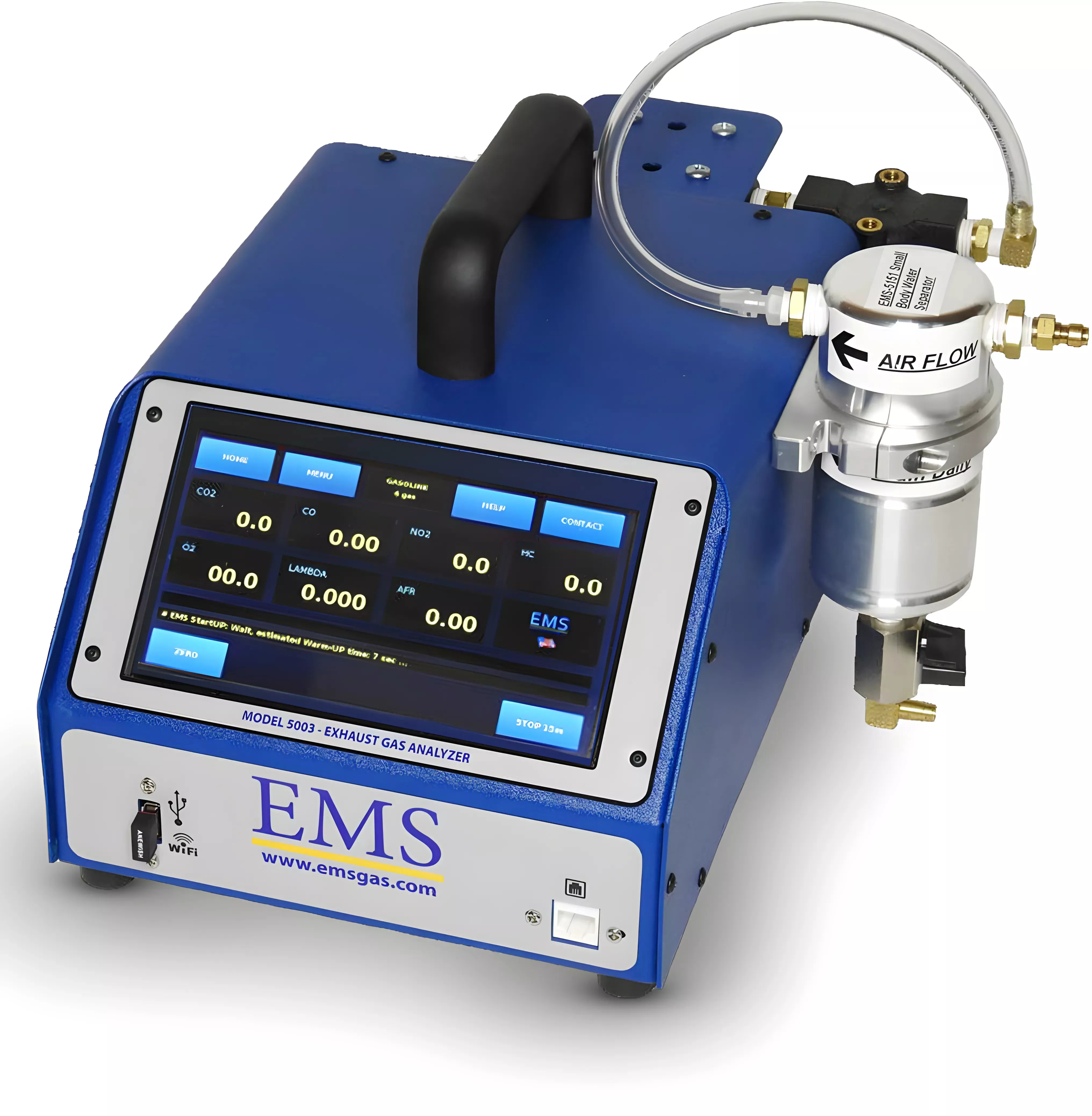

The web-enabled EMS 5003 5-Gas Analyzer connects via wireless LAN or wired Ethernet to virtually any OS device via a web browser. Model 5003 is a portable stand alone unit able to test a vehicle in your shop or on the road. Power is supplied by the vehicle under test or an optional 110 VAC converter to 12VDC.
Designed to meet BAR 97 ( EPA ASM ) and OIML R99 Class 0 standards, and uses all updated electronics and 7″ touch screen display. The compact unit & robust metal housing is designed to withstand the most difficult shop or mobile environments.
7 Standard HD Touch Screen Display
Heavy duty filter/sampling systems
USB/Ethernet/Wireless LAN connectivity
View live data in a web browser via WIFI to virtually any device
Print, export, record/playback recordings,
Export to MS Excel
Print to your printer
Ethernet subscription available allowing connecting from any where in the world
Lifetime Service contact available
Made in USA
Display options
Data captured with the 5003-5 can be displayed on multiple platforms:
7″ Smart Display on the 5003-5 base unit.
Web Browser via USB dongle connected to the 5003-5 base unit. Up to 25 different devices can view the same date at the same time. Control, start and stop, zero, record, playback recordings, print, and export from the web broswer.
LabView pc-based software, sold separately.
Export Options
via Smart Display: Print via USB, Record screen display
via browser: Excel as CSV file, Record/playback recordings,
Features
Use the EMS 5003 as stand alone or portable
Connect to a PC via the serial port with the optional EMS LabView Software.
5003 display allows reviewing test results on the screen in excel format and print on your printer, export to an excel file and download tests via USB.
Connect the wireless LAN to any device for live tests and analyzer control with web browser software.
Heavy duty filter system most reliable in the industry with new oil/water separator.
Easy calibration routine.
Contents
EMS 5003-5 base unit w/ 7″ display
USB dongle 30-meter range (Option: antennea with 300-meter range)
WIreless LAN
Web browser software
25 Sample Hose
Handle
S.S. Tip
Water Separator
HD Water Trap Assembly
Operations Manual
AC/DC Power Supply 5.5 AMP
Emissions Guide Training CD
The Auto Emissions Bible Book
1-year parts & labor warranty
Optical bench is covered for 18 months
