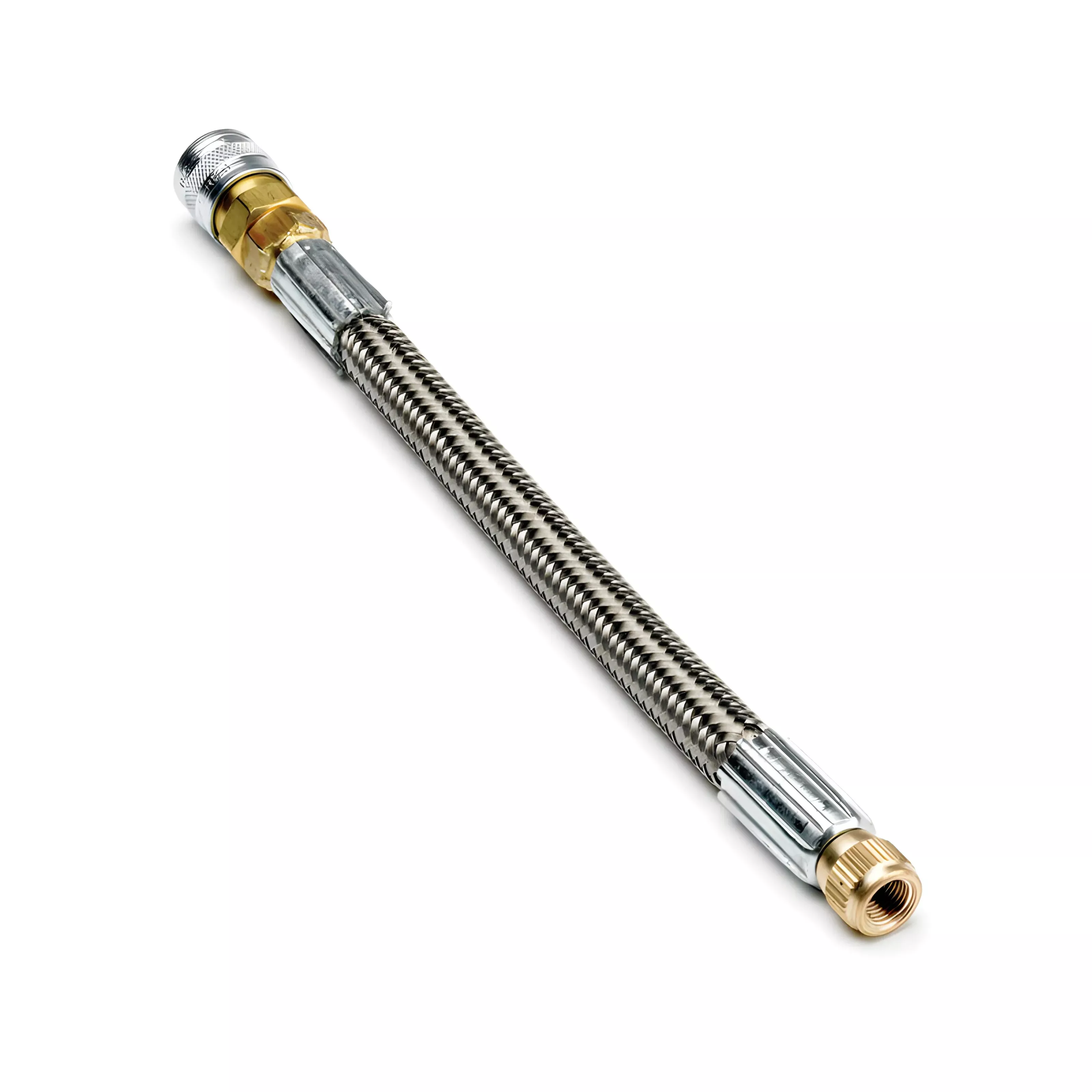

The Pico TA117 fuel hose is designed specifically for use with the Pico WPS500X pressure transducer, with a strong construction to ensure safe and accurate operation. The hose is terminated at one end with a Foster connector to fit the Pico WPS500X, and at the other end with a Schrader valve to fit standard fuel rails.
Specifications
– Conforms to SAE30R9
– Maximum working temperature of 115 C / 239 F
– Maximum pressure rating 500 psi / 34.47 bar
– Hose materials: Teflon tube reinforced by outer steel braid
– All materials compatible with gasoline and ethanol/ethanol blends
– Low permeation
– Viton seals in couplers and valves
