Product Description
Pro Precision Balancing System
- Professionally centered rims at the hub
- Even and consistent pressure from the lug
- Tolerance Free Centering
- Problem Solving Solutions
- Application Chart Included

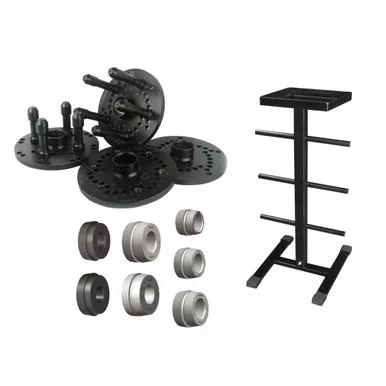

Scope of Delivery:Flanges:
- North American Flange Plate A 1 HW241e702 009 Covers the Following Bolt Hole Patterns: mm = 4 x 98, 100, 108, 110, 114.3, 165.1, 170
- North American Flange Plate B 1 HW251e802 009 Covers the Following Bolt Hole Patterns: mm = 5 x 98, 105, 108, 110, 115, 120.65, 135, 154.95
- North American Flange Plate C 1 HW251e903 009 Covers the Following Bolt Hole Patterns: mm = 5×100, 112, 114.3, 120, 127, 130, 139.7, 150, 165.1
- North American Flange Plate D 1 HW261e702 009 Covers the Following Bolt Hole Patterns: mm = 6 x 114.3, 115, 120, 127, 132, 135, 139.7
Studs:
- (Plug in Stud II, 24.5mm, 80mm Long, Short Taper) 8 HW271 804 118
- (Plug in Stud III, 24.5mm, 90mm Long, Ball Seat) 5 HW271 904 119
- (Plug in Stud V, 22.5mm, 100mm, Short Taper) 8 HW271 994 121
Collets:
- Pro Collet 1 1 HW150 400 111: 52.5 – 61mm
- Pro Collet 2 1 HW150 400 112: 61.5 – 70mm
- Pro Collet 3 1 HW150 400 113: 67.5 – 76mm
- Pro Collet 4 1 HW150 400 114: 75 – 83mm
- Pro Collet 5 1 HW150 400 115: 82 – 90.5mm
- Ford Precision Collet 1 HW160 400 060: 86.4 – 87.3mm/91 – 96mm
- Toyota Precision Collet 1 HW160 400 062: 99 – 101.5mm/105 – 110.7mm
Adapter Tree Stand 1 – HW900 008 205
