Product Description
Haweka Pro Precision Centering System
- Professionally centered rims at the hub
- Even and consistent pressure from the lug
- Tolerance Free Centering
- Problem Solving Solutions

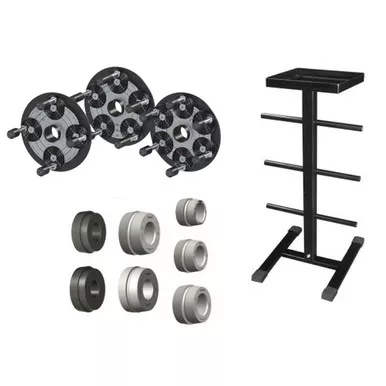

Scope of Delivery:Quick Plates:
- Quick Plate 4 1 HW249e011 xx0 Recommend QT 1
- Quick Plate 5 1 HW259e011 xx0 Recommend QT 2,3 and 4
- Quick Plate 6 1 HW269e011 xx0 Recommend QT 1 and 4
Quick Tips:
- Quick Tip 1: 24.5mm Dia. 38mm length, Installed 6 HW273e008 003 Length 80mm/3.15”, Short Taper, Standard Required for Toyota Truck/Shank Style Lug Applications
- Quick Tip 2: 24.5mm Dia. 48mm Length, Ball Seat Tip 6 HW273e008 007 Installed Length: 90mm/3.5”
- Quick Tip 3: 22.5mm Dia. 58mm, Installed Length 6 HW273e008 025 100mm/3.95”, Long Taper, Standard
- Quick Tip 4: 19 Dia., 58mm Length, Tuner Tip 6 HW273e008 023 Total Installled Length: 100mm (3.95”) Required for Aftermarket Wheels
Collets:
- Pro Collet 1 1 HW150 400 111 – 52.5 – 61mm
- Pro Collet 2 1 HW150 400 112 – 61.5 – 70mm
- Pro Collet 3 1 HW150 400 113 – 67.5 – 76mm
- Pro Collet 4 1 HW150 400 114 – 75 – 83mm
- Pro Collet 5 1 HW150 400 115 – 82 – 90.5mm
- Ford Precision Collet 1 HW160 400 060 – 86.4 – 87.3mm/91 – 96mm
- Toyota Precision Collet 1 HW160 400 062 – 99 – 101.5mm/105 – 110.7mm
Adapter Tree Stand 1 HW900 008 205
