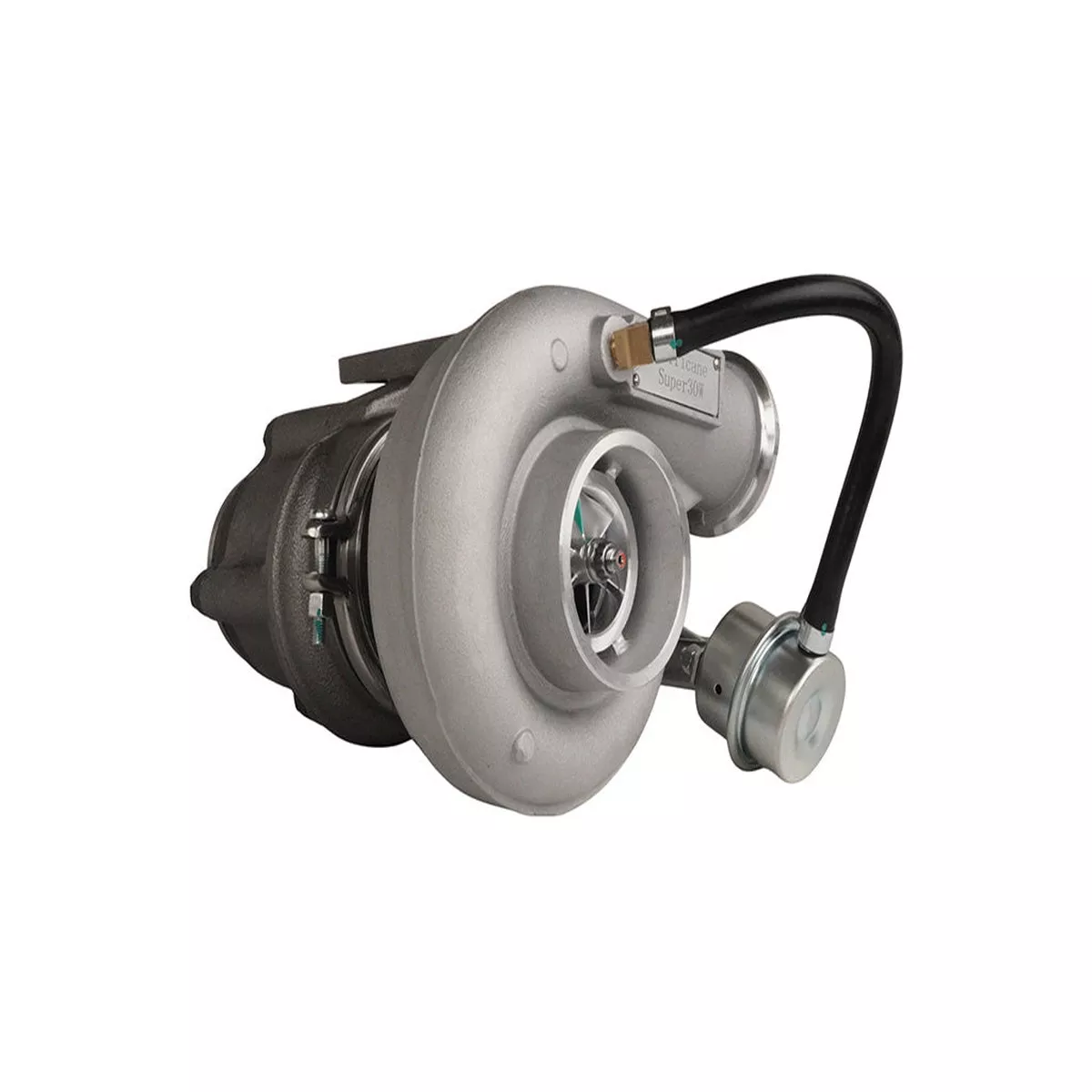

Hurricane Super 30W Turbo
Includes:1xHurricane Super 30W Turbo
Details:Looking for an aftermarketupgrade fromtheHX30 Turbo? This is the turbo you’re looking for, engineered with a CNC-machined billet compressor wheel designed for motorsport applications, compared to standard cast compressor wheels, these offer quicker response times, increased power output, and superior durability. Additionally, every unit is VSR-balanced, delivering greater reliability and a longer lifespan under high boost pressure than traditional factory balancing
– Features an integrated wastegate.– 1 year warranty– High-quality, heavy-duty bearings for long service life and reliability– Billet-machined compressor wheel built for racing and motorsport (not cast)– VSR-balanced for higher precision and smoother operation than standard factory balancing
Measurements:Compressor:Inducer: 44mmExducer: 73mm
Turbine:Inducer: 65mmExducer: 52mm
– Turbine housing size:6 cm– Turbine housing inlet:T3 (single entry)– Turbine housing outlet:V-band– Center-to-center mounting holes: 34 mm– Actuator arm pin: 8 mm– Wastegate arm to actuator length: approx. 165 mm
VSR balancing vs. standard factory balancing:– Standard factory balancing:The compressor and turbine are balanced separately at low speed (around 5,00010,000 rpm) with no fine-tuning after assembly.– VSR balancing:The fully assembled turbo is tested under oil pressure at up to 100,000250,000 rpm and fine-tuned in real time for perfect balance under real operating conditions.
Benefits of VSR balancing– Much lower vibration (1020 higher precision)– Longer bearing and shaft life– Faster spool and smoother boost response– Quieter and more stable operation at high rpm– Reduced risk of oil leakage or shaft failure
