Leverless Hydraulic Tire Changing & Precision Wheel Balancing System (Up to 30 Wheels)

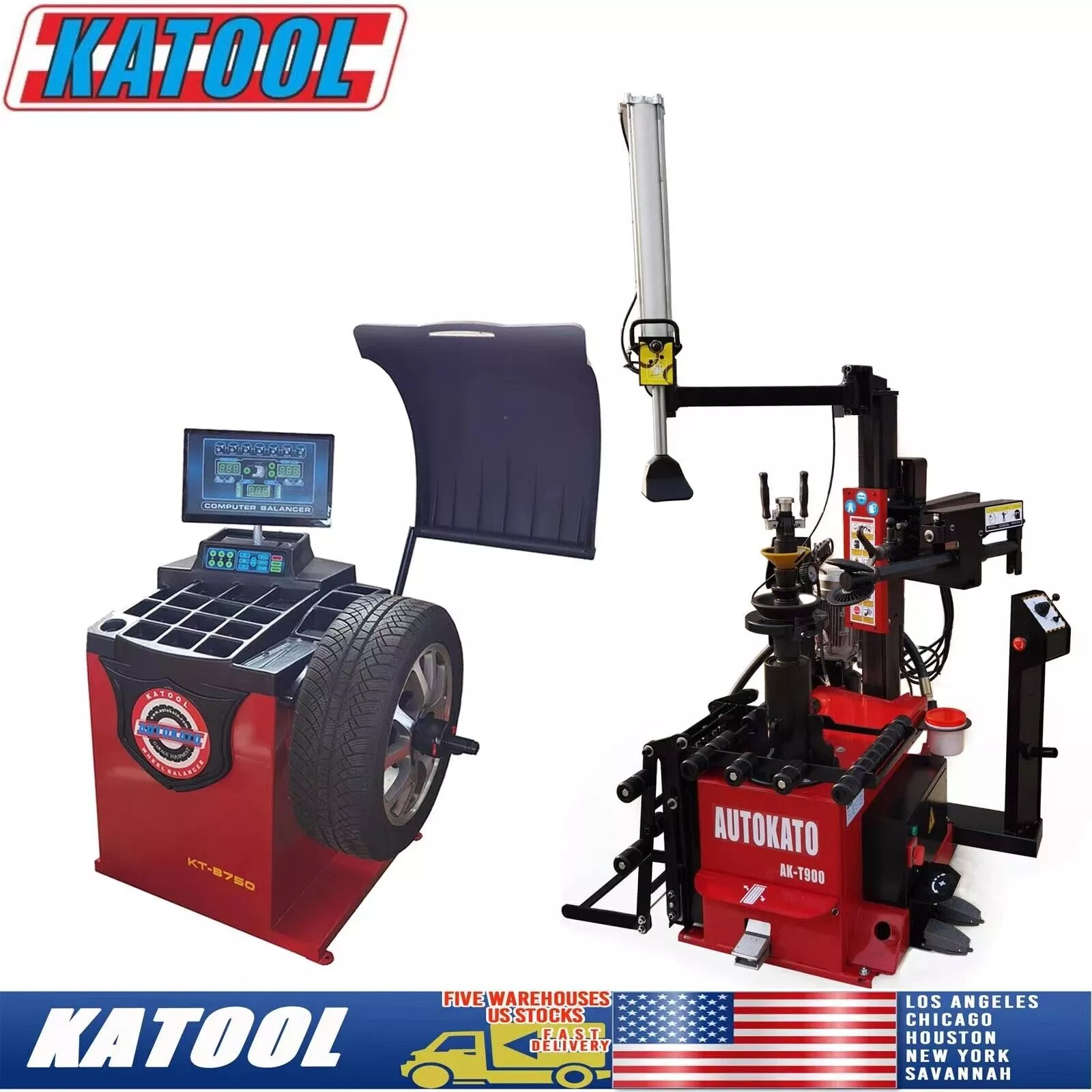

The KATOOL AK-T900 + KT-B750 combo is a professional-grade tire service solution designed for modern automotive shops. Featuring a fully hydraulic, leverless tire changer paired with a high-precision wheel balancer, this system is built to handle standard, low-profile, and run-flat tires with efficiency and rim-safe operation.
Key Features
- Leverless Hydraulic Tire Changer System Eliminates traditional pry bar use for safer, easier tire mounting
- Handles Difficult Tires with Ease Built-in assist arm supports run-flat and low-profile tires
- Heavy-Duty Hydraulic Power Dual hydraulic and gear motor system for strong, consistent operation
- Rim-Safe Design Stainless steel mounting head with protective covers prevents wheel damage
- Assist Arm + Wheel Lift System Reduces operator effort and improves workflow efficiency
- Precision Wheel Balancing 1g accuracy ensures smooth, vibration-free driving performance
- Industrial-Grade Construction Thick steel frame and reinforced components reduce vibration and improve durability
- Automatic Measurement System Quick input of wheel dimensions for faster balancing cycles
AK-T900 Tire Changer Specifications
| Feature | Specification |
| Max Wheel Diameter | 47 (1200 mm) |
| Max Wheel Width | 16 (406 mm) |
| Wheel Clamp Range | 1230 |
| Power Supply | 110V / 1 Phase / 60Hz |
| Gear Box Motor Power | 2.0 HP (1.5 kW) |
| Hydraulic Power | 1.5 HP (1.1 kW) |
| Rotation Speed | 6.8 rpm |
| Air Pressure | 116145 psi (0.81.0 MPa) |
| Net Weight | 414 lbs (188 kg) |
KT-B750 Wheel Balancer Specifications
| Feature | Specification |
| Rim Diameter | <30 |
| Wheel Width | 312 |
| Max Wheel Diameter | <880 mm |
| Balancing Speed | 180 rpm |
| Motor Power | 0.25 kW |
| Power Supply | 120V / 1 Phase |
| Rim Center Hole Diameter | <135 mm |
| Max Wheel Weight | <65 kg |
| Balancing Accuracy | 1 g |
| Measuring Time | ~7 seconds |
Why This Combo
- Fully hydraulic leverless system improves safety and ease of use
- Designed for modern low-profile and run-flat tire service
- Reduces technician fatigue with assist arm and wheel lift support
- High-precision balancing improves ride quality and reduces vibration
- Durable shop-grade construction built for continuous commercial use
- Fast setup and automated measurement improve workflow efficiency
