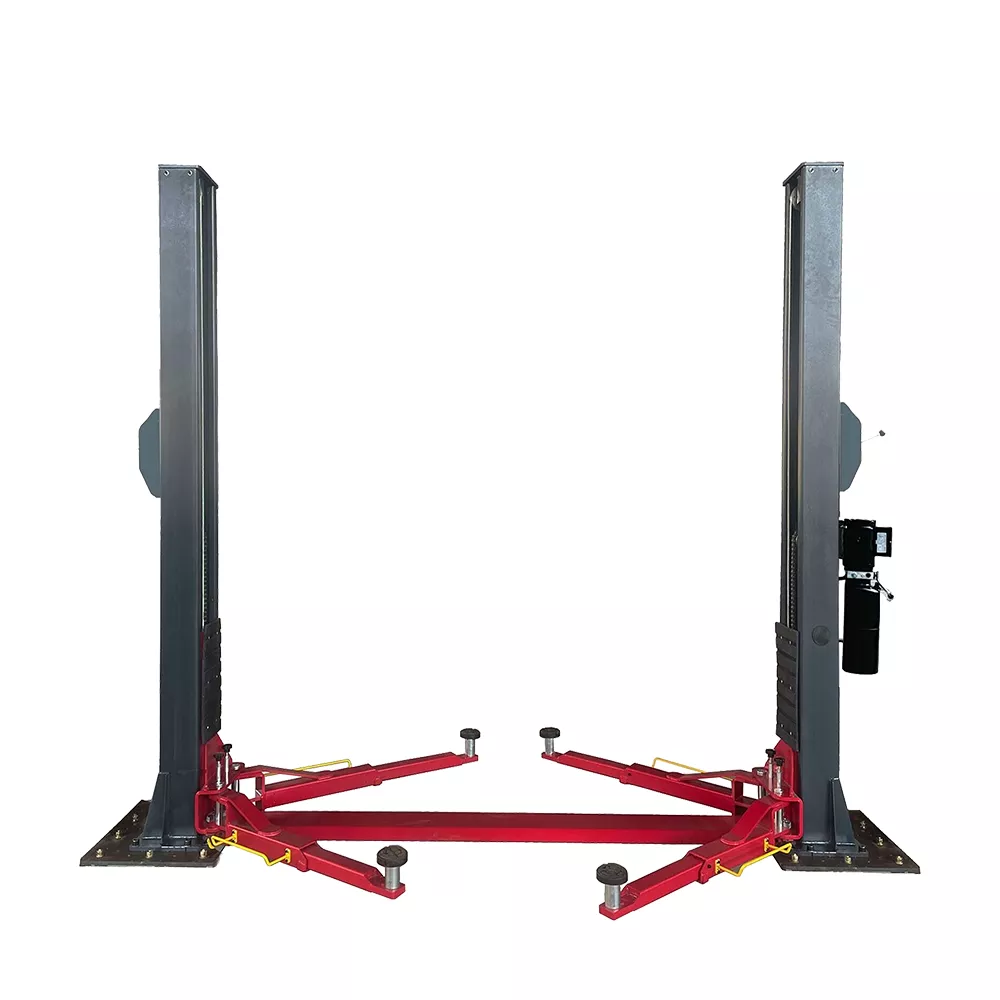

Katool Automotive Equipment KTH120D 12,000lb Two Post Lift
The Katool KTH120D Two Post Lift is a heavyduty, professionalgrade lift engineered for performance, reliability, and daily use in automotive repair shops, fleet service centers, and busy garages. With a 12,000lb capacity, durable construction, and userfriendly operation, this lift provides dependable vehicle access for a wide variety of cars, trucks, SUVs, and lightduty commercial vehicles.
Designed with safety, strength, and efficiency in mind, the KTH120D enhances shop productivity by simplifying undervehicle access for maintenance, inspections, and repairs. Its clearfloor design maximizes workspace, while adjustable arms and robust safety systems make lifting vehicles safer and more versatile.
Key Features
- 12,000lb lifting capacity handles a broad range of vehicles with ease
- Heavyduty steel construction for longterm reliability
- Symmetric arm design for improved vehicle positioning and access
- Clearfloor design maximizes workspace underneath vehicle
- Mechanical locking system with multiple lock positions
- Singlepoint lock release for convenient operation
- Adjustable lift arms to fit various vehicle lift points
- Ideal for professional automotive shops, commercial garages, and fleet facilities
| Specification | Details |
|---|---|
| Model | KTH120D |
| Brand | Katool Automotive Equipment |
| Product Type | Two Post Vehicle Lift |
| Lifting Capacity | 12,000lbs (5,443kg) |
| Lift Configuration | Symmetric arms / clearfloor design |
| Max Lifting Height | ~7274in (varies by setup) |
| Min Pad Height | ~4.5in (low profile) |
| Overall Height | ~111in (clearfloor) |
| DriveThrough Clearance | ~94in |
| Motor Power | 23HP (varies by regional configuration) |
| Power Supply | 220V / 60Hz / 1PH (standard) |
| Locking Positions | Multiple mechanical lock levels |
| Safety Features | Duallocking safety, cable equalization, automatic shutoff |
| Construction | Heavyduty structural steel |
| Color | Dark Gray and Red |
Understanding Two-Post Lift Weight Capacities
Two-post lifts are essential in automotive shops, but selecting the appropriate lift with the correct weight capacity is crucial for safety and equipment longevity.
Typical Weight Capacities
Two-post lifts generally have weight capacities ranging from 7,000 to 20,000 pounds, accommodating various vehicles from light-duty cars to heavy-duty trucks. It’s important to note that each lift arm also has its own weight limit. For instance, a lift with a 10,000-pound total capacity may have each arm rated for 2,500 pounds. Therefore, if a vehicle’s weight distribution exceeds this per-arm limit, the lift may not be suitable.
Calculating Required Lift Capacity
To determine the appropriate lift capacity:
- Calculate Rear Axle Weight: Multiply the vehicle’s total weight by the distance from the center of gravity to the front axle, then divide by the wheelbase.
- Calculate Front Axle Weight: Subtract the rear axle weight from the total vehicle weight.
- Determine Arm Capacity: Divide each axle’s weight by two to find the load per arm.
For example, if a vehicle weighs 9,000 pounds with a 6,000-pound front axle and a 3,000-pound rear axle, each arm would need to support 3,000 pounds. In this case, a 10,000-pound lift with 2,500-pound arms would be insufficient. Opting for a 12,000-pound lift would be safer.
Importance of Choosing a Lift with Adequate Capacity
Selecting a lift with a capacity that exceeds the vehicle’s weight requirements is advisable. This accounts for variables like vehicle modifications, additional equipment, or unexpected weight distributions. Many manufacturers recommend not exceeding 75% of a lift’s rated capacity to maintain safety margins.
Safe Operating Practices
- Adhere to Weight Limits: Never exceed the lift’s total or per-arm weight capacities.
- Proper Vehicle Positioning: Ensure the vehicle is centered and balanced on the lift to distribute weight evenly.
- Regular Maintenance: Follow the manufacturer’s maintenance schedule and conduct routine inspections to identify potential issues.
By understanding and respecting the weight capacities and operational guidelines of two-post lifts, automotive shops can ensure safer working conditions and prolong the lifespan of their equipment.
