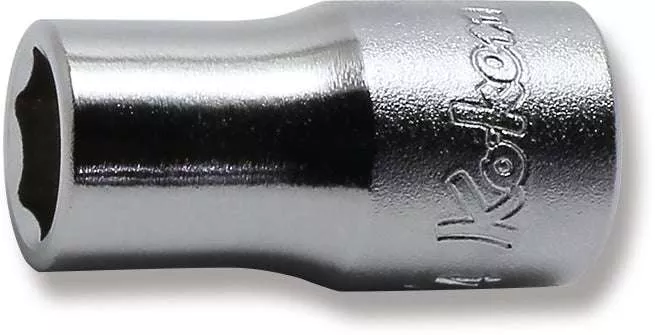

Ko-ken 2400A-1/8 1/4 Sq. Dr. Socket 1/8 6 point Length 22mm
SAE, 1/4″ drive, 6 Point, Standard Length, Chrome Hand Sockets. A six-point socket is designed to contact the head of a fastener well away from the corners so contact is made on the thickest part of the fastener. The edges of a socket are angled back a few degrees to allow the socket to slide easily over a fastener.
Product Specifications
- Drive Shape: Square
- Input Drive Size: 1/4″
- Length: 22mm
- Output Shape: 6 Point
- Output Size: 1/8″
- Type: 6 Point Socket
- Product Dimension (Refer Line Drawing Image):
- D1 Size: 5.7mm
- D2 Size: 11.2mm
- H Size: 2.7mm
- L Size: 22mm
