- Product Type: Capacitor Start
- HP: 1/3
- RPM: 3450
- Volts: 115/208-230
- Amps: 4.0/2.0
- Hz: 60
- Phase: 1
- Frame: 48
- Enclosure Type: TENV (Totally Enclosed Non Ventilated)
- Enclosure Material: Rolled Steel
- Mounting: Rigid Base
- Shaft Diameter: 0.500″
- Shaft Length: 1.5″
- Motor Shell Length: 6.25″
- Overall Length: 9.93″
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor: 1.0
- Bearings: Ball
- Efficiency: 69.0%
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Ship Weight: 27 lbs.

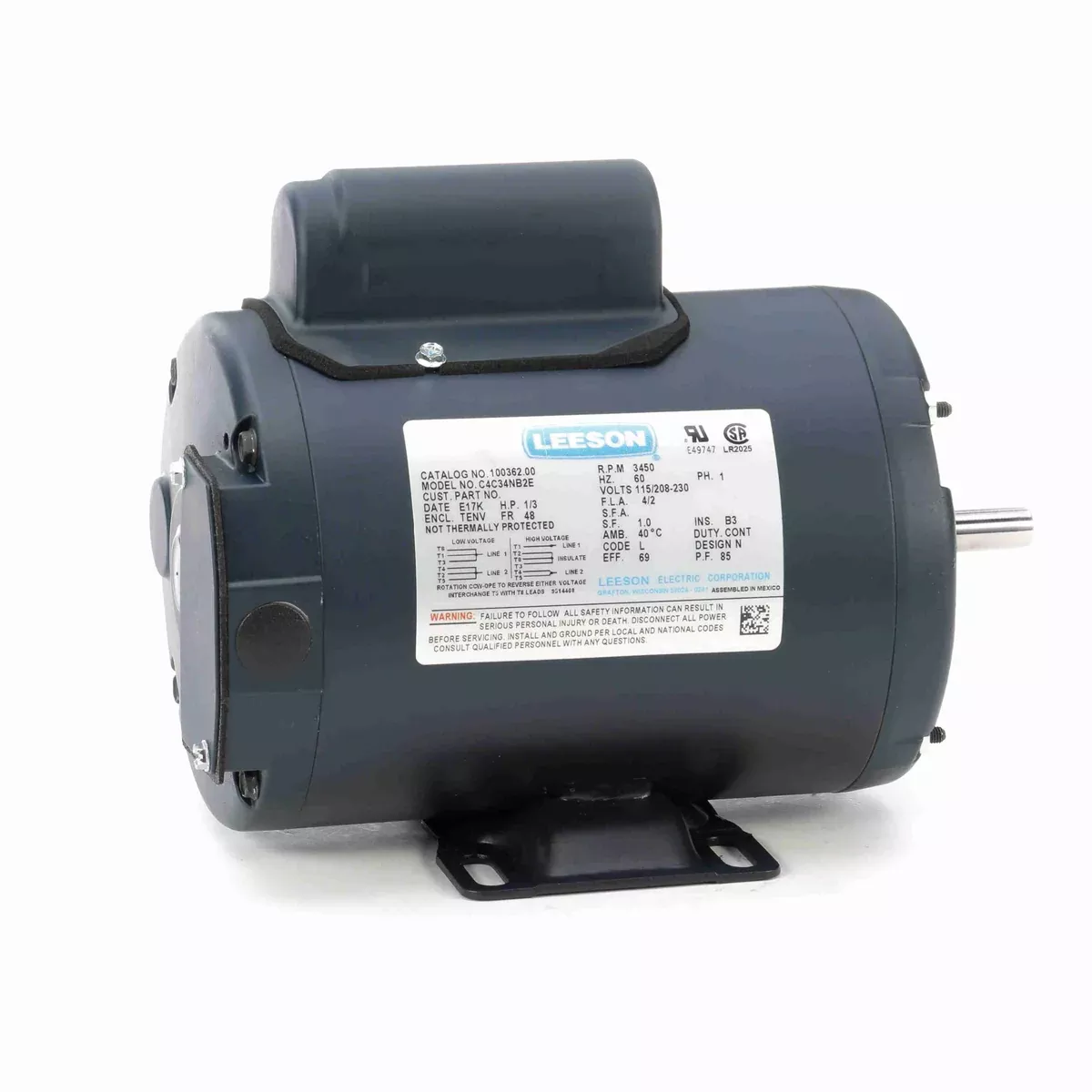

Leeson 100362.00 Capacitor Start General Purpose Motor
Original price was: $227.83.$139.09Current price is: $139.09.
