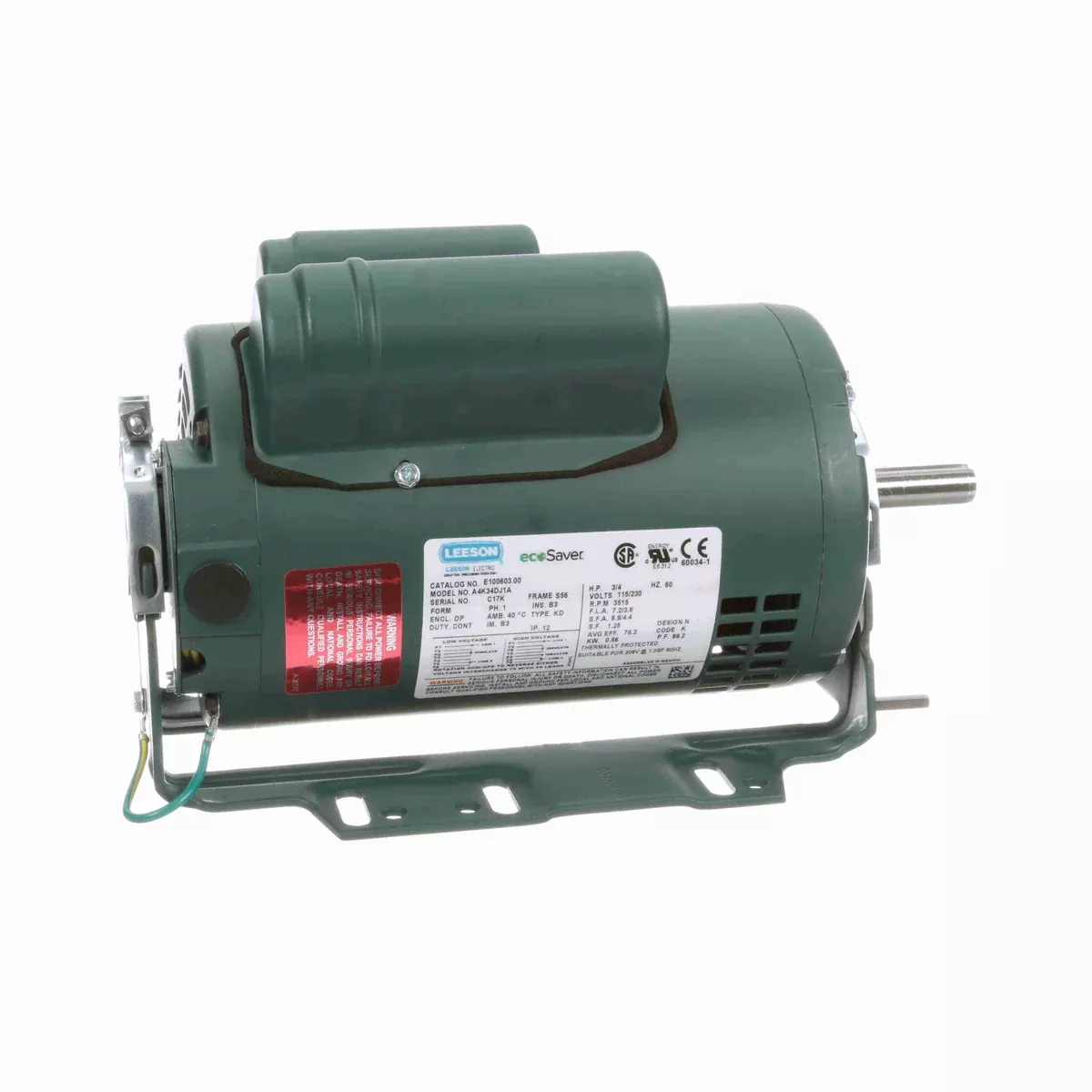

Leeson E100603.00 Capacitor Start/Capacitor Run General Purpose Motor

Original price was: $87.18.Current price is: $44.11.

Sale!
SKU: E100603 Category:
Share
  • Product Type: Capacitor Start/Capacitor Run
  • HP: 3/4
  • RPM: 3515
  • Volts: 115/230
  • Amps: 7.2/3.6
  • Hz: 60
  • Phase: 1
  • Frame: 56
  • Enclosure Type: DP (Dripproof)
  • Enclosure Material: Rolled Steel
  • Mounting: Resilient Base
  • Shaft Diameter: 0.625″
  • Shaft Length: 1.875″
  • Motor Shell Length: 7.50″
  • Overall Length: 12.31″
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor: 1.25
  • Bearings: Ball
  • Efficiency: 76.2%
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Ship Weight: 28 lbs.
