SKU: 14026-4 | UPC: 807298017075

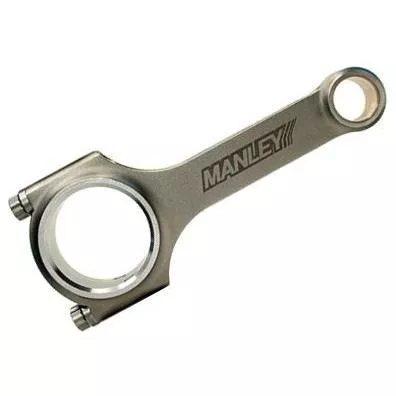

Manley 1994-2001 Acura Integra GSR 1.8 VTEC DOHC B18C H-Beam Connecting Rod Set
Manley 14026-4 H-Beam connecting rod set fits 1994-2001 Acura Integra B18C 1.8L VTEC DOHC engines in GS-R and Type R models. Forged 4340 steel construction provides strength for high-revving builds up to 89mm stroke with ARP 2000 bolts. Weight matched at 540 grams per rod ensures balanced performance in demanding track applications.
Key Features
- Exacting Tolerances: H-Beam rods finished to precise tolerances for consistent performance and engine balance.
- Attention to Detail: Final hone size thread detail bend and twist controlled for highest quality rods.
- Track Performance: H-Beam design handles high RPM and power levels in B18C engines.
- Bolt Options: ARP 2000 3/8 x 1.5 inch bolts included for strong builds.
- Forged 4340 Steel: Aircraft grade material heat treated magnafluxed with H-Tuff PVD coated wrist pin bushings.
Product Notes
- Designed for 137mm center-to-center length 51.5mm big end bore 22mm small end bore.
- Rod bearings and pistons sold separately verify compatibility.
- Set includes 4 rods for inline-4 B18 engines ships ready to install.
Installation Notes
- Professional installation recommended.
- Torque ARP bolts to Manley specs using ARP moly lubricant.
- Compatible with stock crank aftermarket pistons and bearings.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2001 | Acura | Integra | GS |
| 1994-2001 | Acura | Integra | GS-R |
| 1994-2001 | Acura | Integra | LS |
| 1994-1998 | Acura | Integra | RS |
| 1995-1996 | Acura | Integra | Special Edition |
| 1997-1998 | Acura | Integra | Type R |
| 2000-2001 | Acura | Integra | Type R |
Why Choose Manley?
- Proven designs used in racing engines worldwide.
- Full inspection process including magnaflux and sonic testing.
- Engineering focused on B-series reliability and power.
Frequently Asked Questions
- Q: Will this rod set fit 1996 Integra GS-R B18C1?
A: Yes fits all 1994-2001 Acura Integra GS-R with B18C1 89mm stroke engines. - Q: What material and finish do these rods have?
A: Forged 4340 steel with H-Tuff PVD coated wrist pin bushings for reduced friction. - Q: Are bolts included and what is the warranty?
A: ARP 2000 bolts included backed by Manley limited lifetime warranty on defects.
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock – ships same or next business day
- Packaging: Protective box 14 x 8 x 4 inches
- Weight: 4.8 pounds
