Manual Rotator/Power Tilter 1000 (AC) | Custom Build Vacuum Lifter
This lifter features powered 90 tilt, continuous 360 rotation, and fast attach and release times.
Ideal for production and fabrication facilities.
Rotator/Tilter
Specifications

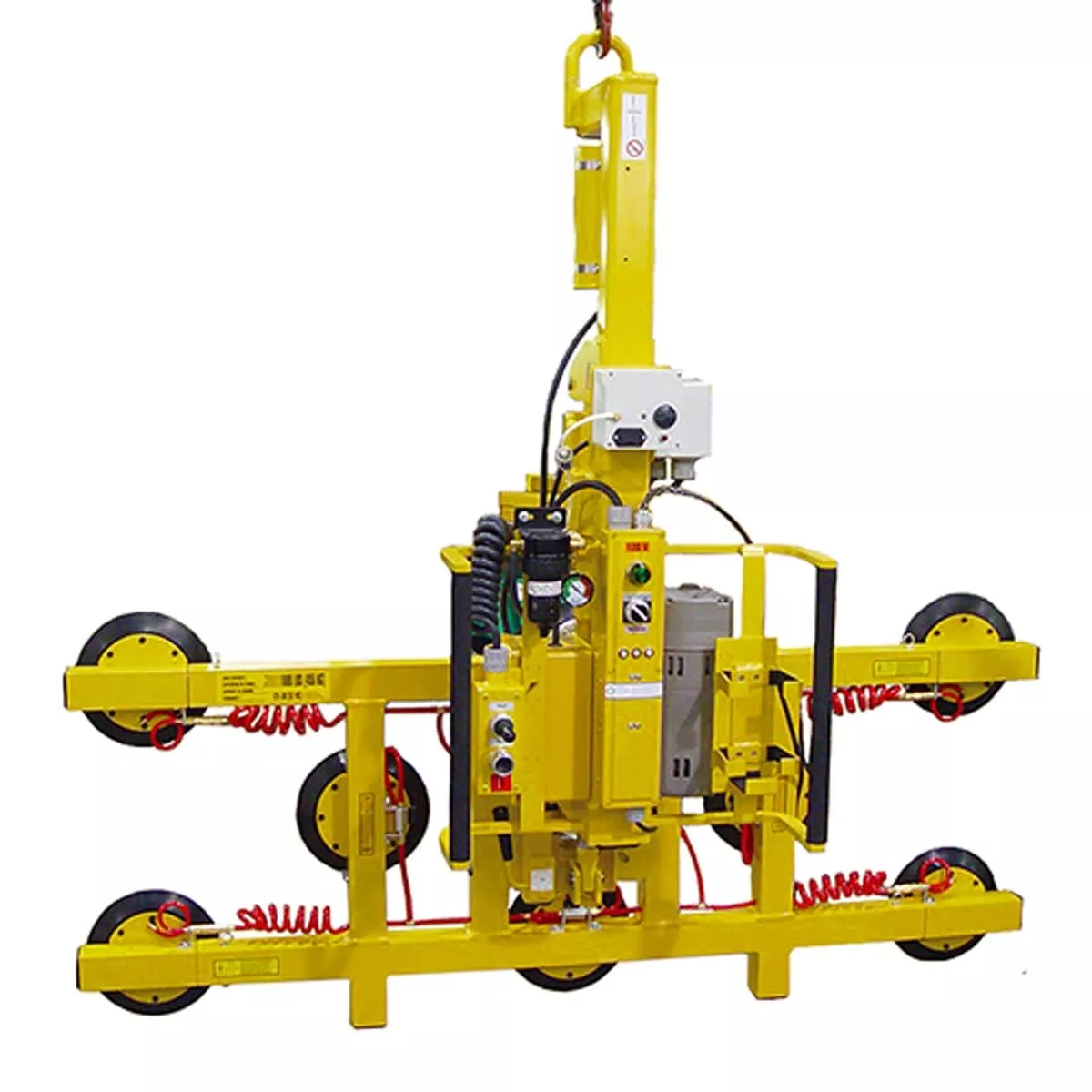

MRPT89AC Vacuum Lifter shown with optional Telescoping Pad Arms, Vacuum Loss Warning Buzzer and Individual Pad Shutoffs
Standard Pad Spread:
29-1/4″ x 59-1/4″ [74 cm x 150 cm]
Number / Size of Vacuum Pads:
8 / 9″ [23 cm] diameter pads
Maximum Load Capacity:
1000 lbs [455 kg]
Weight of Lifter:
278 lbs [126 kg]
Standard Operating Power:
120 volts AC, 60 hertz, 12 amps
Apply / Release Times:
4 seconds / 3 seconds (approx)
Load Movement:
Manual rotation, 360 edgewise, with locking at each quarter point
Power tilt, 90 between upright and flat
Time for 90 Tilt:
9 seconds (approx)
Tilt Duty:
60 tilts per hour
Standard Features:
Green lift light
Movable control pendant
Vacuum gauge
Vacuum reserve tank
Vacuum line filter
Spring-mounted vacuum pads
Twist-lock electrical plug
Blow-off for quick release
| Load Capacity | 1000 lbs [455 kg] |
| Per-Pad Capacity | 125 lbs [57 kg] |
| Pad Model | VPFS9 |
| AC Power | Standard |
| AC Volts | 120 VAC |
| AC Amps | 12 |
| Hertz | 50/60 |
| Phase | 1 |
| Apply Time (AC) | 4 Seconds |
| Release Time (AC) | 3 Seconds |
| Duty Cycle (Lifts/Hr) (AC) | 60 |
| Weight (AC) | 278 lbs |
| Manipulation | Continuous |
| Tilt | 90 |
| Tilt Power | Power |
| Rotation | 360 |
| Rotation Power | Manual |
| Max Pad Spread (L) | 59.25″ [150 cm] |
| Min Pad Spread (L) | 59″ |
| Max Pad Spread (W) | 29.25″ |
| Min Pad Spread (W) | 29.25″ |
| Max Height | 69.25″ |
| Min Ambient Temp | 32 F |
| Min Load Temp | 32 F |
| Max Ambient Temp | 100 F |
| Max Load Temp | 100 F |
