Home » Shop » hot sale » Marathon X9225-5/8″ Diameter Pedestal Fan Motor – X922

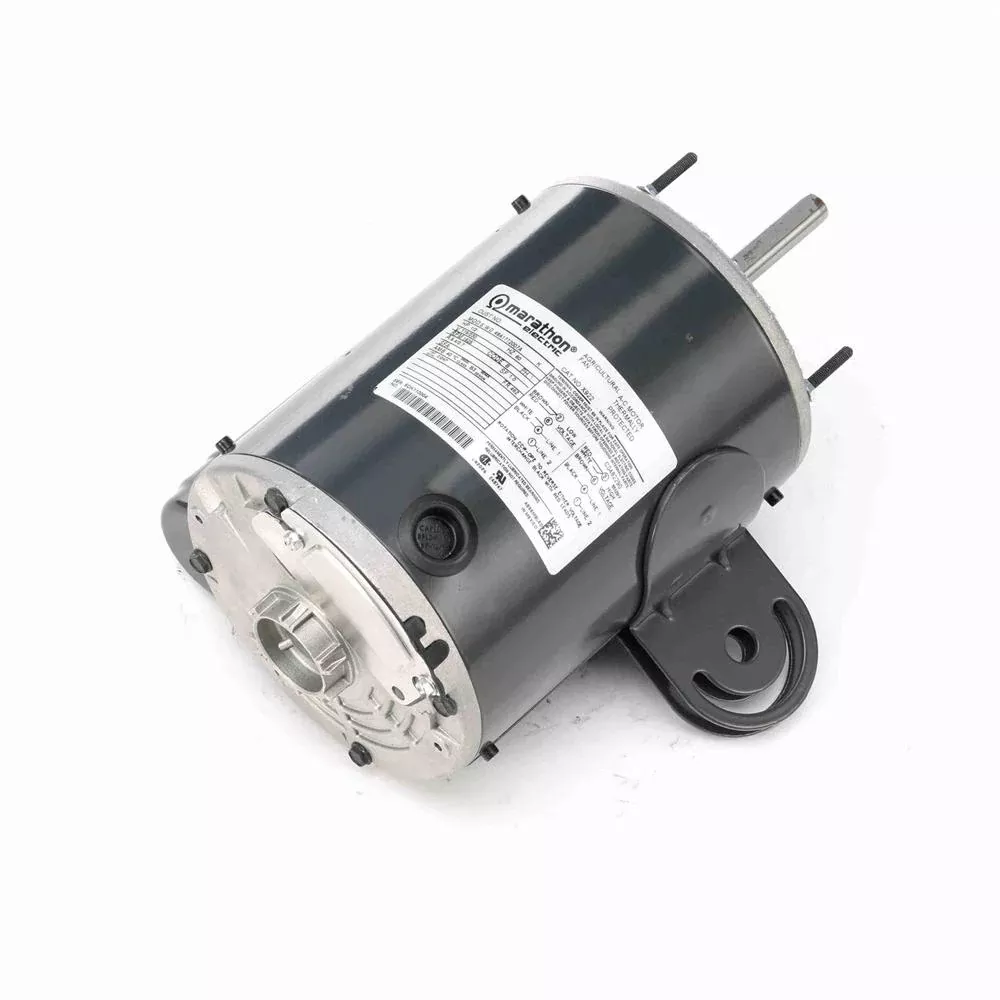

Marathon X9225-5/8″ Diameter Pedestal Fan Motor – X922

Original price was: $156.82.Current price is: $79.12.

Sale!
SKU: X922 Category:
Share
  • Amps: 5.4/2.7
  • Bearings: Ball
  • Capacitor: Included
  • Duty Cycle: Continuous
  • Efficiency: 0.72
  • Enclosure Material: Steel
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Frame: 48Z
  • HP: 1/2
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 048A17T2007
  • Maximum Ambient Temperature: 40° C
  • Motor Diameter: 5-5/8″
  • Motor Shell Length: 6.75″
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 11.31″
  • Phase: 1
  • Product Type: PSC (Permanent Split Capacitor)
  • Rotation: Reversible
  • RPM: 1625
  • Service Factor: 1
  • Shaft Diameter: 1/2″
  • Shaft Length: 2.56″
  • Thermal Protection: Automatic
  • Volts: 115
  • Volts: 230
  • Ship Weight: 27 lbs.
