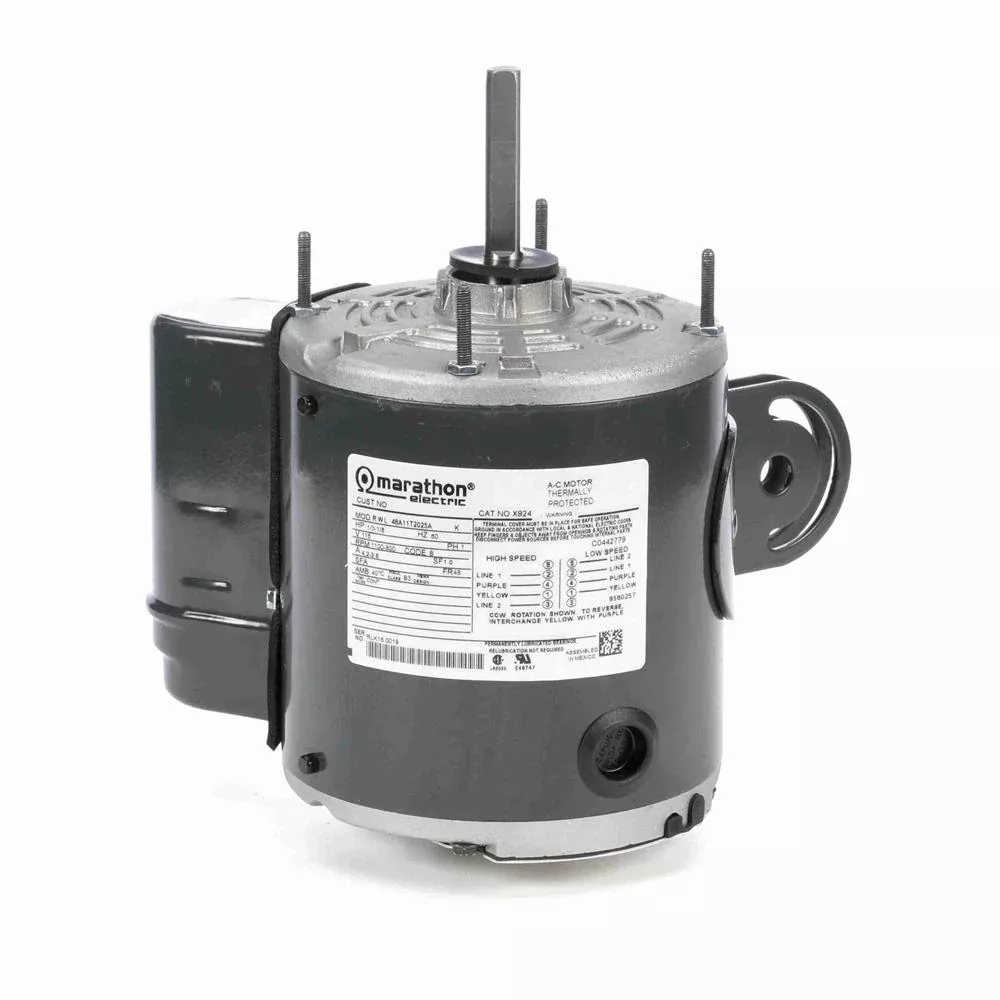

Marathon X9245-5/8″ Diameter Pedestal Fan Motor – X924

Original price was: $186.33.Current price is: $107.07.

Sale!
SKU: X924 Category:
Share
  • Amps: 4.2
  • Bearings: Ball
  • Capacitor: Included
  • Duty Cycle: Continuous
  • Efficiency: 0.636
  • Enclosure Material: Steel
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Frame: 48
  • HP: 1/3
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model : 048A11T2025
  • Maximum Ambient Temperature: 40° C
  • Motor Diameter: 5-5/8″
  • Motor Shell Length: 5.25″
  • Mounting Orientation: Horizontal
  • Mounting: Yoke
  • Number of Speeds: 2
  • Overall Length: 9.81″
  • Phase: 1
  • Product Type: PSC (Permanent Split Capacitor)
  • Rotation: Reversible
  • RPM: 1100
  • Service Factor: 1
  • Shaft Diameter: 1/2″
  • Shaft Length: 2.56″
  • Thermal Protection: Automatic
  • Volts: 115
  • Ship Weight: 19 lbs.
