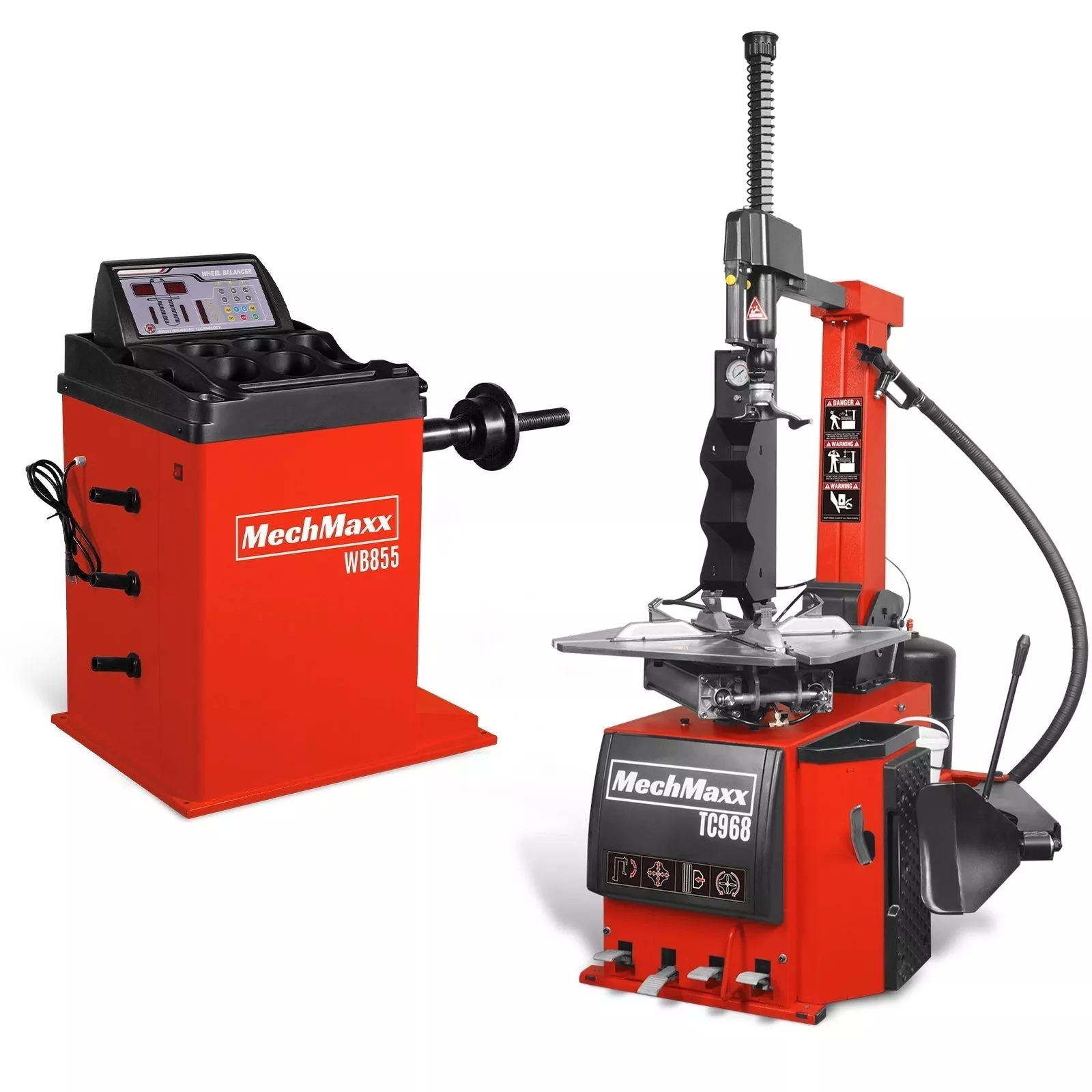

The MechMaxx TC968 + WB855 is a high-performance tire change and balance combo for shops servicing larger wheels, low-profile tires, and high-performance vehicles. The TC968 28-inch tilt-back tire changer delivers 6,170 lbs of bead breaking force across a 1426 inch inside rim range, with a foot-controlled inflator and tilt-back design for easier access on bigger tires. Paired with the WB855 wheel balancer, it handles the full service workflow from mount to balance.
The pneumatic hex shaft provides fast, secure table locking, and the WB855 balances wheels from 10 to 24 inches with 1 gram accuracy at 200 RPM. Both machines run on 110V single-phase power.
Key Features
- 28 inside rim capacity (1426 in) handles larger rims beyond standard 24 swing arm range
- 6,170 lb bead breaking force extra power for low-profile and run-flat tires
- Tilt-back design improved access during mounting and demounting
- Foot-controlled inflator hands-free inflation for a faster workflow
- Pneumatic hex shaft lock fast, secure table positioning
- WB855 wheel balancer with 1 gram accuracy at 200 RPM
- 110V / 60Hz / 1-phase power for both machines
TC968 Tire Changer Specifications
| Specifications | Details |
|---|---|
| Voltage | 110v / 60Hz / 1 phase |
| Motor Power | 1.5 HP |
| Type | Tilt Back |
| Bead Blaster | Hand Held |
| Assist Arm | N/A |
| Hex Shaft | Pneumatic Lock |
| Inside Rim Clamp Range | 1426 in |
| Outside Rim Clamp Range | 1224 in |
| Mount Head | Stainless Steel & Plastic |
| Inflator | Foot-Controlled |
| Max Tire Diameter | 43 in |
| Rim Width | 315 in |
| Working Pressure | 117145 psi (810 bar) |
| Bead Breaking Force | 6,170 lbs |
| Machine Weight | 518 lbs (net) |
WB855 Wheel Balancer Specifications
| Specifications | Details |
|---|---|
| Voltage | 110v / 60Hz / 1 phase |
| Motor Power | 1/3 HP |
| Shaft Size | 40 mm |
| Rim Diameter | 1024 in |
| Rim Width | 1.520 in |
| Max Tire Diameter | 40 in |
| Max Tire Weight | 154 lbs |
| Balance Accuracy | 1 gram |
| Balancing Speed | 200 RPM |
| Machine Weight | 157 lbs (net) |
Documents
- TC968 Product Manual
- TC968 Parts Manual
- WB855 Product Manual
- WB855 Parts Manual
- Wheel Balancer Calibration Guide
