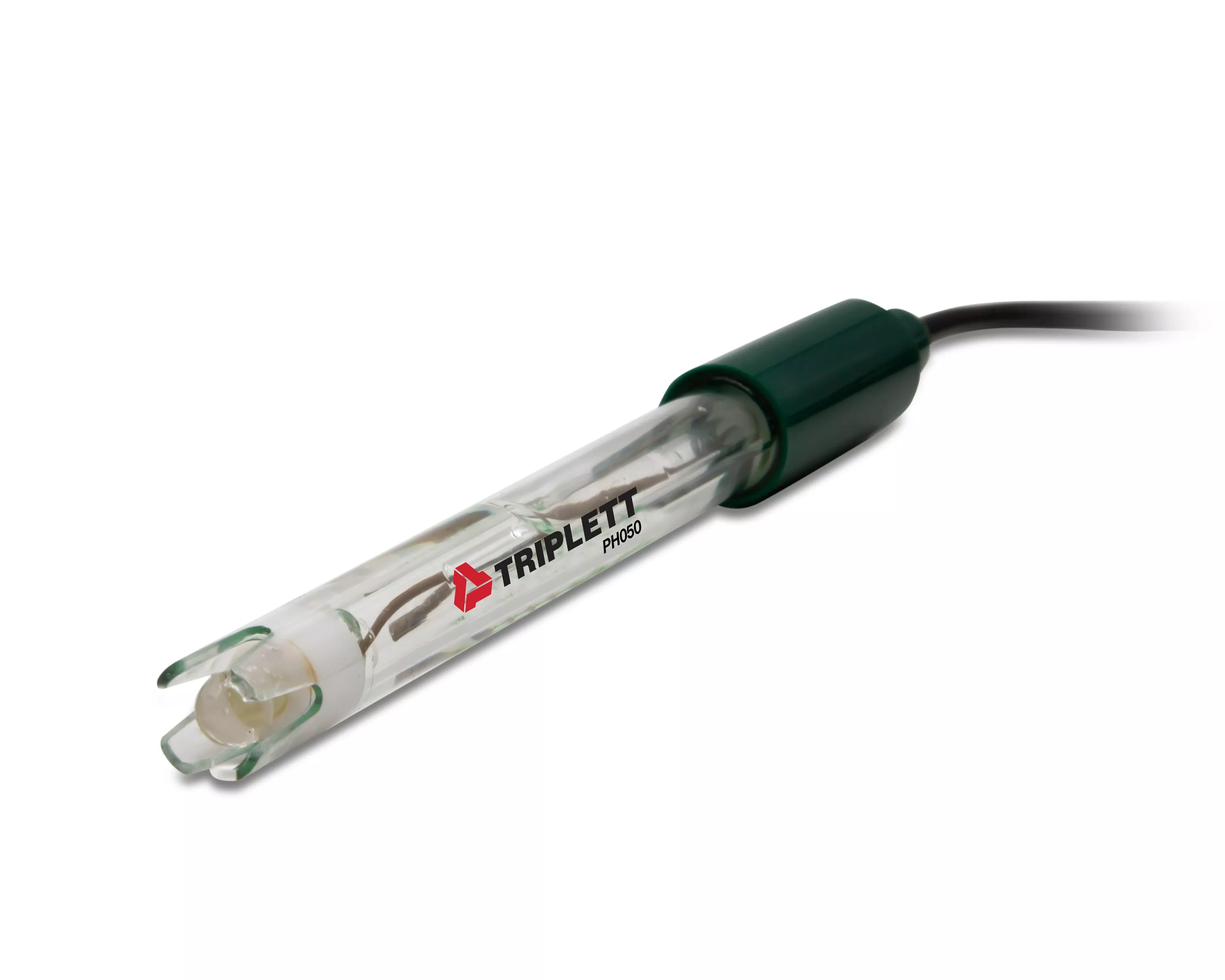

The Triplett Model PH050 Mini pH electrode with sealed gel reference solution and detachable bulb guard can be used with any pH meter that has a BNC input connector. Read More>
DESCRIPTION
The Triplett Model PH050 Mini pH electrode with sealed gel reference solution and detachable bulb guard can be used with any pH meter that has a BNC input connector. It features rugged, polycarbonate construction with a glass pH sensing bulb surrounded by protective teeth. 0 to 14pH range. 32 to 176F (0 to 80C) operating temperature. Includes 39 (1m) cable with BNC connector and storage solution bottle. 6 month warranty.
CATEGORY: PH AND CONDUCTIVITY METERS
Features
- Sealed gel reference solution and detachable bulb guard
- Rugged, polycarbonate construction
- Glass pH sensing bulb surrounded by protective teeth
- 0 to 14pH range
- 32 to 176F (0 to 80C) operating temperature
- For use with any pH meter that has a BNC input connector
Specification
| PH050 | |
| pH Range | 0 to 14pH |
| Operating Temperature | 32 to 176F (0 to 80C) |
| IsopotentialPoint | ~7.0pH |
| Material | Polymer housing with glass bulb |
| Reference Junction | Ceramic |
| Reference Type | Ag/AgCl (Silver/Silver Chloride |
| Cable Length | 39″ (1m) CR2032 Batteries |
| Connector | BNC |
| Dimensions | 5 x 0.4 (126 x 10mm) |
