Now you can see a twelve-cylinder secondary ignition parade on your Pico Scope. Mixmaster can produce a parade display of up to twelve cylinders using a single channel of your Pico Scope. If you have a two-channel or four-channel Pico Scope the Mixmaster will also display two engine banks separately with up to six cylinders per bank.
Pico Mixmaster is battery-powered, rugged and conveniently portable. It is supplied with a set of four secondary ignition leads, three BNC leads to connect to the oscilloscope, and an engine-block ground lead. It has a trigger output to help synchronise the scope to a known cylinder, and a switch to deal with negative-going wasted-spark signals. There’s no software to install, and it works with PicoScope or any other automotive oscilloscope program.
Ignition parade waveforms from a wasted spark ignition system
The MixMaster separates the power and spark onto separate channels.

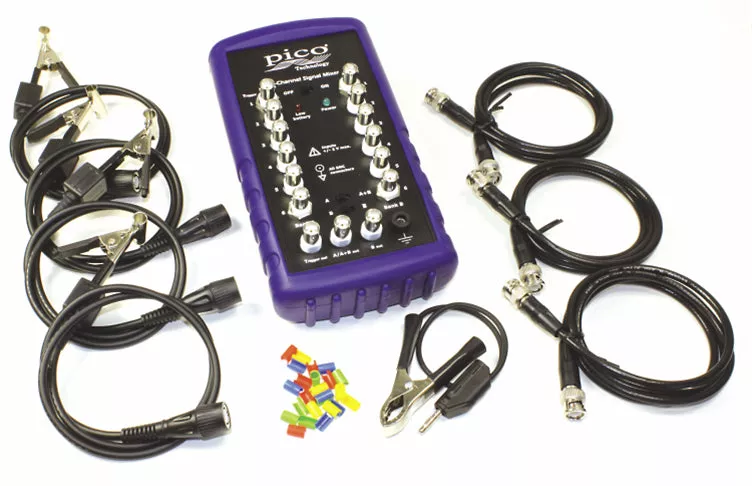

MixMaster Contents
Pico Mixmaster base unit with holster boot
Ground Lead (14-1/2 inches long)
4 Secondary Pickup leads (35 inches long) *
3 BNC leads (4-ft long) to connect to scope module
User Guide
* You can purchase extra sets of secondary pickup leads for use with up to 12
channels. Click here for set of 4 leads!
System Requirements
The Pico Mixmaster is designed to operate with any Pico Scope.
