Product Description

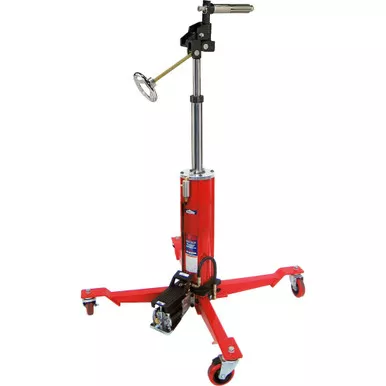

300 Lbs. Capacity Telescopic Under Hoist Air / Hydraulic Clutch Jack
INTENDED USE:
Designed for the removal, installation and transportation (in the lowered position) of14 and 15-1/2 heavy duty clutches and flywheels on trucks that are raised by anin-ground or above-ground lift.
FEATURES:
- U.S. Patent No. 7,171,807
- Tilting saddle activated by an integrated screw with machine handle enables the clutch to be positioned in either a horizontal position for clearing underneath truck or vertical position for installation and removal.
- 2 and 1-3/4 diameter spline shafts rotate 360Ëš for clutch and engine alignment.
- Air/hydraulic foot pump provides hands free operation and easy, convenient lifting.
- Metered pump provides safe lowering of load.
- Two-stage flash chromed rams inhibit rust from entering hydraulic system.
- Polyurethane wheels provide protection for tile and epoxy floors.
- U.S. PATENT NO. 7,171,807
