SKU: 16-94-2645

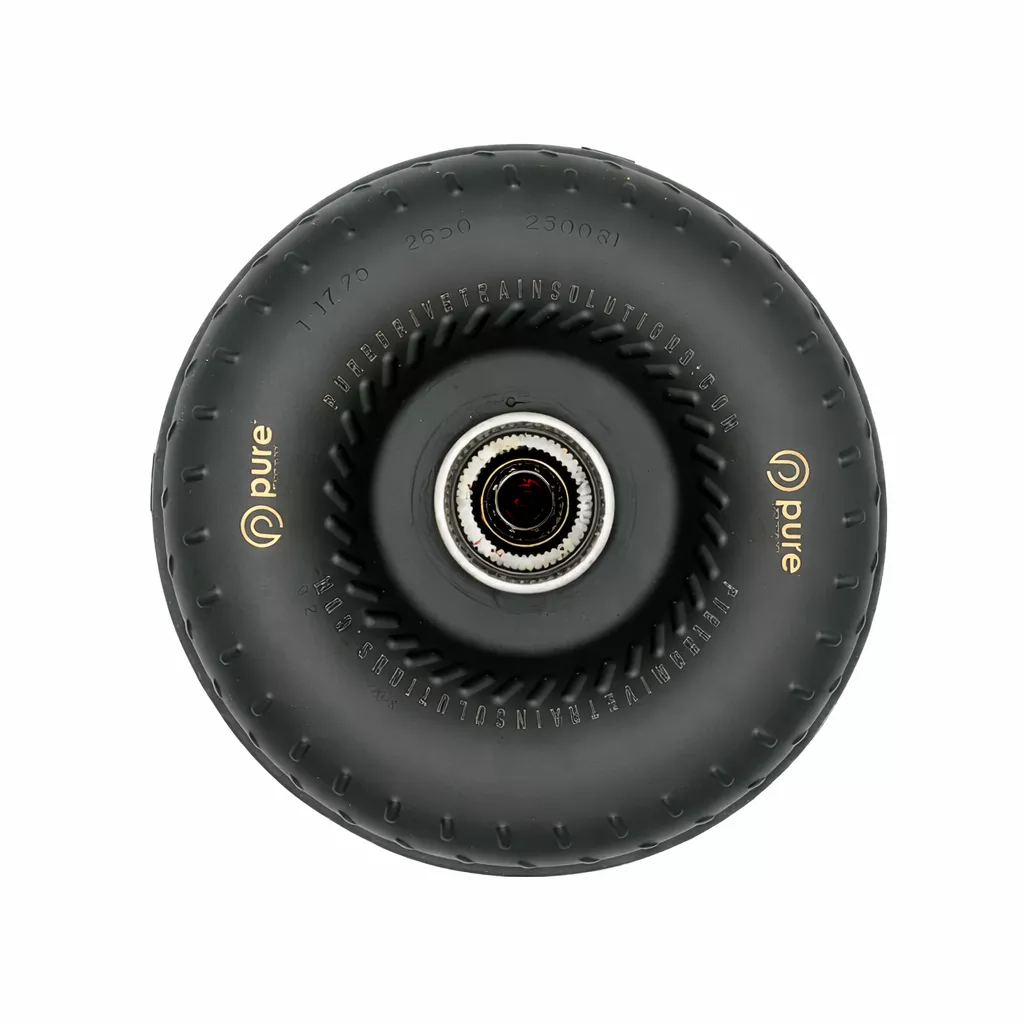

PDS 8HP51 High Performance Billet Race Torque Converter -26/45 Stator – AWD 2015-2018 BMW X5 M F85 X6 M F86
The PDS 8HP51 High Performance Billet Race Torque Converter with -26/45 Stator upgrades ZF 8HP51 AWD transmissions in BMW performance SUVs. Direct fit for 2015-2018 BMW X5 M (F85) and X6 M (F86). Delivers 2600-4500 RPM stall speed for quicker launches and supports over 1500 horsepower in race builds.
Key Features
- Billet front cover: 6061-T6 aluminum construction resists flex and failure under extreme torque
- -26/45 stator design: Aggressive pitch optimizes fluid coupling for high stall and efficient power transfer in AWD setups
- Furnace brazed fins: Impeller and turbine withstand high heat and RPM for consistent performance
- Multi-disc lockup clutch: Provides firm lockup at 4500+ RPM to reduce slip and improve top-end power
- Precision balanced assembly: Ensures vibration-free operation and longer transmission life
Product Notes
- Designed for drag racing and high horsepower modified vehicles
- Requires proper fluid and break-in procedure for maximum longevity
- Special order item with 2-4 week lead time
Installation Notes
- Professional installation recommended.
- Transmission removal required for replacement
- Compatible with OEM pilot bushing and flexplate hardware
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2018 | BMW | X5 | M (F85) |
| 2015-2018 | BMW | X6 | M (F86) |
Why Choose PDS?
- Track record in NHRA Pro Mod and drag racing classes
- Hand-built in USA with aerospace grade materials
- Developed by ZF transmission specialists for exact fit and function
Frequently Asked Questions
- Q: Will this torque converter fit my 2016 BMW X5 M?
A: Yes it bolts directly to 8HP51 AWD transmissions in all 2015-2018 BMW X5 M (F85) and X6 M (F86) models without modifications. - Q: What materials are used in construction?
A: Features billet 6061-T6 aluminum front cover, forged steel piston, and TIG welded components for strength. - Q: What warranty is provided?
A: Backed by 1-year unlimited mileage warranty covering manufacturing defects when installed by certified shop.
Shipping & Handling
- Method: UPS Ground or FedEx Freight
- Availability: Special order ships within 2-4 business days of order confirmation
- Packaging: Double-wall cardboard box with foam inserts 22in x 22in x 14in
- Weight: 62 lbs
