SKU: 16-87-2645

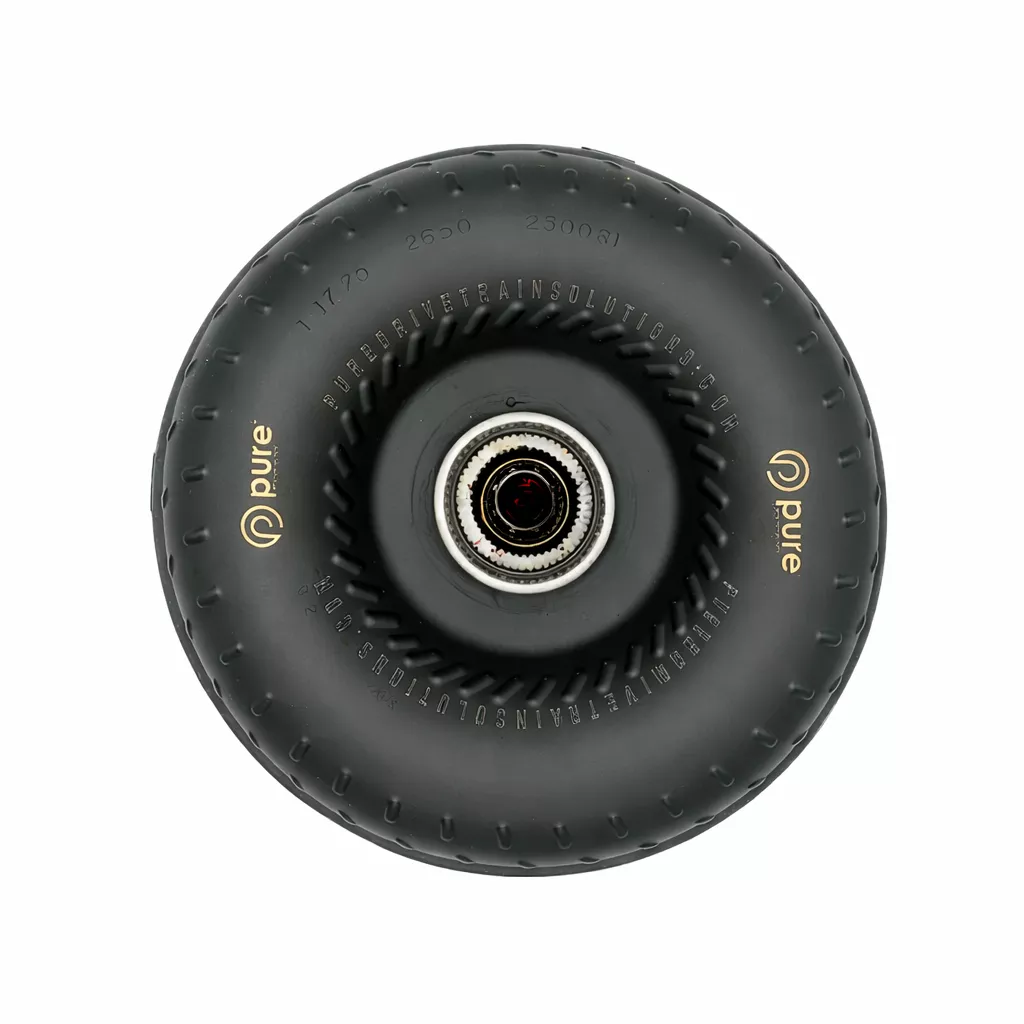

PDS 8HP75 High Performance Billet Race Torque Converter – 26/45 Stator – AWD for 2018+ BMW M5 F90, M3/M4 xDrive G80/G82/G83
This PDS torque converter upgrades ZF 8HP75 AWD transmissions in high-power BMW M vehicles. Built for drag racing and track abuse it delivers quicker launches through its 26/45 stator design. Handles over 1200 horsepower with billet components that resist flex and heat.
Key Features
- Billet Front Cover: CNC-machined 7075 aluminum prevents ballooning under extreme torque and RPM
- 26/45 Stator: Multi-angle stator pitch raises stall speed to 4500+ RPM for immediate power transfer and reduced slip
- Furnace-Brazed Fins: Welded aluminum fins increase efficiency and lockup firmness at high speeds
- Heavy-Duty Sprag: Reinforced internals support AWD drivetrains in BMW M cars pushing 1000+ RWHP
- Precision Balanced: Factory-balanced assembly to 100g-inch ensures smooth operation and zero vibration
Product Notes
- Designed exclusively for ZF 8HP75 AWD transmissions no core charge required
- Break-in recommended with PDS ATF for 500 easy miles before full power runs
- Ships as special order verify transmission model before purchase
Installation Notes
- Professional installation recommended.
- Transmission must be removed requires bench work for converter swap
- Uses OEM mounting studs and flexplate bolts torque to spec 74 ft-lbs
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2018-2024 | BMW | M5 | F90 All |
| 2021-2024 | BMW | M3 | G80 xDrive Sedan |
| 2021-2024 | BMW | M4 | G82 xDrive Coupe |
| 2022-2024 | BMW | M4 | G83 xDrive Convertible |
Why Choose PDS?
- 20+ years building converters for NHRA and Formula Drift teams
- Made in USA with aerospace-grade materials for drag and circuit reliability
- Dyno-tested every unit to ensure consistent stall and lockup performance
Frequently Asked Questions
- Q: Will this fit my G80 M3 xDrive with 8HP75?
A: Yes direct replacement for OEM torque converter in all 2021+ G80 M3 xDrive models verify transmission code 8HP75 - Q: What materials are used in construction?
A: Billet 7075 aluminum cover billet steel piston furnace-brazed aluminum fins and billet hubs throughout - Q: What is the warranty and break-in process?
A: 1-year unlimited mileage warranty with proper break-in use PDS synthetic ATF for first 500 miles no WOT launches
Shipping & Handling
- Method: UPS Freight Ground
- Availability: Special order ships in 3-5 business days
- Packaging: Double-boxed protection 20x20x12 inches
- Weight: 38 lbs product 45 lbs shipping
