SKU: 16-82-2655

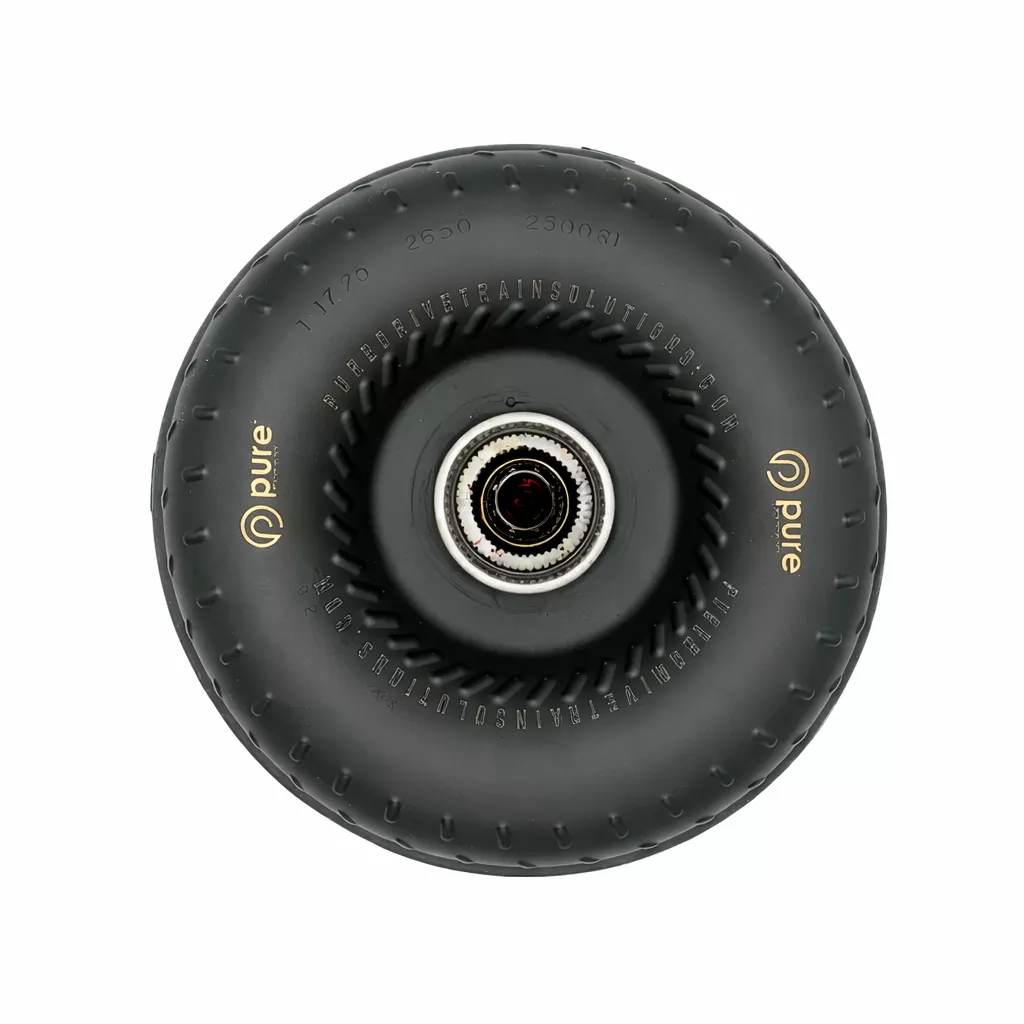

PDS 8HP95 High Performance Billet Race Torque Converter – 26/55 Stator – AWD for 2015-2019 BMW X5M X6M
The PDS 8HP95 High Performance Billet Race Torque Converter with 26/55 stator upgrades ZF 8HP AWD transmissions in 2015-2018 BMW X5 M (F85) and 2015-2019 BMW X6 M (F86). Built from billet materials it transfers massive horsepower with reduced slip for faster acceleration and track dominance. Racers rely on its durability during high-stress launches and sustained high RPM runs.
Key Features
- Billet 6061-T6 Aluminum Cover: Withstands flex under 1200+ HP loads prevents ballooning for consistent performance
- 26/55 AWD Stator: Delivers precise torque multiplication suited to xDrive systems improves low-end pull and shift response
- Furnace Brazed Fins: Enhances heat resistance and fluid coupling efficiency over stock stamped designs
- Multi-Disc Lockup Clutch: Provides firm direct drive hold at highway speeds reduces heat buildup during races
- Dynamically Balanced: SFI certified to 1500 RPM eliminates vibrations extends transmission life
Product Notes
- Confirm ZF 8HP95 AWD transmission with 34-spline input shaft prior to purchase
- Use Shell L12108 or ZF Lifeguard 8 fluid for peak operation
- Oversized item requires secure freight handling during transit
Installation Notes
- Professional installation recommended.
- Remove transmission fill pan to access converter bolts apply assembly lube to hub
- Stock flexplate and pump stator support hardware compatible no modifications needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2018 | BMW | X5 M | F85 |
| 2015-2019 | BMW | X6 M | F86 |
Why Choose PDS?
- Specializes in ZF 8HP race components with drag strip proven designs
- Manufactured in USA using CNC machined billet for exact tolerances
- Engineered by transmission builders for real-world high HP reliability
Frequently Asked Questions
- Q: Will this fit my 2017 BMW X5 M xDrive?
A: Yes it bolts directly to ZF 8HP95 AWD in all 2015-2018 X5 M F85 models with S63 engine - Q: What materials are used in construction?
A: Billet 6061-T6 aluminum cover and piston furnace brazed steel impeller turbine 100% electron beam welded - Q: What warranty coverage applies?
A: 1-year unlimited mileage warranty covers defects in materials workmanship excludes abuse or improper installation
Shipping & Handling
- Method: UPS Freight or FedEx Freight
- Availability: In stock – ships same or next business day
- Packaging: Double-wall cardboard box 22 x 22 x 13 inches
- Weight: 58 lbs
