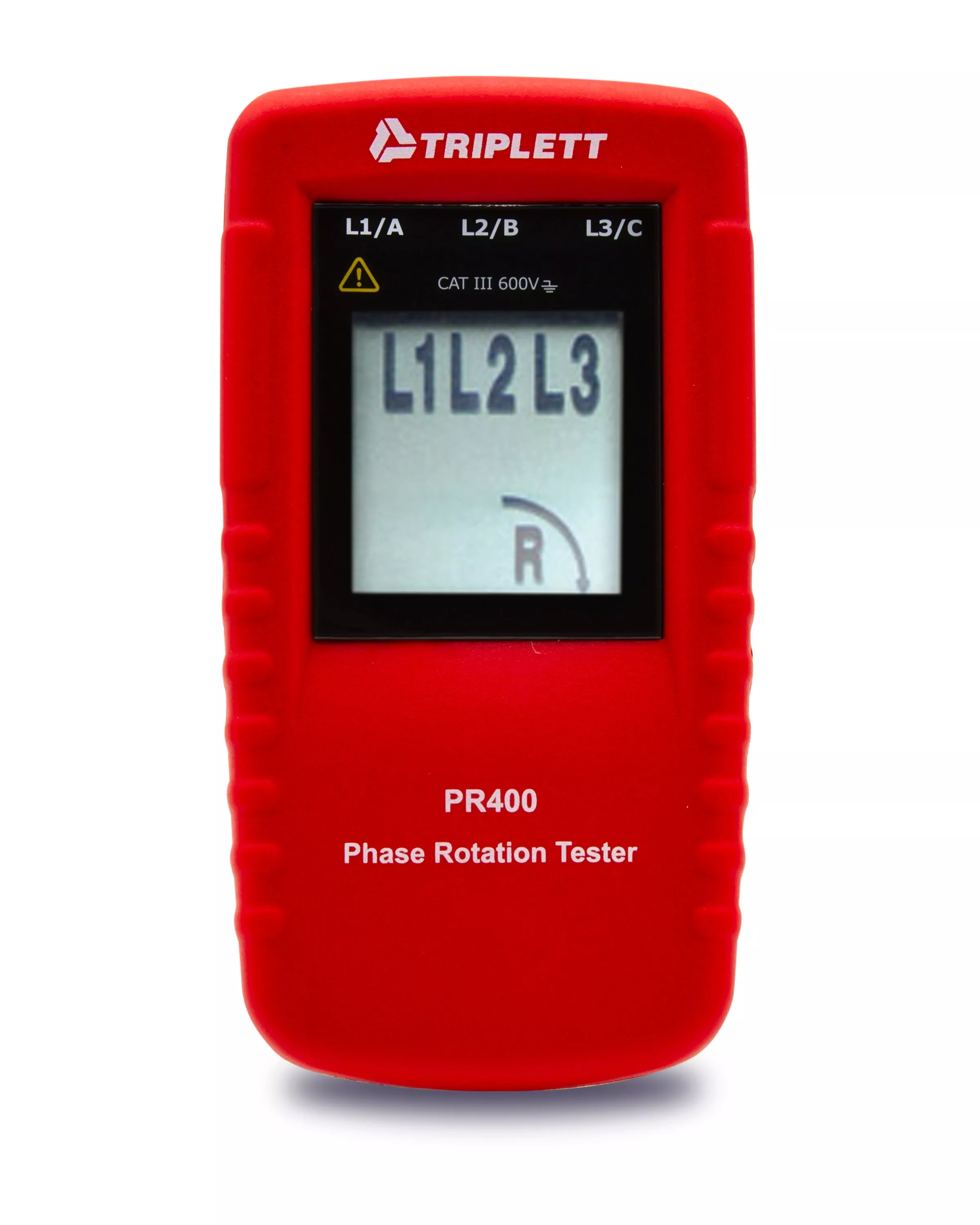

The Triplett Model PR400 determines correct phase wiring sequence (L1, L2, L3) for 3-phase system installations. Color-coded test leads are provided for connecting to the three mains phases of the system under test. Read More>
DESCRIPTION
The Triplett Model PR400 determines correct phase wiring sequence (L1, L2, L3) for 3-phase system installations. Color-coded test leads are provided for connecting to the three mains phases of the system under test. You can view results on an easy-to-read graphical display to see phase direction (clockwise/counter-clockwise) and which phases are live. Includes test leads with large color-coded alligator clips and carrying case. No battery is required. CAT III 600V safety category. 1-year warranty.
Also available as Motor and Phase Rotation Tester – PR450
CATEGORY: MOTOR & PHASE ROTATION TESTERS
Features
- Determines correct phase wiring sequence(L1, L2, L3) for 3-phase system installation
- Complete with color coded test leads with large color-coded alligator clips, and carrying case
- Cat III-600V safety category
- View results on an easy-to-read graphical display to see phase direction (clockwise/counter-clockwise) and which phases are live
- No battery required
- 1-year warranty
Specifications
| PR400 | |
| Voltage Range | 40 to 600VAC |
| Bandwidth | 15 to 400Hz |
| Safety Category | CAT III 600V |
| Dimensions | 5.1 x 2.7 x 1.3 (130 x 69 x 32mm) |
| Weight | 4.6oz (130g) |
