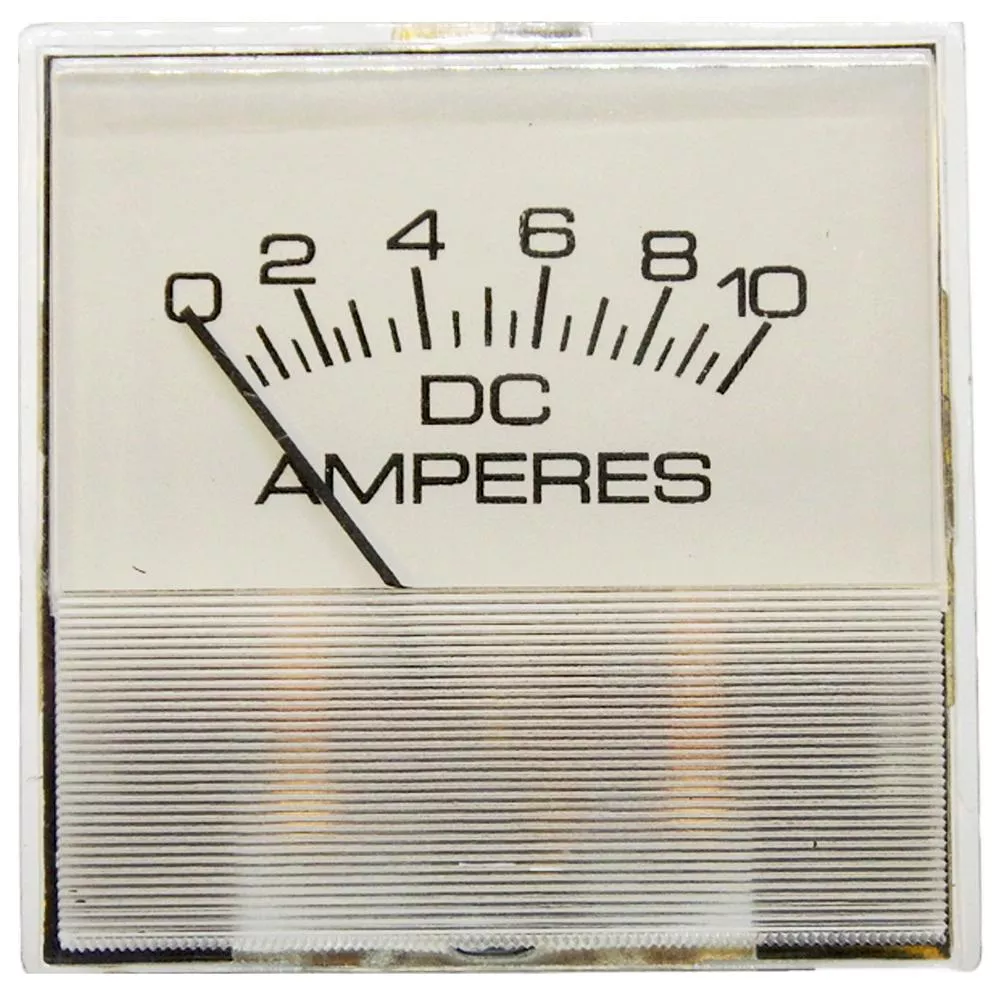

0-10 Amp Clamp-Mount Heavy-Duty DC Amp Meterfor Battery Chargers. Original Replacement forVarious 5-8 Amp Chargers. Also an easy retro-fitin any battery charger with a 2″ circular mountinghole in the panel.
Features
Polystyrene Bezel with Zinc-Plated Steel Backplate
Rugged, Moving Magnet construction
Bottom Movement – Needle pivots from bottom
Internal Shunt – Charging current flows through the meter
Accuracy: 5% of Full Scale
Includes Mounting & Connection Hardware
Made in U.S.A.
Specifications
2.375″L x 2.375″W x .540″H Bezel Outer Dimensions
2.03″ Diameter Circular Panel Mount Hole
10 Brass Stud Connectors (includes tab adapters to convert stud terminals to .250″ push-on connectors)
