Profender Basic Gas Lift Kit to suit Mazda BT-50 Series II 2011-2020
We strongly recommend you run an adjustable coil over when opting for a75mm front lift. This allows you to dial in the ride height while also accommodating varying loads (future proofs your lift if you want to add a bullbar and/or winch in future), and gives you the ability to make any adjustments as necessary come certification time.
Looking for a quick and easy lift for your BT-50? We have the answer!
Simply unbolt your factory struts and replace with these direct bolt-in front pre-assembled shocks.
Please use the drop down menu to select your model type, lift amount and the correct spring rates depending on your vehicles accessories.
Type: BT-50Model:UP/URYear:10/2011 – Mid 2020Suspension Type: Coil Spring Front / Leaf Spring RearFront Lift: 35mm – 75mm LiftRear Lift: 25mm – 50mm LiftDetail:– Twin Tube Shock Absorbers– These front struts are pre-assembled in our workshop and ready to go.
COMPONENTS

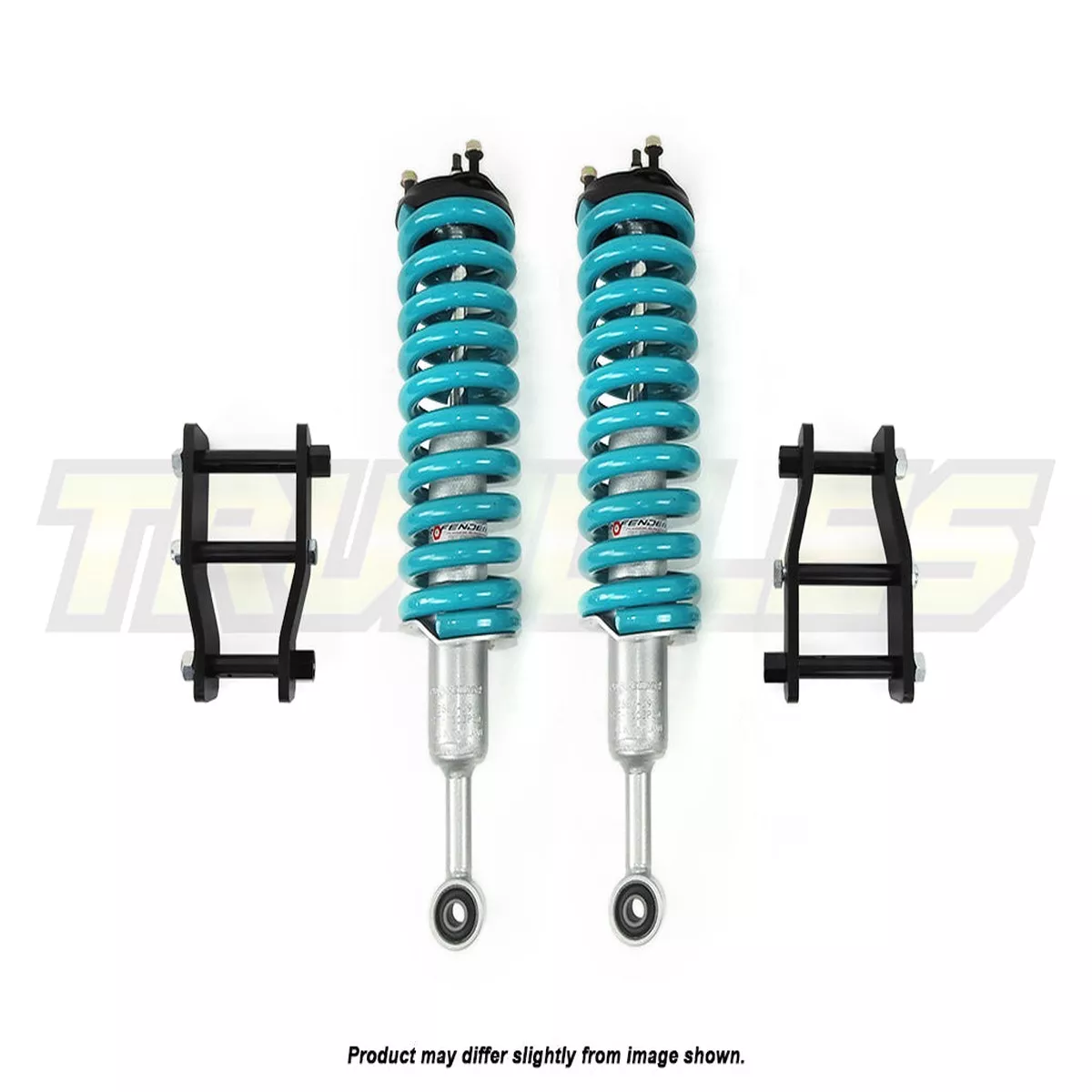

Front:2x Profender Heavy Duty Front Shocks – PF-1603A501x Pair Dobinsons Springs4x Spring Seat Spacers – see below “Included Spring Seat Spacers” section for more details2x Removable Spring Seats2x Trundles Strut Top Mounts – TOP3
Rear:1x Trundles Extended Shackles
EXTRAS
Dobinsons Rear Greasable Pins –SP59-060Trundles Bolt InDiff Drop –MAZ-007Tail Shaft Spacer Kit – TSS001Upper Control Arms –UCA3957R
IMPORTANT!
The stock Upper Control Arms can hit the chassis seam on droop in some models.With the vehicle on the ground, you can remove the top hat crush tube and shorten it around 10mm then refit. This in turn can shorten the shock extended length to give clearance – Some top hats have a longer crush tube which seems to be the cause of this.
Included Spring Seat Spacers
Profender front shocks for IFS vehicles are supplied with spring seat spacers (collars). These collars fit beneath the spring seat and can be used to increase spring preload and vehicle ride height if additional lift is required in the future.
When you order a pre-assembled strut from us, you do not need to install these collars before fitting the strut. Your struts are assembled to your requested ride height and load rating using a correctly specified coil spring.
If you are ordering shocks only to use with an existing lifted coil spring, you also do not need to install the collars, provided your current springs are correctly specified.
Installing these collars will increase the ride height of your supplied strut. As a guide, the 10 mm collar will typically provide approximately 15 mm of additional vehicle lift, although actual lift will vary depending on vehicle weight, accessories, and spring rate.
The collars are supplied separately and are not required for standard installation.
New Zealand Compliance Notice: If these collars are fitted to alter the spring seat height and increase ride height, LVV certification will be required before the vehicle can be legally used on the road. Customers should consult an LVV certifier before installation.
Shocks installed without the spring seat spacers are generally treated as direct replacement suspension components and typically do not require LVV certification.
