DETAILS

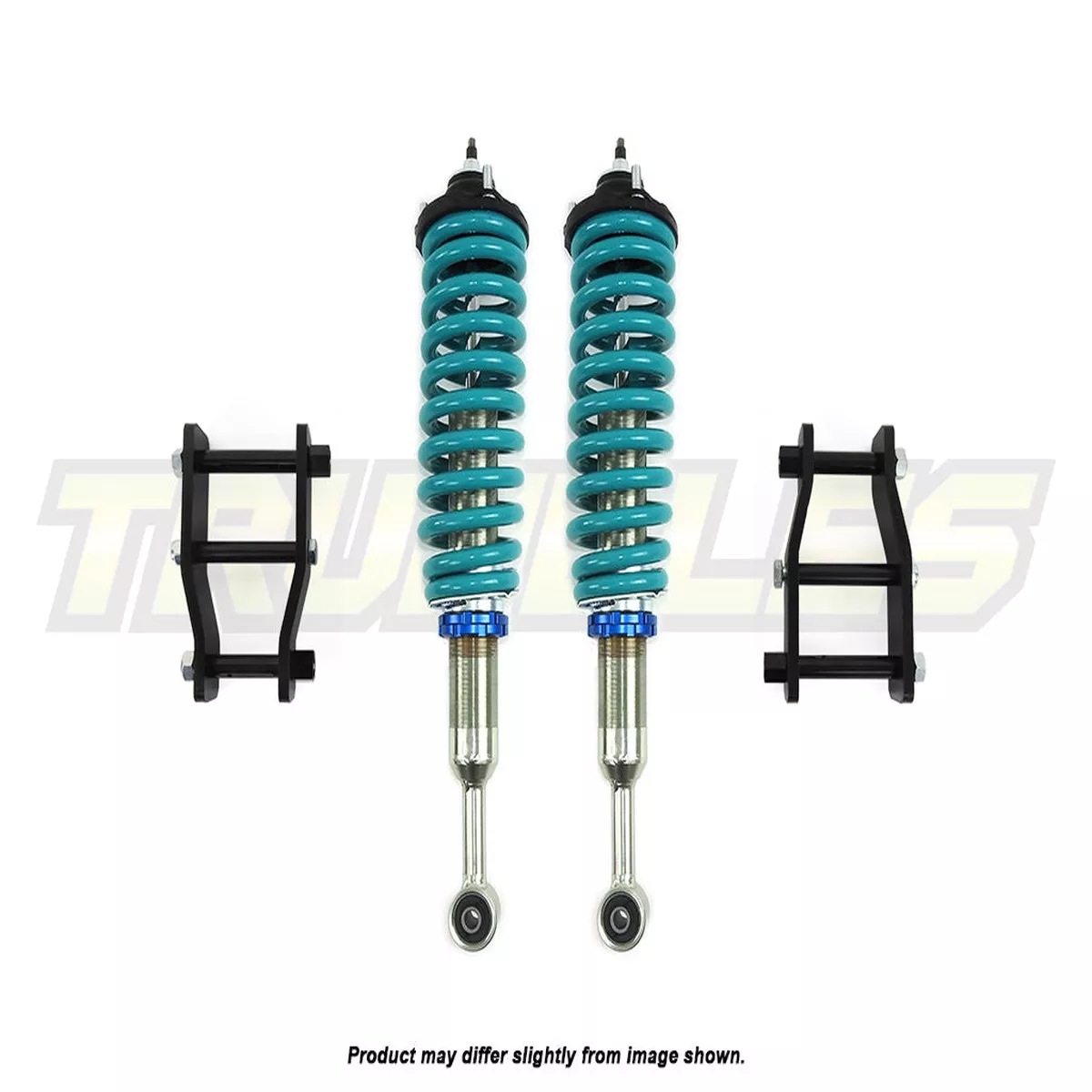

Profender Basic MG Lift Kit to suit Toyota Hilux N80 2015-Onwards
NOTE:– This kit does not suit the 2022+ Wide Track K Series Toyota Hilux SR5 Cruiser – including Rouge & GR Sport models with wider wheel track. You can view Wide Track listings here. Or if you are unsure, please email us for more details.
Please use the drop down menu to select your model type, lift amount and the correct spring rates depending on your vehicles accessories.
Type: HiluxModel: N80Year: 2015 –Suspension Type: Coil Spring Front / Leaf Spring RearFront Lift: Factory Height – 45mm LiftRear Lift:25mm LiftDetail: – Monotube Internal Reservoir Shock Absorbers– Front shocks come pre-assembled for ease of installation.
COMPONENTS
Front:2x Profender MG Front Shocks – MG-4680A501x Pair Dobinsons Front Springs4x Spring Seat Spacers – see below “Included Spring Seat Spacers” section for more details2x Removable Spring Seats2x Trundles Strut Mounts – TOP2
Rear:1x Trundles 25mm Lift Extended Shackle Kit – EXTSH-18
EXTRAS
Dobinsons Rear Greasable Pins –SP59-060Diff Drop (Arm Style) – DDHIL-ARMTrundles Upper Control Arms – UCA3881HV2Dobinsons Billet Upper Control Arms-UCA59-203K(We recommend these arms iffitting larger tyres.)Dobinsons High Clearance Inner CV Boot Kit – CV59-557KDobinsons High Clearance Outer CV Boot Kit – CV59-554KDobinsons Tail Shaft Spacer Kit (can reduce driveline vibration) – WA59-553K
Included Spring Seat Spacers
Profender front shocks for IFS vehicles are supplied with spring seat spacers (collars). These collars fit beneath the spring seat and can be used to increase spring preload and vehicle ride height if additional lift is required in the future.
When you order a pre-assembled strut from us, you do not need to install these collars before fitting the strut. Your struts are assembled to your requested ride height and load rating using a correctly specified coil spring.
If you are ordering shocks only to use with an existing lifted coil spring, you also do not need to install the collars, provided your current springs are correctly specified.
Installing these collars will increase the ride height of your supplied strut. As a guide, the 10 mm collar will typically provide approximately 15 mm of additional vehicle lift, although actual lift will vary depending on vehicle weight, accessories, and spring rate.
The collars are supplied separately and are not required for standard installation.
New Zealand Compliance Notice: If these collars are fitted to alter the spring seat height and increase ride height, LVV certification will be required before the vehicle can be legally used on the road. Customers should consult an LVV certifier before installation.
Shocks installed without the spring seat spacers are generally treated as direct replacement suspension components and typically do not require LVV certification.
