Ridetech Front HQ Series ShockWaves for 1982-2003 S10/S15/Sonoma 2WD with StrongArms

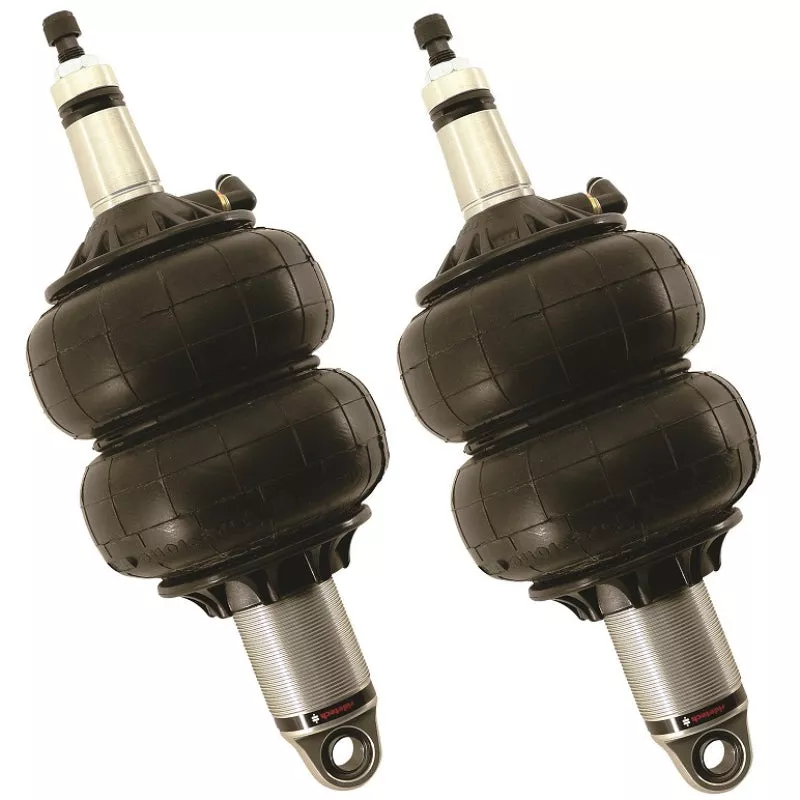

The Ridetech Front HQ Series ShockWaves, MPN 11393001, is an air suspension shock pair for a 1982-2003 Chevrolet S10, GMC S15, or Sonoma, 2WD. The shocks offer 24-position rebound adjustment through a 1.834 inch piston and 5/8 inch shaft. This kit requires Ridetech StrongArms for bolt-on installation, along with an air compressor and control system, both sold separately.
Key Features
- Front air suspension ShockWave pair, HQ Series
- 24-position rebound adjustable
- 1.834 inch piston, 5/8 inch shaft
- Requires Ridetech StrongArms
- Kit 11393001 requires a compressor and control system, sold separately
- Ships as ShockWave kit 11393001, front pair
Fitment
| Vehicle Application | Position |
|---|---|
| 1982-2003 Chevrolet S10 / GMC S15 / Sonoma 2WD with Ridetech StrongArms | Front |
Specifications
| Detail | Value |
|---|---|
| MPN | 11393001 |
| Retailer SKU | RID11393001 |
| Adjustment | 24-position rebound adjustable |
| Design | 1.834 in piston, 5/8 in shaft |
What’s Included
- 2 HQ Series front ShockWave air spring and shock units
About Ridetech
Ridetech engineers air suspension, coilovers, and chassis components in the USA and tests every system on real vehicles. Kit 11393001 is part of Ridetech’s S10 suspension lineup.
Related Parts
- Ridetech 2 Inch Drop Spindles for 1982-2002 S10
FAQ
Do I need StrongArms to install this kit?
Yes. This ShockWave kit requires Ridetech StrongArms for bolt-on installation.
Does this kit include a compressor?
No. A compressor and control system are required to operate the ShockWaves and are sold separately.
How many rebound settings does this shock have?
The shock offers 24 positions of rebound adjustment.
What is the shock design?
The ShockWaves use a 1.834 inch piston and 5/8 inch shaft.
Does this fit a GMC S15?
Yes. This kit fits the S10, S15, and Sonoma, which share the same platform.
Does this kit work with stock lower control arms?
No. This kit is designed to bolt on to Ridetech StrongArms, not stock control arms.
How many shocks come in this kit?
The kit includes a pair, 2 front ShockWave units.
Will this fit a 4WD S10?
No. This kit is for 2WD S10, S15, and Sonoma trucks only.
Installation Instructions
- Raise the vehicle and support the front on jack stands
- Remove the front wheels
- Install the Ridetech StrongArms if not already installed
- Install the ShockWaves at the StrongArms and frame mounting points
- Connect the air lines to a compressor and control system
- Torque all fasteners to the manufacturer’s specification
- Lower the vehicle, air up the system, and verify clearance through full suspension travel
