Features
This relay can be used for the following:
- FT600 / FT550 / FT500 / FT500LITE / FT450 built-in Staging Control
- FT600 / FT550 / FT500 / FT500LITE / FT450 built-in Brake Control
Fast switching speed which is perfect for PWM control and for use as a normal relay.No mechanical parts inside. Silent operation.

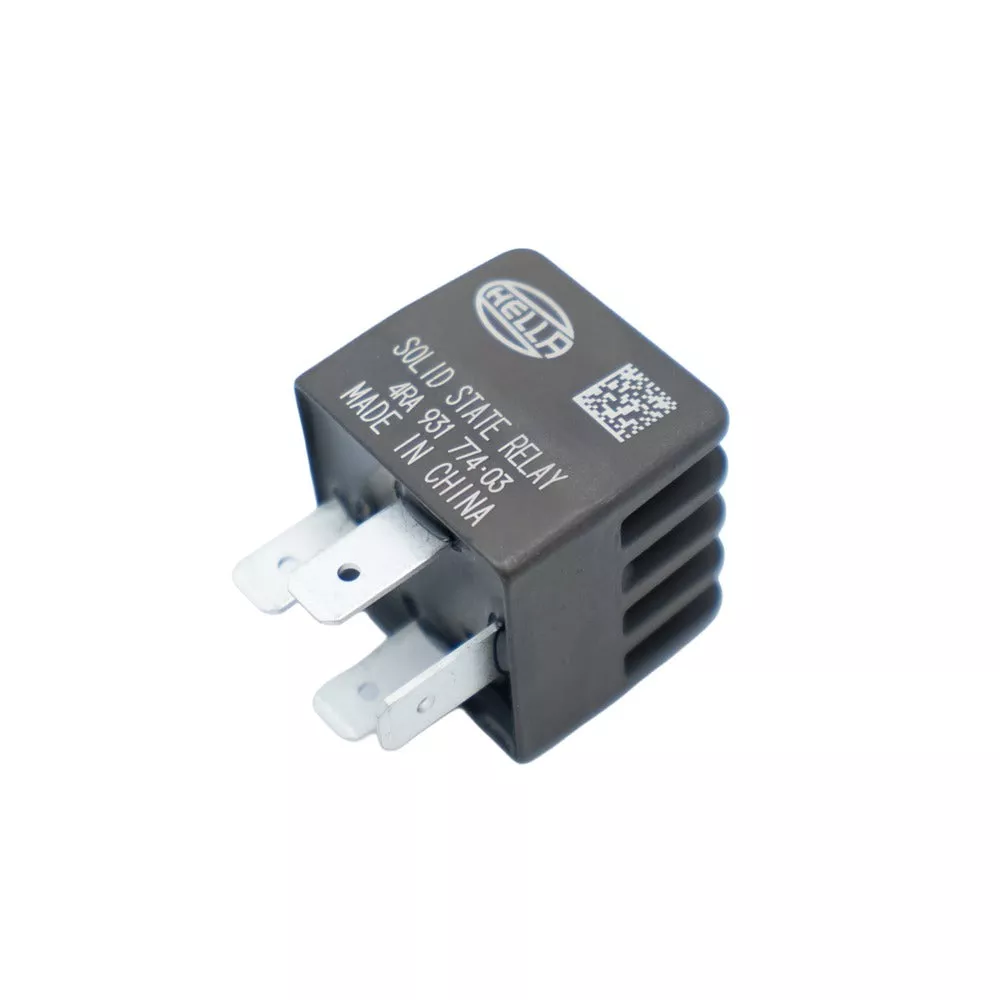

- 12V Solid State Relay
- Max Current: 20A
- PWM frequency: 0-1000Hz
Dimensions (L x W x H): 27mm x 27mm x 26mm (1.07in x 1.07in x 1.02in)
Weight: 30g
Electrical Connections:
- 30 – Switched 12V – Use fuse
- 85 – Not connected
- 86 – Trigger – FT auxiliary output (activated when switched to ground)
- 87 – Output for load – Normally Open contact – 20A:
