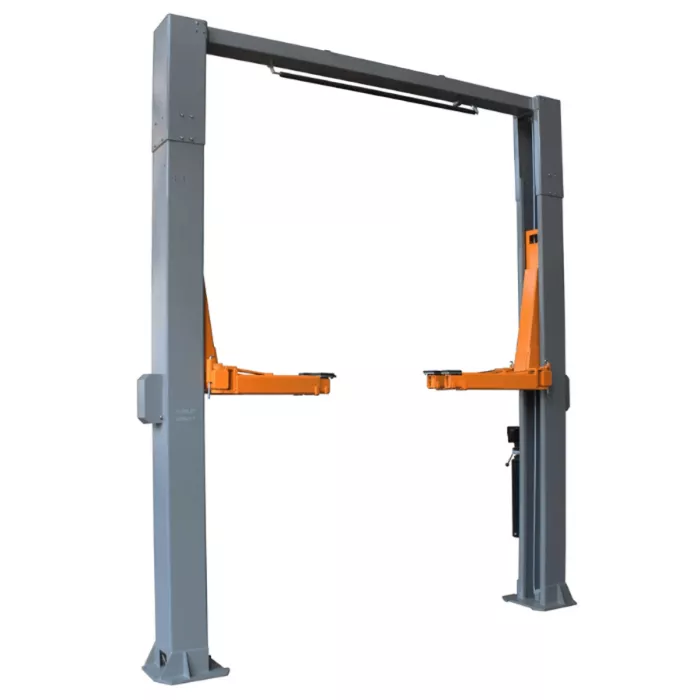

Triumph 16,000 lb Two Post Overhead Car Lift | NTO-16

Need a Lift for Heavy-Duty Trucks? The Triumph NTO-16 Lift Handles 16,000 lbs with Certified Safety and Power

Finding a reliable 2 post car lift for heavy-duty vehicles can feel like searching for a needle in a haystack. Especially when you’re dealing with inconsistent quality, unclear specs, and setups that dont meet shop safety standards. Many auto shop owners struggle to find a lift that can handle larger trucks and commercial vehicles without sacrificing ease of use or long-term durability. Whether you’re expanding your shop or upgrading your current lift, you need something that offers both strength and smart design. Above 14,000 lbs the certification requirements become non-negotiable. Lifts at this capacity that haven’t been ISO and CE tested at full load aren’t worth the structural risk, no matter the price.

Thats exactly where the Triumph NTO-16 Lift comes in. Built with a beefy 16,000 lb capacity, this lift is a true workhorse. Its engineered for high-demand environments, from commercial garages to municipal service bays. And thanks to its overhead direct-drive design, you’re getting clean floor access with maximum lifting efficiency. No chains, fewer moving parts, and less maintenance. Both ISO 9001 and CE certifications cover the structural design and the manufacturing process, with included truck adapters and mounting hardware giving you a complete out-of-the-box install package.

Certified to ISO 9001 and CE standards, this 2 post auto lift was made for professional use. Its not just about lifting heavy vehicles. Its about doing it safely, quickly, and without compromising on space. From the electrical safety shutoff to the single-point lock release, every detail was designed with shop efficiency in mind. Whether you’re working on lifted trucks, box vans, or fleet vehicles, the NTO-16 delivers peace of mind. And serious power. For shops handling the heaviest commercial work, fleet trucks, work vans, light-commercial vehicles, the NTO-16 brings full certification and structural rating into a price band that independent shops can actually afford.

Want a better fit for your space? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Triumph Lifts Worth It? breakdown. Questions? Call (470) 208-2754.

Benefits of the Triumph NTO-16 Vehicle Lift

Handles Heavy Vehicles EasilyBoost daily productivity with stronger lift capacity. The 16,000 lb capacity handles crew cabs, dually pickups, work vans, and box trucks at the upper end of typical 2-post requirements.Clean Floor AccessOverhead design maximizes floor workspace. Cables and hoses route through the crossmember, keeping the floor between posts trip-free.Low Maintenance OperationDirect-drive cylinders reduce moving parts. No secondary cable systems to fail, less to maintain across the lift’s lifespan.Safe & Efficient UseElectrical shutoff prevents lifting hazards. The overhead cutoff stops the lift before contact damage, even if operator attention slips.Easy to Set UpComes with hardware and adapters at no extra cost. Mounting bolts, truck adapters, and base plates all ship in the box, no add-on purchases.Works in High-Volume ShopsBuilt for long-lasting, rugged performance. ISO 9001 and CE certifications mean the lift’s been validated for daily commercial cycling.

Key Features of the Triumph NTO-16 16,000 lb Two-Post Overhead Car Lift You’ll Love:

16,000 lb Lifting Capacity: Built to handle diesel trucks, fleet vehicles, and large SUVs with ease. Reinforced arms and structure provide heavy-duty performance for shops that need maximum versatility. 16K capacity covers crew cabs, dually pickups, work vans, and most commercial vehicles requiring 2-post service.

Overhead Direct-Drive System: Utilizes direct-drive cylinders for smoother, more efficient lifting. No chains, no mess. The open overhead design eliminates obstructions and increases technician mobility between posts. Overhead direct-drive design is structurally simpler than older chain or cable systems and easier to maintain over years of cycling.

Single-Point Lock Release: Control both safety locks from one side of the lift. Speeds up daily operations, reduces training time for new techs, and lowers the risk of operational errors in busy shop environments. Single-point release lets one operator manage the full lift cycle without coordinating with a helper.

Electrical Override Safety Shutoff: Automatically stops the lift at maximum height to protect equipment and personnel. A critical safety feature for high-traffic bays, preventing over-extension during busy service hours. Electric override safety stops the lift before contact damage, even if operator attention slips during cycling.

Mounting Hardware & Truck Adapters Included: Includes everything you need. No surprise costs. Truck adapters are ready to go for standard and lifted vehicles, reducing downtime and boosting shop efficiency. Mounting hardware and truck adapters ship standard, no add-on purchases needed at delivery.

ISO 9001 and CE Certified: Manufactured under strict international quality standards, ensuring safe, compliant, and long-lasting operation in professional shop environments. ISO 9001 and CE certifications cover structural design and manufacturing process. Third-party validation commercial shops require.

Minimum Garage Requirements

Ceiling Height: At least 171″ (14’3″) recommended Footprint: 102″ drive-thru x 142″ overall (8’6″ x 11’10”) Concrete Thickness: Minimum 6″ (152.4 mm) Concrete Strength: Minimum 3,000 PSI compressive Electrical: 220 Volt Overall Lift Height: 165″ (13’9″) (measure before ordering)

Ceiling Height: At least 171″ (14’3″) recommended
Footprint: 102″ drive-thru x 142″ overall (8’6″ x 11’10”)
Concrete Thickness: Minimum 6″ (152.4 mm)
Concrete Strength: Minimum 3,000 PSI compressive
Electrical: 220 Volt
Overall Lift Height: 165″ (13’9″) (measure before ordering)

*Concrete must meet the manufacturer’s minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer’s responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: 2-post overhead lifts inherently require tall ceilings. Verify your overhead clearance before ordering.

Triumph NTO-16 Frequently Asked Questions

What trucks can the NTO-16 handle?

The 16,000 lb rating takes every 1-ton dually, medium-duty work trucks, ambulances, and shuttle vans, with 20″ x 20″ base plates and included truck adapters. For loaded box trucks and heavier fleet iron, the 20,000 lb NTO-20 is the step up.

How much ceiling height do I need?

The overhead beam stands 165″ (13’9″), so plan on at least 171″ (14’3″) of ceiling. The electric safety cutoff stops the carriage before a tall van roof or rack can contact the beam. Under lower ceilings, the floor-plate NT-16 carries the same 16,000 lbs at 120″ tall.

Which heavy-duty Triumph 2-post is right for me?

This NTO-16 is the clear-floor 16,000 lb pick — open floor for transmission jacks and drains under commercial trucks. The NT-16 matches the capacity under low ceilings; the NTO-20 adds 4,000 lbs; and lighter-duty shops save real money with the 11,000 lb NTO-11A.

Does the NTO-16 run on 110V power?

No — the 3 HP motor needs 220V on a dedicated circuit, standard in commercial shops. Plan the electrical before delivery.

Do I need to bolt it to the floor?

Yes — every 2-post must be anchored, and this class demands a serious slab: 6″ of 3,000 PSI concrete minimum. Verify your floor before anything else.

Should I get a 2-post or a 4-post lift?

Two-posts like this one are built for repair work — wheels hang free for brakes, suspension, and tires. For drive-on convenience at this capacity, our 16,000 lb Triumph NTR-16 4-post is the alternative. Our 2-Post vs 4-Post guide walks through the decision.

How does freight delivery work?

The lift ships as freight. You can choose curbside freight delivery or free pickup at one of Triumph’s 3 warehouse locations — enter your ZIP above to see whether one is close to you. Most orders arrive within 1-2 weeks.

Is the Triumph NTO-16 worth it?

A clear-floor 16K with an electric safety cutoff at this price undercuts the commercial brands by thousands — and it’s the format fleet techs prefer for under-truck work. See the Reviews tab above for buyer feedback, and read our Are Triumph Lifts Worth It? breakdown on The Pitstop Journal.
