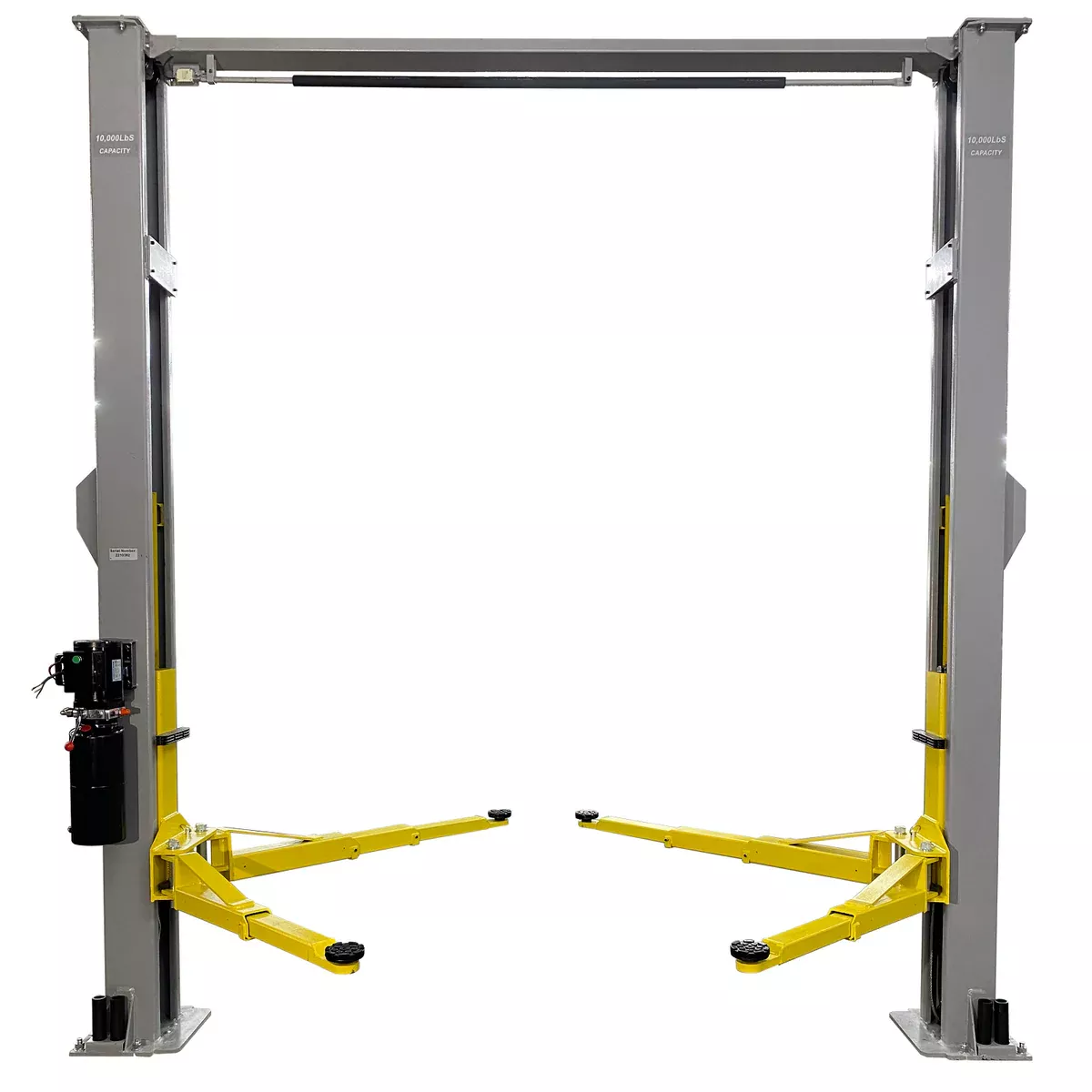

The Triumph NTO-10A is an overhead two-post lift designed for reliable, everyday lifting performance in both home garages and professional shop environments. With a 10,000 lb capacity, it’s built to handle a wide range of vehicles, from compact cars to SUVs and light-duty trucks. Engineered with a clear-floor (overhead) design and single-point lock release, the NTO-10A delivers efficient operation while keeping your workspace open and accessible.
Key Features & Benefits
- 10,000 lb lifting capacity for cars, SUVs, and light trucks
- Overhead (clear-floor) design keeps the floor area unobstructed
- Single-point lock release allows faster and easier operation
- Three-stage arms provide extended reach for various wheelbases
- Electric safety cutoff helps prevent over-travel during lifting
- Truck adapters included for increased vehicle compatibility
- Includes power unit and mounting hardware
- Fast lift time (~40 seconds) improves workflow efficiency
- Designed for home garages and light commercial use
Performance & Design
The NTO-10A is powered by a 3 HP motor with 220V operation, delivering consistent lifting performance with quicker cycle times. Its clear-floor layout improves access for undercar service such as brakes, suspension, and exhaust work. The three-stage arms allow for better positioning across a wide range of vehicles, making it a flexible solution for mixed-use garages.
Installation Requirements
- Minimum concrete thickness: 4 inches
- Concrete strength: 3,000 PSI
- Power requirement: 220V
- Indoor installation recommended
- Professional installation recommended
What’s Included
- Two-post lift structure
- Power unit / motor
- Truck adapters
- Mounting hardware
- Safety lock system
Ideal Applications
- Home garages
- Light-duty repair shops
- General automotive maintenance
- Brake, suspension, and inspection work
Why Choose the NTO-10A
The NTO-10A offers a step up in capacity and performance over entry-level lifts while keeping the design simple and easy to operate. With its clear-floor setup, faster lift speed, and wider arm reach, it’s a practical choice for users who need reliable lifting without overcomplicating their setup.
| Specifications | Details |
|---|---|
| Model | NTO-10A |
| Lift Type | Overhead Clear-Floor Two-Post Lift |
| Lifting Capacity | 10,000 lbs |
| Lifting Time | ~40 seconds |
| Lifting Height | 72″ |
| Lowered Height | 4.5″ |
| Overall Height | 145″ |
| Overall Width | 133″ |
| Distance Between Posts | 107″ |
| Drive-Thru Width | 96″ |
| Base Plate Size | 18″ x 17″ |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Truck Adapters | Yes |
| Motor | 3 HP, 220V |
| Concrete Requirement | 4″ slab, 3,000 PSI |
