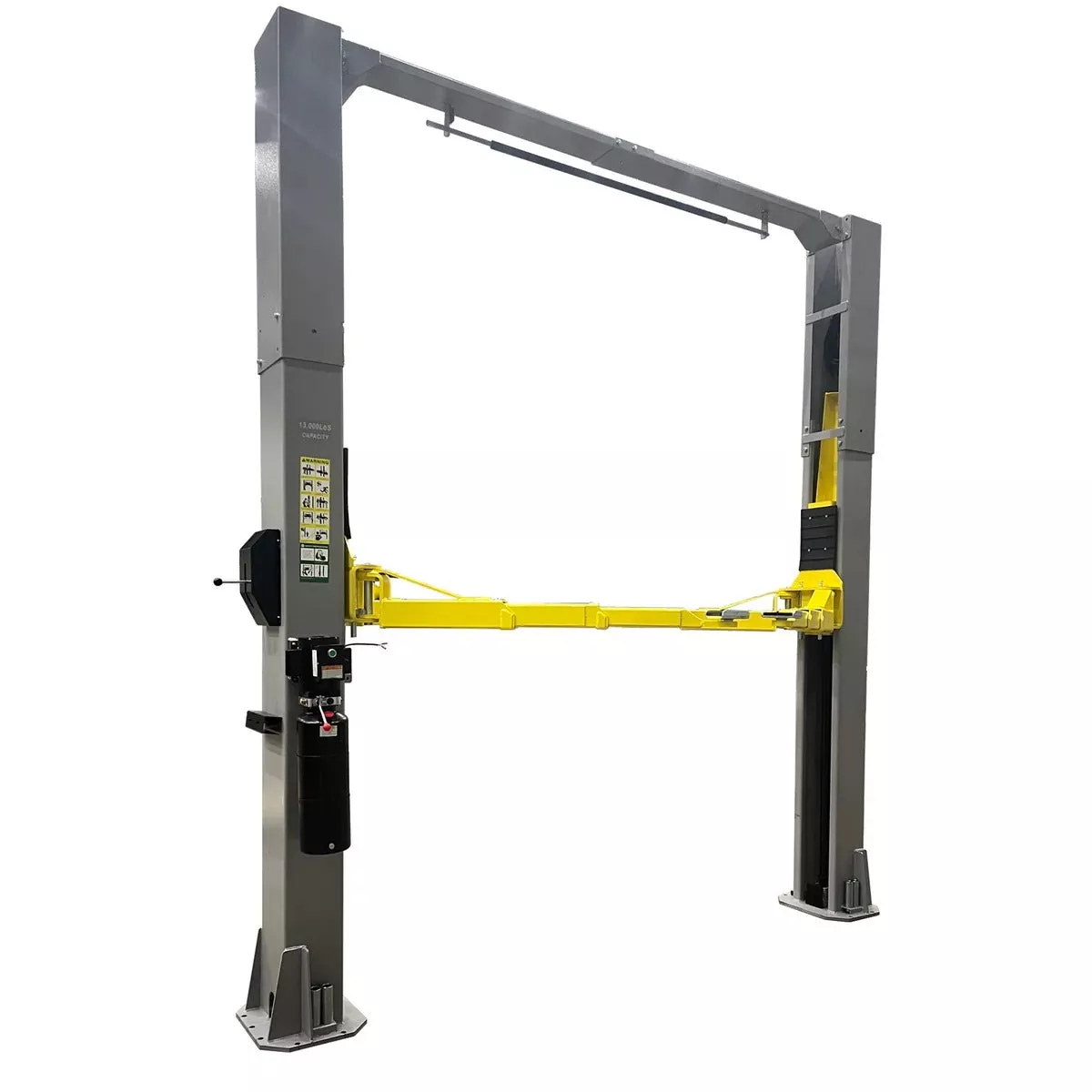

The Triumph NTO-13A is a heavy-duty overhead two-post lift built for high-capacity lifting and demanding shop environments. With a 13,000 lb lifting capacity, it’s designed to handle larger trucks, vans, and commercial vehicles while maintaining smooth and stable operation. Engineered with a direct-drive hydraulic system and clear-floor design, the NTO-13A provides reliable performance while keeping your workspace open and accessible for tools and equipment.
Key Features & Benefits
- 13,000 lb lifting capacity for cars, trucks, and commercial vehicles
- Overhead (clear-floor) design keeps floor space unobstructed
- Direct-drive hydraulic cylinders for smooth, consistent lifting
- Single-point safety lock release for quick and easy operation
- Electric safety cutoff helps prevent over-travel
- Wide drive-thru clearance for easier vehicle positioning
- Heavy-duty truck adapters included for added versatility
- Includes mounting hardware and power unit
- Built to ISO 9001 and CE standards
- Backed by a 1-year parts warranty
Performance & Design
The NTO-13A is designed for larger vehicles and higher workloads, featuring increased column spacing and lifting capacity compared to standard 9K11K lifts. The direct-drive hydraulic system minimizes maintenance while providing consistent lifting power. Its clear-floor layout allows unobstructed movement underneath the vehicle, making it ideal for transmission work, exhaust service, and full undercarriage access.
Installation Requirements
- Minimum concrete thickness: 6 inches
- Concrete strength: 4,000 PSI
- Power requirement: 220V
- Level, fully cured concrete required
- Indoor installation recommended
What’s Included
- Two-post lift structure
- Direct-drive hydraulic system
- Power unit / motor
- Truck adapters
- Mounting hardware
- Safety lock system
Ideal Applications
- Commercial repair shops
- Fleet service facilities
- Heavy-duty vehicle maintenance
- Shops working on trucks, vans, and larger vehicles
Why Choose the NTO-13A
The NTO-13A delivers higher lifting capacity, wider spacing, and stronger construction than lower-capacity models, making it a strong choice for shops that regularly handle heavier vehicles and need dependable performance day after day.
| Specifications | Details |
|---|---|
| Model | NTO-13A |
| Lift Type | Overhead Clear-Floor Two-Post Lift |
| Lifting Capacity | 13,000 lbs |
| Lifting Time | ~55 seconds |
| Lifting Height | 74″ |
| Lowered Height | 5″ |
| Overall Height | 162″ |
| Overall Width | 150″ |
| Distance Between Posts | 122″ |
| Drive-Thru Width | 109″ |
| Base Plate Size | 20″ x 20″ |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Truck Adapters | Yes |
| Motor | 3 HP, 220V |
| Concrete Requirement | 6″ slab, 4,000 PSI |
